Oil line removal and installation - AR18.30-P-6850RKA
ENGINE 276.8 in MODEL 231

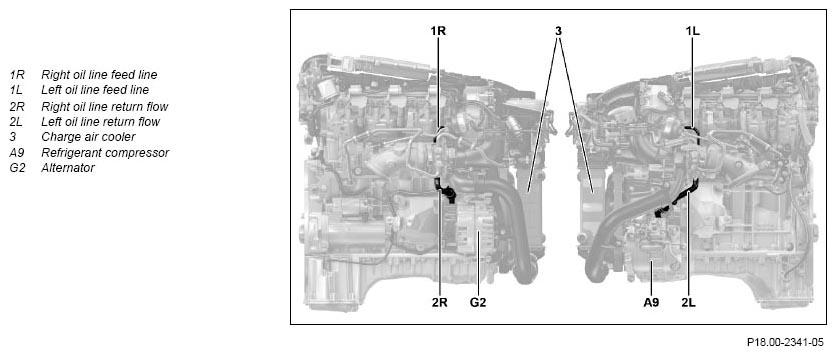

Shown on ENGINE 276.825
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Open engine hood and raise to vertical position | ||
| 2 | Detach upper engine cover | ||
| 3 | Remove left-hand air filter housing | For removal of the left feed line oil line (2L) and the left return flow oil line (1L). | AR09.10-P-1150RKA |
| 4 | Remove right air filter housing | For removal of the right feed line oil line (2R) and the right return flow oil line (1R). | AR09.10-P-1150RKA |
| 5 | Remove left soundproofing over the left rail | For removal of the left feed line oil line (2L) and the left return flow oil line (1L). | |
| 6 | Remove right soundproofing over the right rail | For removal of the right feed line oil line (2R) and the right return flow oil line (1R). | |
| 7 | Detach left (1L) or right (1R) feed line oil line from ATL and close off openings using suitable grommets | ||
| *BA09.40-P-1004-01W | |||
| Figure | |||
| 8 | Detach left (1L) or right (1R) feed line oil line from crankcase and close off openings using suitable grommets | ||
| *BA09.40-P-1005-01W | |||
| Figure | |||
| 9 | Remove left (1L) or right (1R) oil lines feed lines | ||
| 10 | Detach charge air cooler (3); place with attached coolant lines to one side and secure against falling down | For removal of the right return flow oil line (2L) and the left return flow oil line (2R). | AR09.41-P-6819RKA |
| 11 | Slacken poly-V belt and remove at alternator (G2) | When removing the right oil line return flow (2R). | AR13.20-P-0001RKA |
| 12 | Slacken poly-V belt and remove at A/C compressor (A9) | When removing the left oil line return flow (2L). | AR13.20-P-0001RKA |
| 13 | Detach A/C compressor (A9), place with attached lines to one side and secure against falling down | When removing the left oil line return flow (2L). |
*BA83.55-P-1001-01M |
| 14 | Detach alternator (G2), place with attached lines to one side and secure against falling down | When removing the right oil line return flow (2R). | AR15.40-P-5032RKA |
| 15 | Detach right return flow oil line (2R) from ATL and close off openings using suitable grommets | When removing the right oil line return flow (2R). |
|
| *BA09.40-P-1006-01W | |||
| Figure | |||
| 16 | Detach right return flow oil line (2R) from crankcase and close off openings using suitable grommets | When removing the right oil line return flow (2R). |
|
| *BA09.40-P-1007-01W | |||
| Figure | |||
| 17 | Remove right-hand right return oil line (2R) | When removing the right oil line return flow (2R). | |
| 18 | Detach left return flow oil line (2L) on ATL | When removing the left oil line return flow (2L). |
*BA09.40-P-1006-01W |
| 19 | Detach left return flow oil line (2L) on crankcase and remove | When removing the left oil line return flow (2L). |
*BA09.40-P-1007-01W |
| 20 | Install in the reverse order | ||
| 21 | Check engine oil level; correct if necessary | ||
| AP18.00-P-0101CWZ | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 22 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1004-01W | Bolt, oil feed line to turbocharger | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1005-01W | Bolt, oil feed line to cylinder head | Nm | 14 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1006-01W | Bolt, oil return flow line to turbocharger | Nm | 11 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1007-01W | Bolt, oil return line to crankcase | Nm | 9 |
REFRIGERANT COMPRESSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA83.55-P-1001-01M | Bolt, refrigerant compressor to timing case/crankcase/engine support | Nm | 20 |
