Remove/install air conditioner housing - AR83.30-P-5200RK
MODEL 231
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||

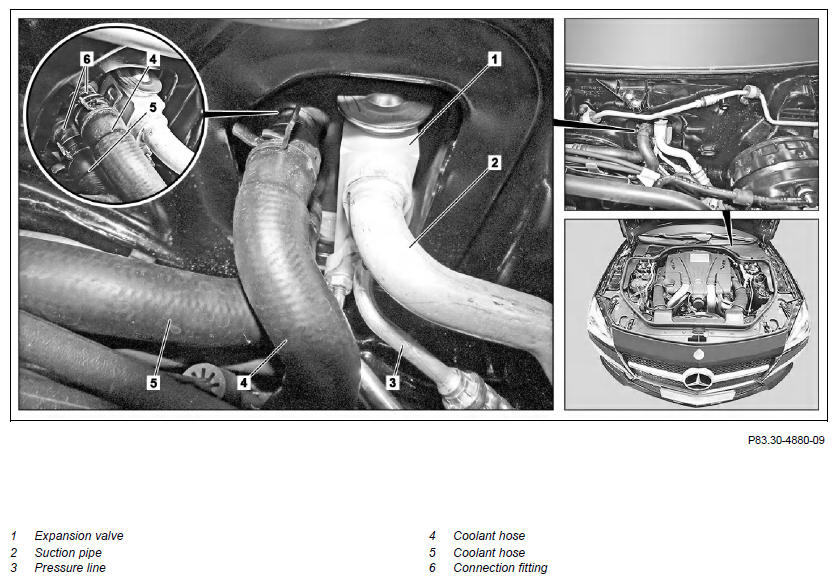

| 1 | Detach suction line (2) and pressure line (3) from expansion valve (1) | AR83.30-P-5520RK | |
| 2 | Release pressure in cooling system | ||
| 3 | Pinch off coolant hoses (4, 5) with pinch-off pliers | Figure | |
| 4 | Remove coolant hoses (4, 5) from connection fittings (6) at air conditioner housing (A32) | ||
| 5 | Seal connection fitting (6) on air conditioner housing (A32) | The connection fittings (6) must be sealed upon removing the air conditioner housing (A32). Otherwise the vehicle interior may be soiled by escaping coolant. |
|
| 6 | Remove dashboard | AR68.10-P-1000RK | |
| 7 | Remove jacket tube | AR46.10-P-0400RK | |

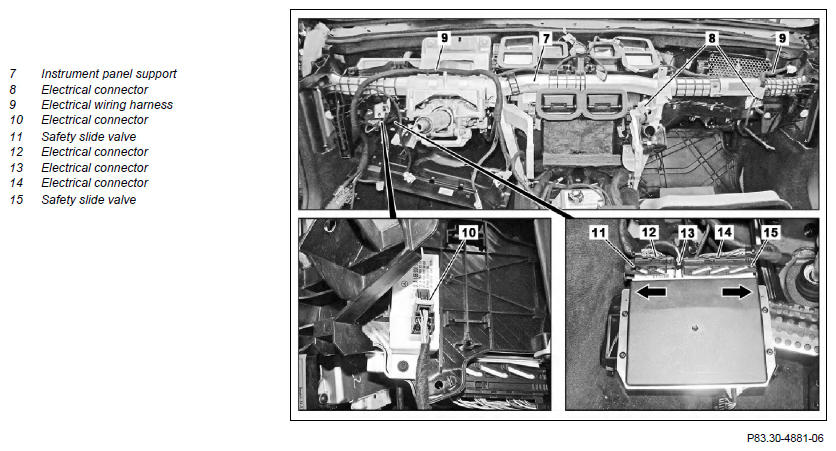

| 8 | Disconnect electrical connector (10) | ||
| 9 | Disconnect electrical connectors (12, 14) | ||
| 10 | Disconnect Electrical connection (13) | ||
| 11 | Disconnect electrical connections (8) | ||
| 12 | Expose electrical wiring harnesses (9) of instrument panel support (7) | ||

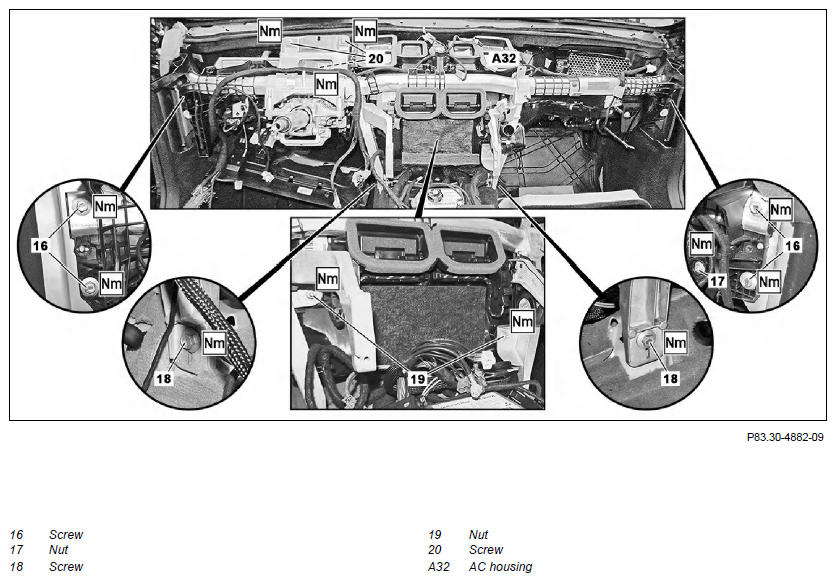

| 13 | Unscrew nuts (17, 19) | ||
| 14 | Remove screw/bolts (16, 18, 20) | *BA68.10-P-1001-02D | |
| *BA68.10-P-1002-02D | |||
| *BA68.10-P-1003-02D | |||
| 15 | Remove instrument panel support (7) | ||

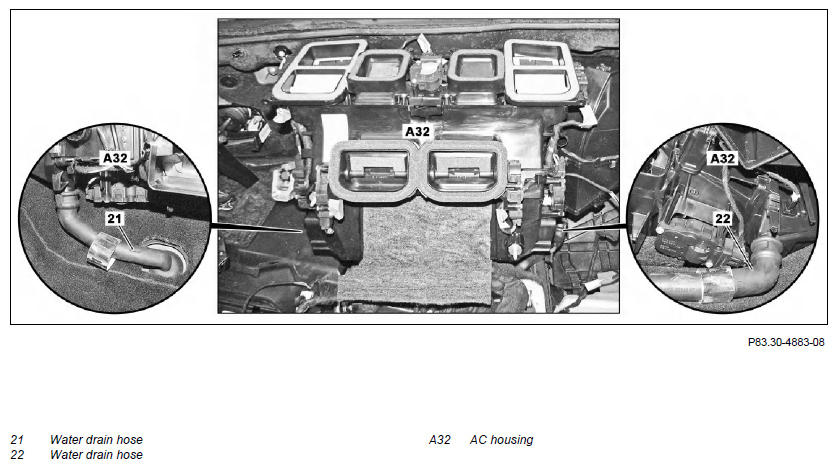

| 16 | Remove water drain hoses (21, 22) from air conditioner housing (A32) | ||

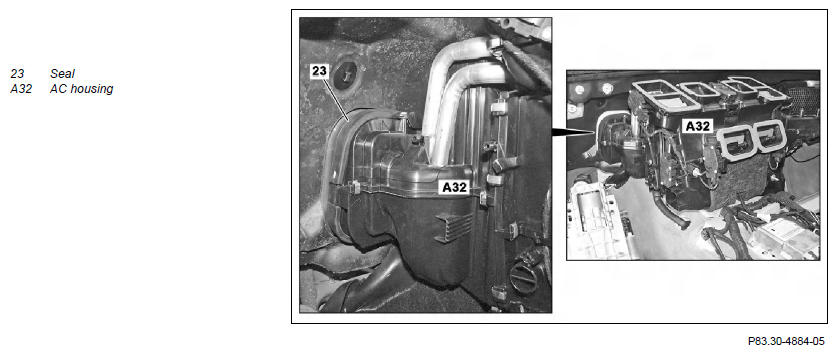

| 17 | Remove air conditioner housing (A32) | Carefully lift out air conditioner housing (A32). Otherwise components in the vehicle interior may be damaged. Use aid of helper. |
|
| 18 | Install in the reverse order | ||
| 19 | Fill coolant, bleed cooling system and check it for leaks | Model 231 with engine 279 | AR09.41-P-6834RKC |
| Model 231 with engine 279 | AR20.00-P-1142RKC | ||
| Model 231 with engine 157, 276, 278 | AR20.00-P-1142RK |
CROSSMEMBER BELOW INSTRUMENT PANEL
| Number | Designation | Model 231 | |
|---|---|---|---|
| BA68.10-P-1001-02D | Bolt, crossmember to A-pillar | Nm | 25 |
CROSSMEMBER BELOW INSTRUMENT PANEL
| Number | Designation | Model 231 | |
|---|---|---|---|
| BA68.10-P-1002-02D | Bolt, crossmember to firewall below windshield | Nm | 25 |
CROSSMEMBER BELOW INSTRUMENT PANEL
| Number | Designation | Model 231 | |
|---|---|---|---|
| BA68.10-P-1003-02D | Screw/bolt, crossmember strut to transmission tunnel | Nm | 25 |
