Remove/install components for exhaust system - AR49.10-P-7100RKC

ENGINE 279 in MODEL 231

MODIFICATION NOTES

24.03.2016 Screw, flange connection exhaust system at front of exhaust manifold/exhaust gas turbocharger ENGINE 279 in MODEL 231 BA49.10-P-1001-01AM

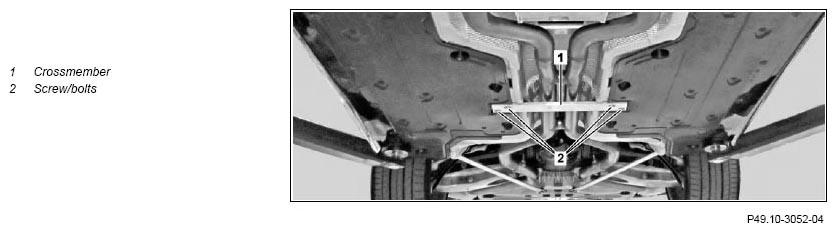

Fig 1: Exhaust System Remove/Install Components (1 Of 3)
G11128926Courtesy of MERCEDES-BENZ USA

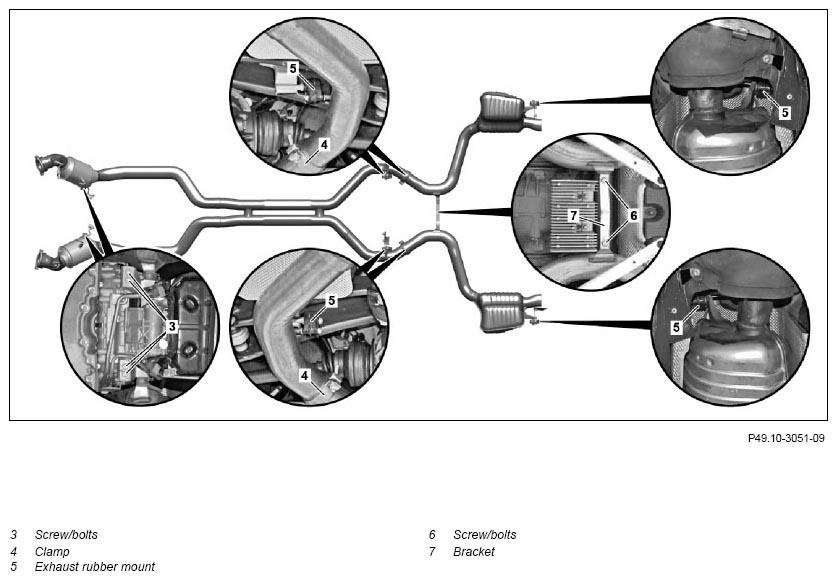

Fig 2: Exhaust System Remove/Install Components (2 Of 3)
G11128927Courtesy of MERCEDES-BENZ USA

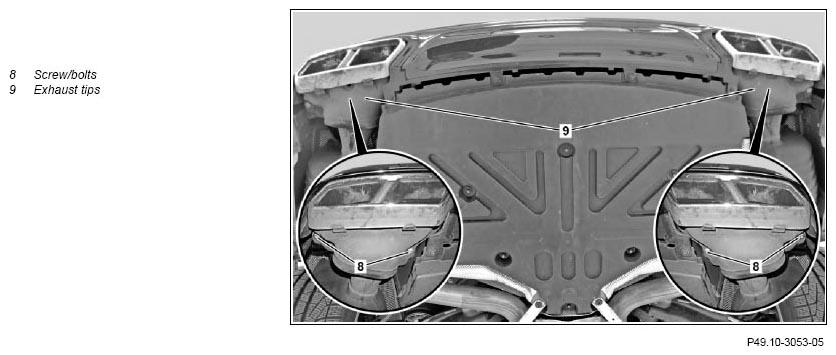

Fig 3: Exhaust System Remove/Install Components (3 Of 3)
G11128928Courtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
DANGER Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
NOTES Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Remove/install front exhaust system
1 Remove bottom engine compartment paneling INSTALLATION IMPORTANT Only install lower engine compartment paneling after the performing an engine test run and leak test. AR61.20-P-1105RK
2 Disconnect electrical connection for LH oxygen sensor upstream of catalytic converter (G3/3x1), on the right upstream of catalytic converter (G3/4x1), on the left downstream of catalytic converter (G3/5x1) and on the right downstream of catalytic converter (G3/6x1) and expose feed lines   AR07.52-P-5303RKC
3 Tighten screw/bolts (2) at crossmember (1) TORQUE SPECIFICATION Rear crossmember to body *BA61.10-P-1001-01H
4 Remove clamps on ATL flange connection TORQUE SPECIFICATION Bolt, flange connection for front exhaust system to exhaust manifold/turbocharger *BA49.10-P-1001-01AM
5 Remove screw/bolt (3) TORQUE SPECIFICATION Bolt, bracket for front exhaust system to exhaust system/transmission *BA49.10-P-1002-01AM
6 Unfasten clamps (4) and push to the rear TORQUE SPECIFICATION Nut, pipe clamp for center exhaust system to rear exhaust system *BA49.10-P-1004-01AM
7 Unhook exhaust rubber mounts (5) and remove front exhaust system IMPORTANTRemoval:  For the front exhaust system only unhook the center exhaust rubber mount (5)
IMPORTANT Apply lubricating paste to exhaust rubber mounts (5).
Antifriction paste, rubber parts 2.5 kg, DBL 6867.00
*BR00.45-Z-1002-06A
  Remove/install rear exhaust system
8 Remove exhaust tips (9) IMPORTANTRemoval:  To do this remove screw/bolts (8) and pull exhaust tips (9) to the rear.
9 Remove screw/bolts (6) and remove bracket (7) TORQUE SPECIFICATION Nut, cross connection for exhaust system left rear to right rear *BA49.10-P-1006-01AM
10 Unfasten clamps (4) and push to the rear TORQUE SPECIFICATION Nut, pipe clamp for center exhaust system to rear exhaust system *BA49.10-P-1004-01AM
11 Unhook exhaust rubber mounts (5) and remove front exhaust system IMPORTANTRemoval:  For the rear exhaust system only unhook the rear exhaust rubber mount (5)
IMPORTANT Apply lubricating paste to exhaust rubber mounts (5).

    Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 *BR00.45-Z-1002-06A
CLEAN Clean
12 Remove combustion and corrosion residue at separating points
INSPECT Check
13 Check rubber mount (5) for signs of wear and damage, replace if necessary
14 Install in the reverse order
INSPECT Check
15 Check installation position and unobstructed movement of all components of the exhaust system
DANGER
16
Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.
Perform an engine test run and check exhaust system for leaktightness
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
EXHAUST SYSTEM

Number Designation Engine 279 in model 231
BA49.10-P-1001-01AM Bolt, flange connection for front exhaust system to exhaust manifold/turbocharger Nm 23
EXHAUST SYSTEM

Number Designation Engine 279 in model 231
BA49.10-P-1002-01AM Bolt, bracket for front exhaust system to exhaust system/transmission M8 Nm 25
EXHAUST SYSTEM

Number Designation Engine 279 in model 231
BA49.10-P-1004-01AM Nut, pipe clamp for center exhaust system to rear exhaust system M8 Nm 35
EXHAUST SYSTEM

Number Designation Engine 279 in model 231
BA49.10-P-1006-01AM Nut, cross connection for exhaust system left rear to right rear Nm 20
FRAME FLOOR ASSEMBLY

Number Designation Model 231
BA61.10-P-1001-01H Rear crossmember to body Nm 55
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 A 000 989 01 60
