Remove/install master brake cylinder - AR42.10-P-0300RK

MODEL 231

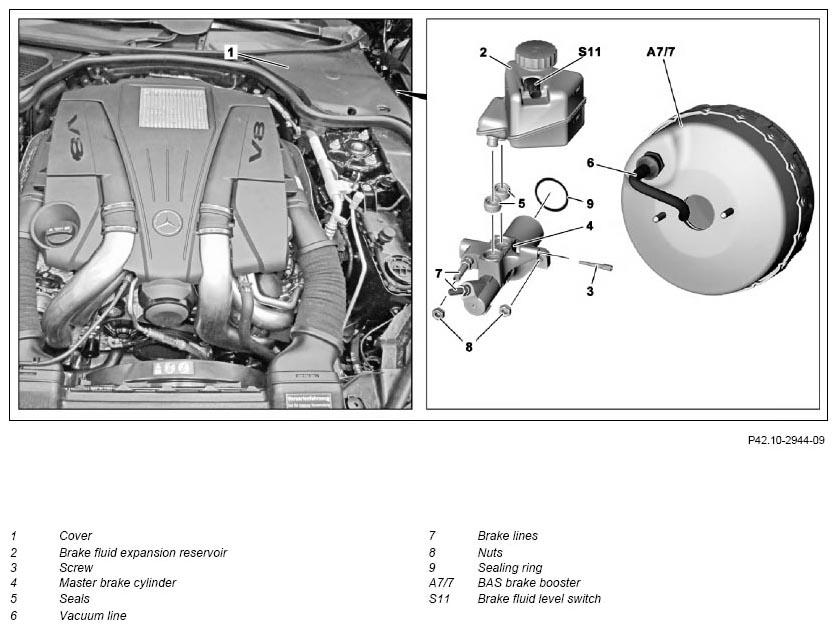

Fig 1: Master Brake Cylinder Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Notes on externally invisible brake fluid loss		AH42.10-P-9406-02V
	Brake fluid notes		AH42.50-P-0001-01A
1	Eliminate vacuum in BAS brake booster (A77)	To do this, press the brake pedal several times with the engine switched off.
2	Open engine hood
3	Remove cover (1) over brake fluid expansion reservoir (2)
4	Suction off brake fluid from brake fluid expansion reservoir (2)
5	Disconnect electrical connector from brake fluid level switch (S11)
6	Remove bolt (3)
7	Detach brake fluid expansion reservoir (2) from master brake cylinder (4)	Seal connections on master brake cylinder (4). Foreign objects can otherwise enter the master brake cylinder (4) and cause damage. Replace seals (5). Record plug	Figure
8	Pull vacuum line (6) with check valve out of BAS brake booster (A7/7)
9	Label brake lines (7) according to connections
10	Detach brake lines (7) from master brake cylinder (4)	Seal line connections on master brake cylinder (4). Foreign objects can otherwise enter the master brake cylinder (4) and cause damage. Pay attention to the markings on the brake lines (7). Retaining screw, brake line to master brake cylinder	*BA42.10-P-1003-04L
		Box wrench bit	Figure
		Record plug	Figure
11	Unscrew nuts (8) from BAS brake booster (A7/7)	Nut, master brake cylinder to brake booster	*BA42.10-P-1001-05K
12	Take out master brake cylinder (4)	Do not tilt the master brake cylinder (4); pull it forward and in a straight line out of the BAS brake booster (A7/7). Otherwise the push rod will be pressed out of its axial position. Replace sealing ring (9).
13	Install in the reverse order
14	Bleed brake system		AR42.10-P-0010RK
	Check
15	Check brake system for leaks		AR42.10-P-0100-01V
16	Carry out brake test on the test stand
			AP42.00-P-4290BA

MASTER BRAKE CYLINDER

Number	Designation		MODEL 231
BA42.10-P-1001-05K	Nut, master brake cylinder to brake booster	Nm	25

BRAKE LINES, BRAKE HOSES

Number	Designation			MODEL 231
BA42.10-P-1003-04L	Retaining screw, brake line to master brake cylinder	Ø4.75	Nm	18
		Ø6	Nm	18
		Ø8	Nm	24

Fig 2: Indentifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
