Remove/install electric parking brake control unit - AR42.20-P-0610RK
MODEL 231
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) | ||
| 2 | Remove right side paneling in trunk | AR68.30-P-4800RK | |

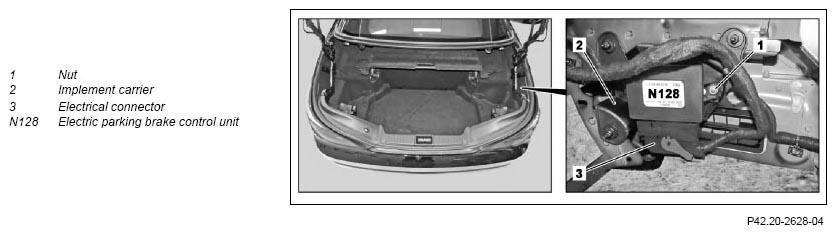

| 3 | Detach electric parking brake control unit (N128) from equipment carrier (2) | ||
| 4 | Disconnect electrical connector (3) and remove electric parking brake control unit (N128) | ||
| 5 | Install in the reverse order | ||
| 6 |
Perform initial startup of electric parking brake control unit (N128) using Star Diagnosis | Only when replacing the electric parking brake control unit (N128). | AD00.00-P-2000-04A |
