Remove paneling in trunk - AR68.30-P-4600LF
MODEL 222.0/1/9
Shown on vehicle with CODE 282 (Ski bag)
Shown on vehicle with CODE ME05 (HYBRID DRIVE 80KW-VARIANT (INCLUDING PLUGIN))
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open luggage compartment lid | ||
| 2 | Remove refrigerator box in trunk | MODEL 222.0/1/9 with CODE 308 (Refrigerated compartment) |
|
| 3.1 | Unscrew bolts (8) from brackets (7) | MODEL 222.0/9, 222.1 (except 222.163) | |
| 3.2 | Unscrew bolts (18) from brackets (19) | MODEL 222.163 | |
| 4 | Remove trunk floor lining (1) | ||

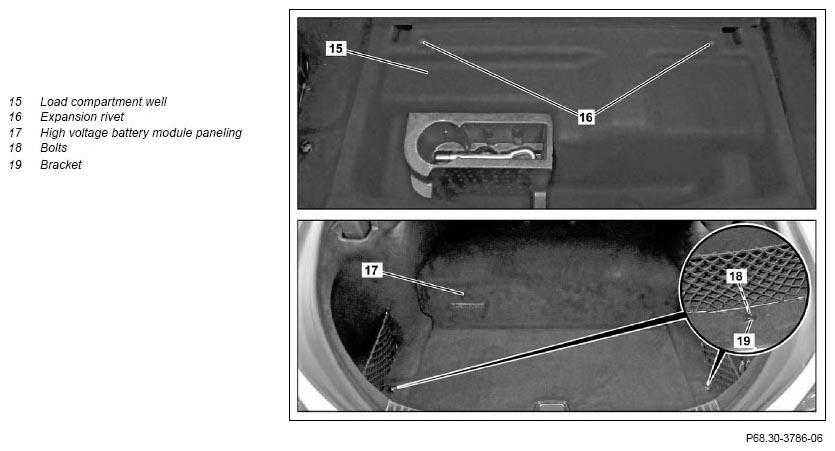

| 5 | Remove expansion rivets (16) | ||
| 6 | Remove load compartment well (15) | ||
| 7 | Remove expansion rivets (9) | ||
| 8 | Unclip rear center section paneling (2) upward | ||

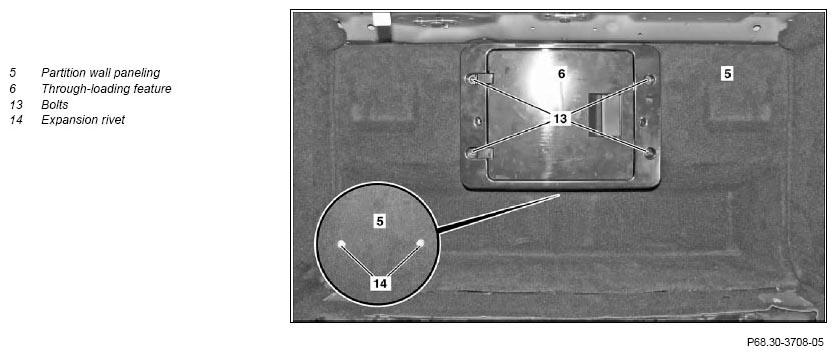

| 9.1 | Remove expansion rivet (14) from partition wall panel (5) | MODEL 222.0/1/9 without CODE 282 (Ski and snowboard bag) without CODE 308 (Refrigerated compartment) |
|
| 9.2 | Unscrew bolts (13) from through-loading feature (6), remove through-loading feature (6) | MODEL 222.0/1/9 with CODE 282 (Ski and snowboard bag) with CODE 308 (Refrigerated compartment) |
|
| 10 | Remove partition wall panel (5) | ||

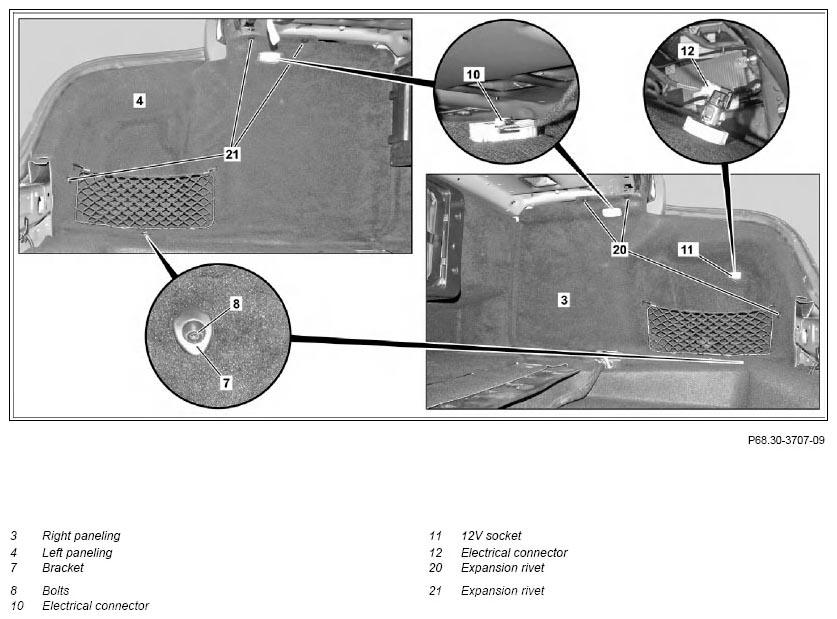

| 11 | Remove expansion rivet (21) from left paneling (4) | ||
| 12 | Remove left paneling (4) and disconnect electrical connector (10) | ||
| 13 | Remove left paneling (4) | ||
| 14 | Remove high voltage battery module paneling (17) | MODEL 222.163 | |
| 15 | Remove expansion rivet (20) from right paneling (3) | ||
| 16 | Unclip cover with trailer hitch switch from right paneling (3) | MODEL 222.0/1 with CODE 550 (Trailer coupling) |
|
| 17 | Disconnect electrical connectors from trailer hitch switch | MODEL 222.0/1 with CODE 550 (Trailer coupling) |
|
| 18 | Remove right paneling (3) and disconnect electrical connectors (10, 12) | ||
| 19 | Remove right paneling (3) | ||
| 20 | Install in the reverse order |
