Remove/install overhead control panel control unit - AR82.20-P-1000LF
MODEL 205 (except 205.4)
MODEL 217.3
MODEL 222
MODEL 253
Shown on MODEL 222
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of ATA [EDW]/tow-away protection/interior protection control unit | Model 205 (except 205.4), 222 with code 882 (Interior motion sensor) Model 217.3 with code 882 (Interior motion sensor) Model 253 with code 882 (Interior motion sensor) When installing new overhead control panel control unit (N70). |
|
| Model 205 (except 205.4), 222 with code 882 (Interior motion sensor) Model 217.3 with code 882 (Interior motion sensor) |
AD00.00-P-2000-04B | ||
| 2 | Switch off ignition and remove transmitter key | ||

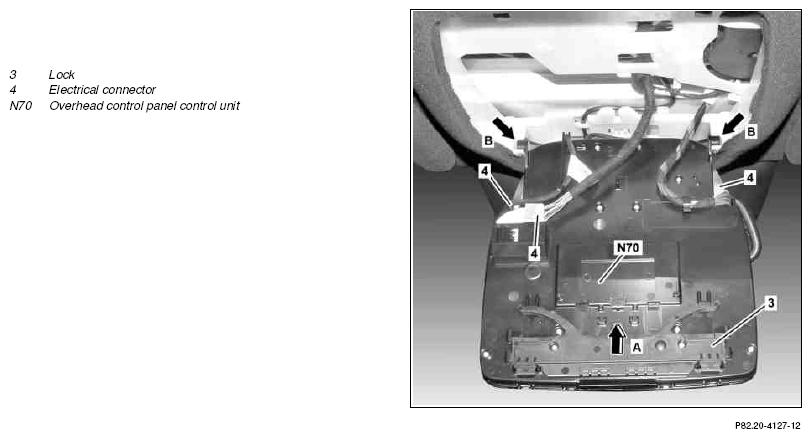

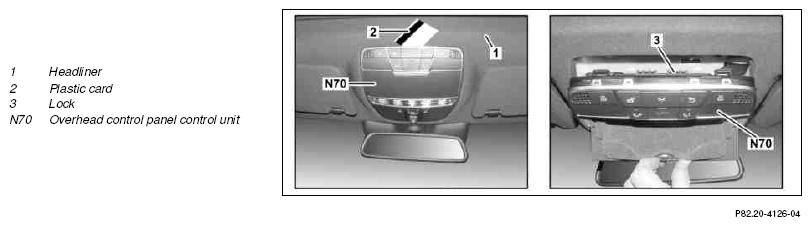

| 3 | Insert a plastic card (2) or a similar object (approx. 2 mm high) in a central position between headliner (1) and overhead control panel control unit (N70), unlock the lock (3) in direction of travel (arrow A) and remove overhead control panel control unit (N70) | ||
| 4 | Release and disconnect all electrical connectors (4) from overhead control panel control unit (N70) | ||
| 5 | Unhook overhead control panel control unit (N70) from bracket (arrows B) and remove | ||
| 6 | Install in the reverse order |
