Remove/install COMAND display - AR82.85-P-7429LF

MODEL 217, 222

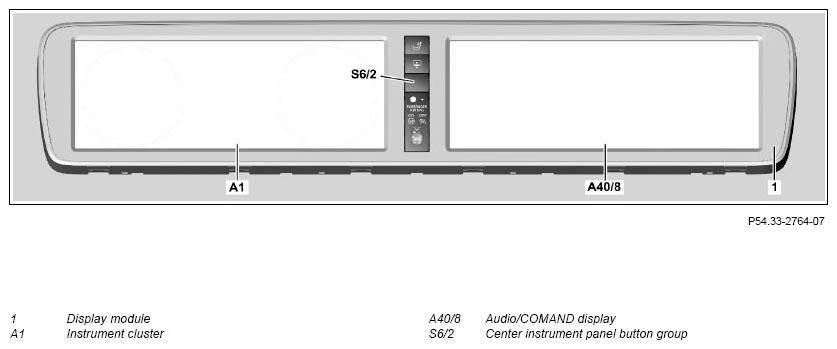

Fig 1: COMAND Display Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

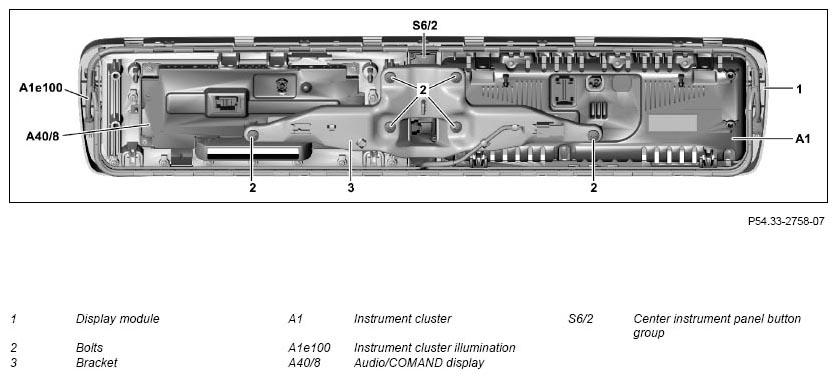

Fig 2: COMAND Display Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

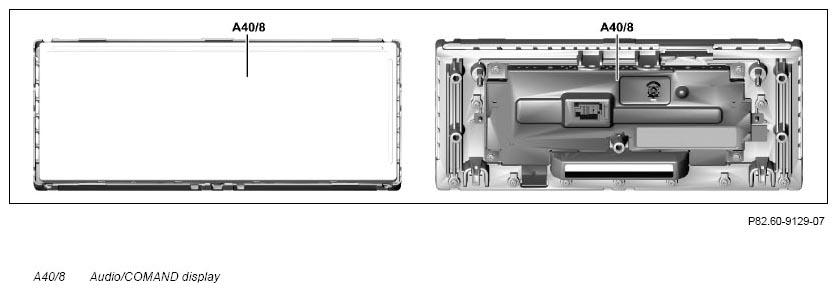

Fig 3: COMAND Display Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove display module (1)		AR54.30-P-6023LF
2	Unclip instrument cluster illumination (A1e100) from display module (1)
3	Unscrew bolts (2) and remove bracket (3) with instrument cluster illumination (A1e100)
4	Remove Audio/COMAND display (A40/8)
5	Install in the reverse order
