Overview of system components, telematics - GF82.85-P-9999LF

MODEL 217, 222

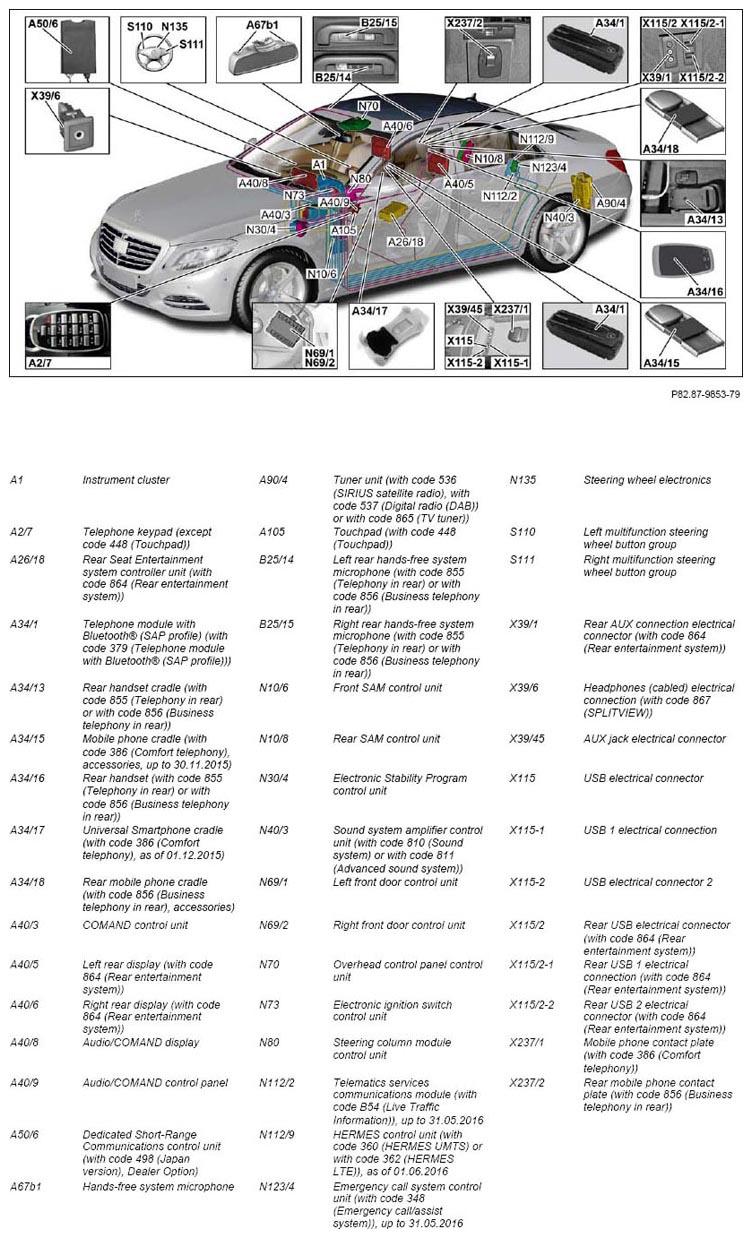

Components except telematics antenna system and except speaker system, shown on model 222.0

Fig 1: Overview Of Telematics System Components - Shown On Model 222.0
G11133609Courtesy of MERCEDES-BENZ USA

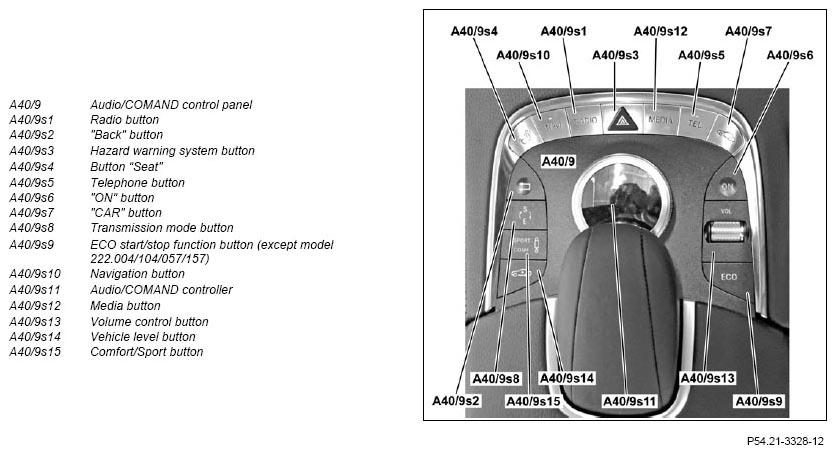

Detail view of Audio/COMAND control panel, shown on model 222.0 except model 222.004/057 and except code 487 (Active Body Control (ABC))

Fig 2: Audio/COMAND Control Panel Components - Shown On Model 222.0
G11133610Courtesy of MERCEDES-BENZ USA

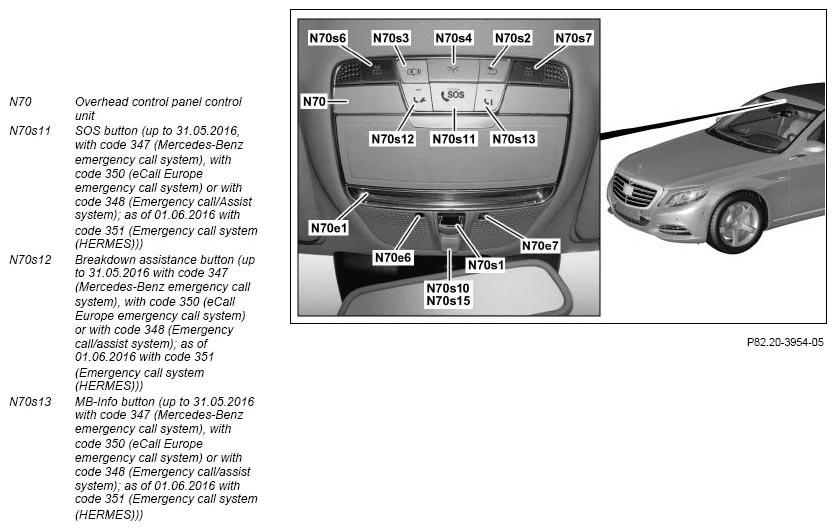

Detailed image of overhead control panel control unit, shown on model 222.0, valid for model 222 and model 217.3

Fig 3: Overhead Control Panel Control Unit Components - Shown On Model 222.0
G11133611Courtesy of MERCEDES-BENZ USA

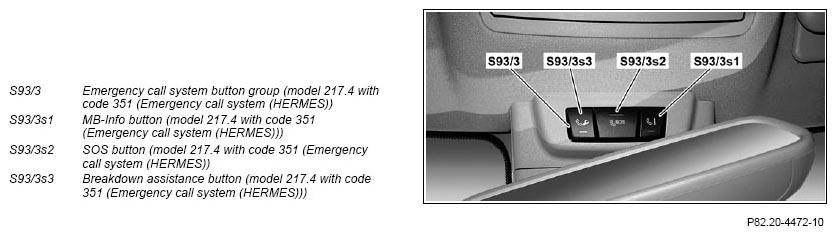

Shown on emergency call system button group (S93/3) on model 217.4 with code 351 (Emergency call system (HERMES))

Fig 4: Emergency Call System Button Group - Shown On Model 217.4 With Code 351
G11133612Courtesy of MERCEDES-BENZ USA

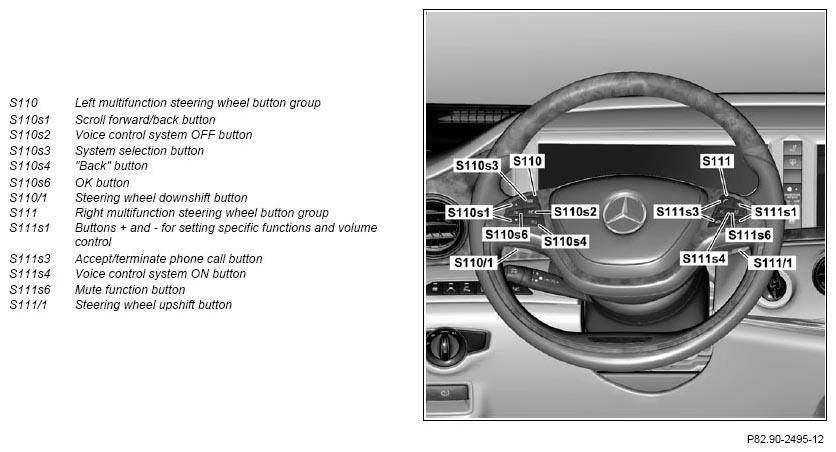

Detail view of left multifunction steering wheel button group and right multifunction steering wheel button group, shown on model 222.0

Fig 5: Left And Right Multifunction Steering Wheel Button Group - Shown On Model 222.0
G11133613Courtesy of MERCEDES-BENZ USA

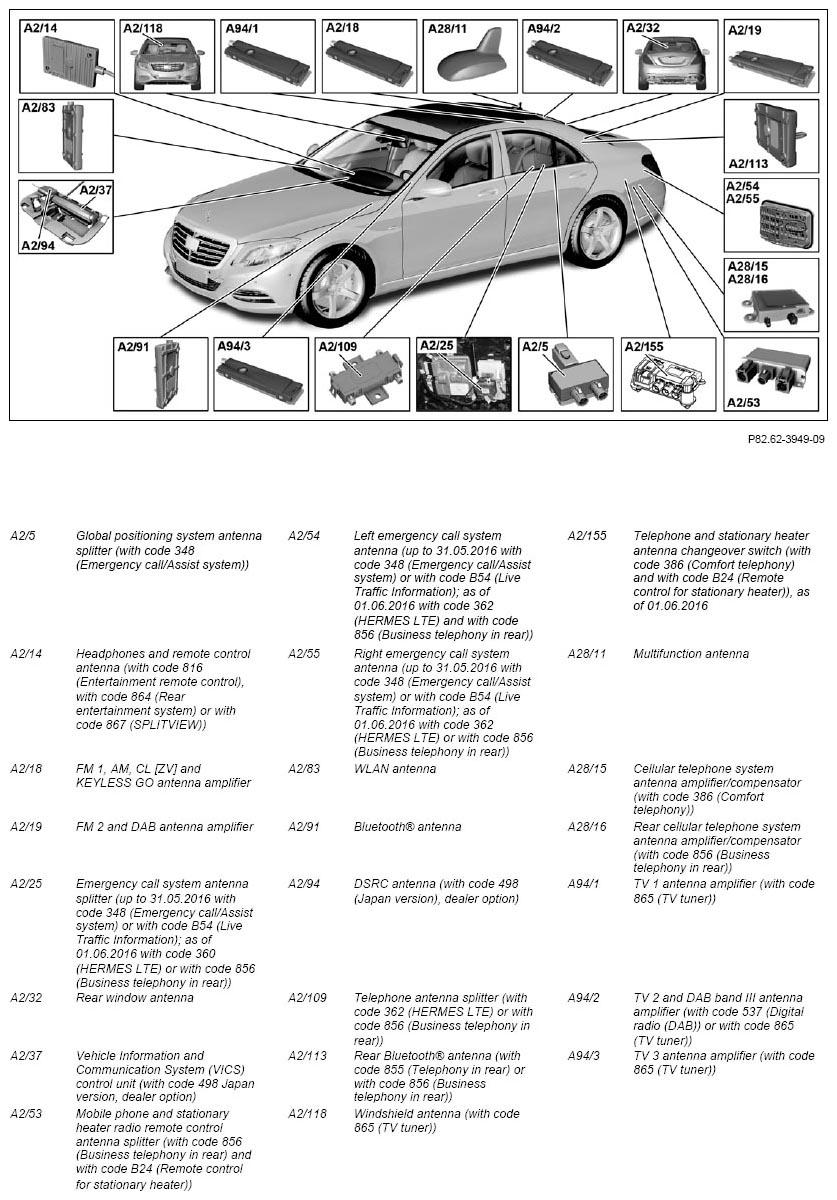

Telematics antenna system, shown on model 222.0

Fig 6: Telematics Antenna System - Shown On Model 222.0
G11133614Courtesy of MERCEDES-BENZ USA

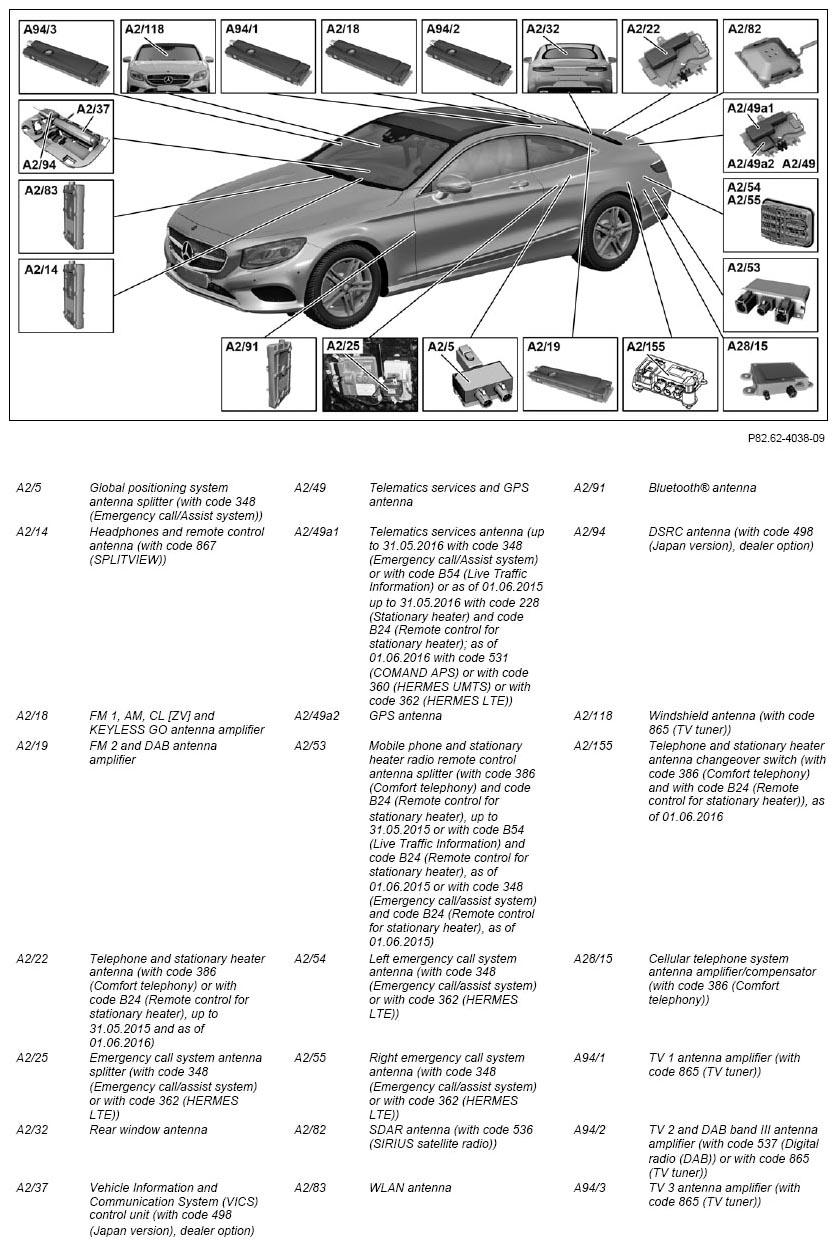

Telematics antenna system, shown on model 217.3

Fig 7: Telematics Antenna System Components - Shown On Model 217.3
G11133615Courtesy of MERCEDES-BENZ USA

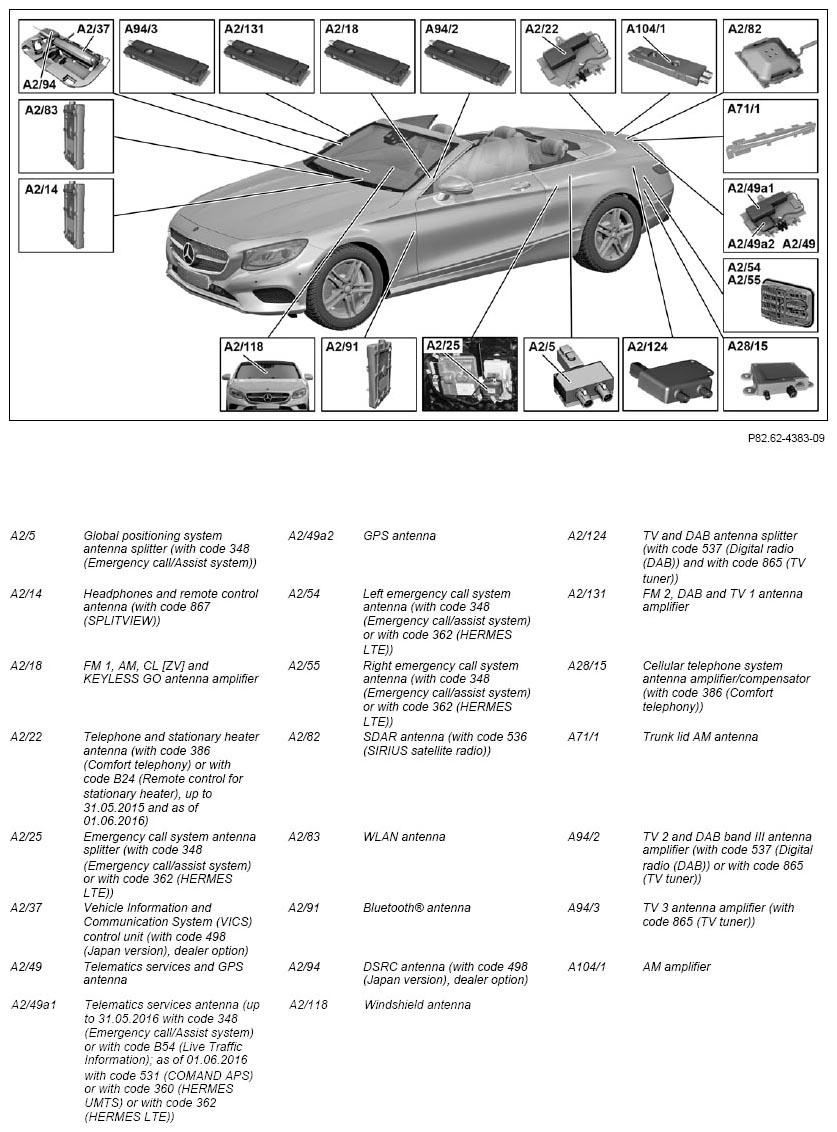

Telematics antenna system, shown on model 217.4

Fig 8: Telematics Antenna System Components - Shown On Model 217.4
G11133616Courtesy of MERCEDES-BENZ USA

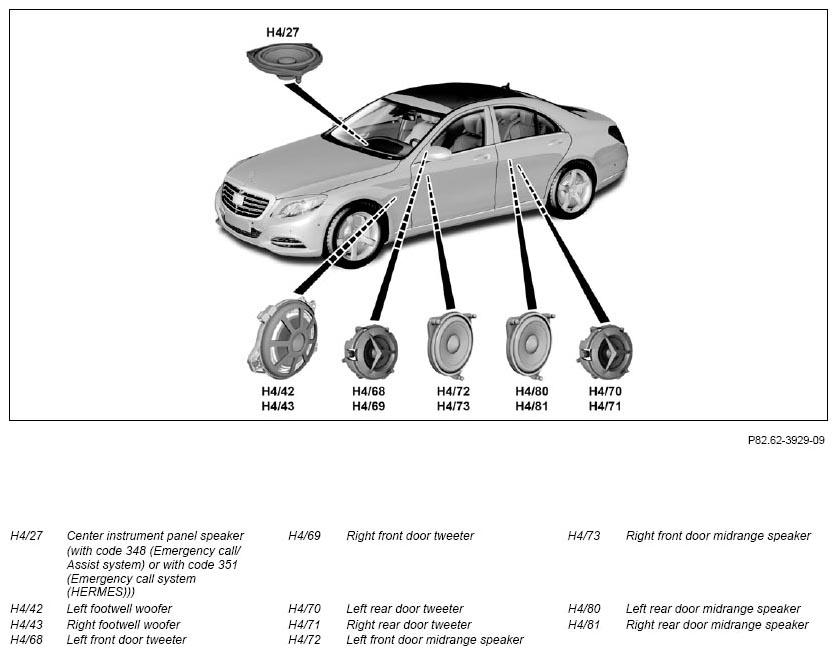

Speaker system except code 810 (Sound system) and except code 811 (Advanced sound system), shown on model 222.0

Fig 9: Speaker System Components - Shown On Model 222.0
G11133617Courtesy of MERCEDES-BENZ USA

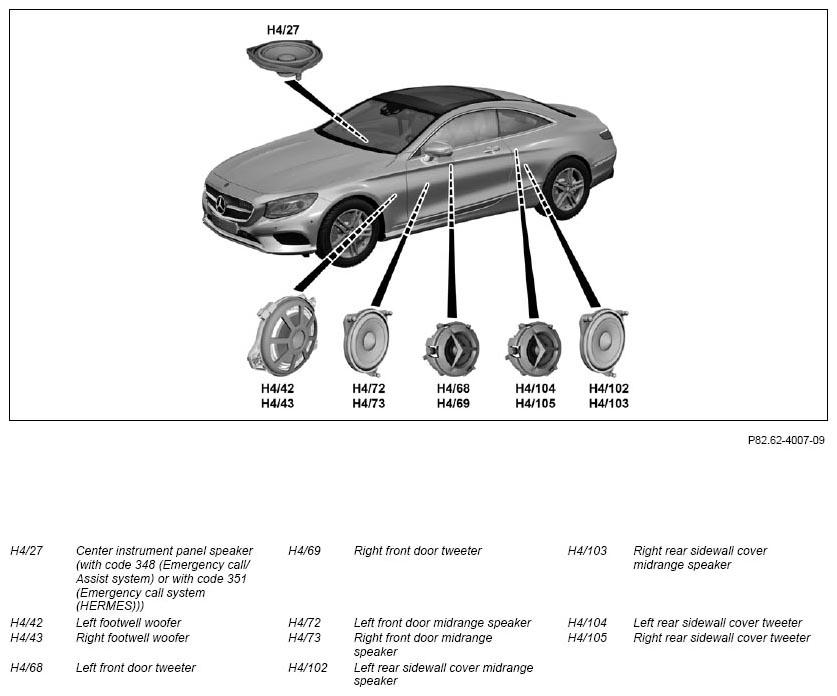

Speaker system, except code 810 (Sound system) and except code 811 (Advanced sound system), shown on model 217.3, valid for model 217.3/4

Fig 10: Speaker System Components - Shown On Model 217.3
G11133618Courtesy of MERCEDES-BENZ USA

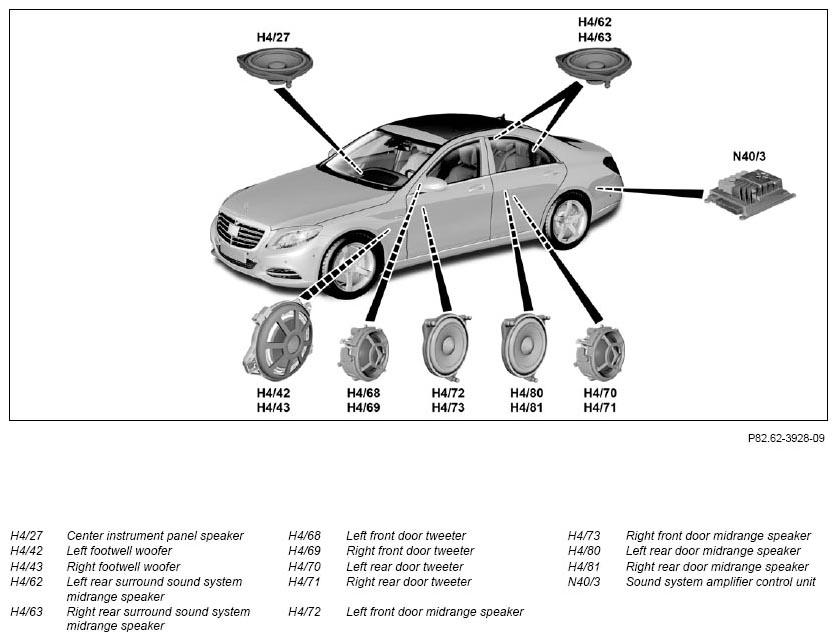

Speaker system with code 810 (Sound system), shown on model 222.0

Fig 11: Speaker System Components - Shown On Model 222.0 With Code 810
G11133619Courtesy of MERCEDES-BENZ USA

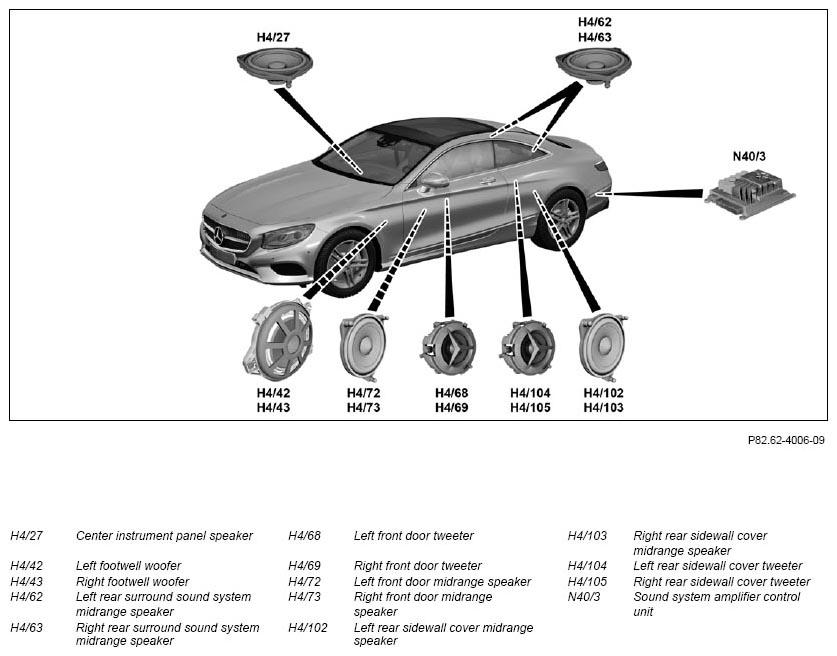

Speaker system with code 810 (Sound system), shown on model 217.3, valid for model 217.3/4

Fig 12: Speaker System Components - Shown On Model 217.3 With Code 810
G11133620Courtesy of MERCEDES-BENZ USA

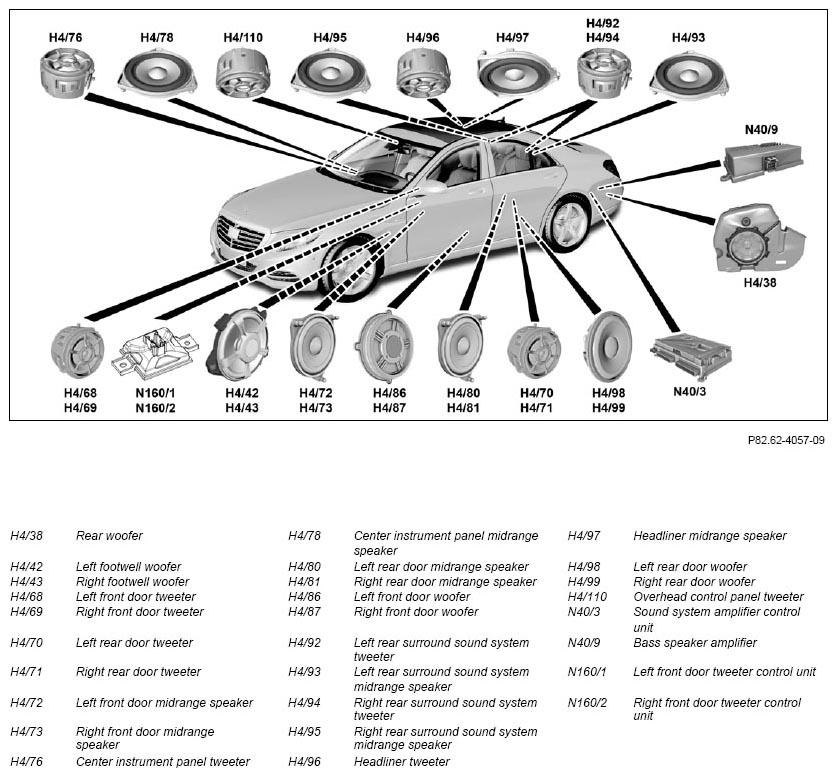

Speaker system with code 811 (Advanced sound system), shown on model 222.0

Fig 13: Speaker System Components - Shown On Model 222.0 With Code 811
G11133621Courtesy of MERCEDES-BENZ USA

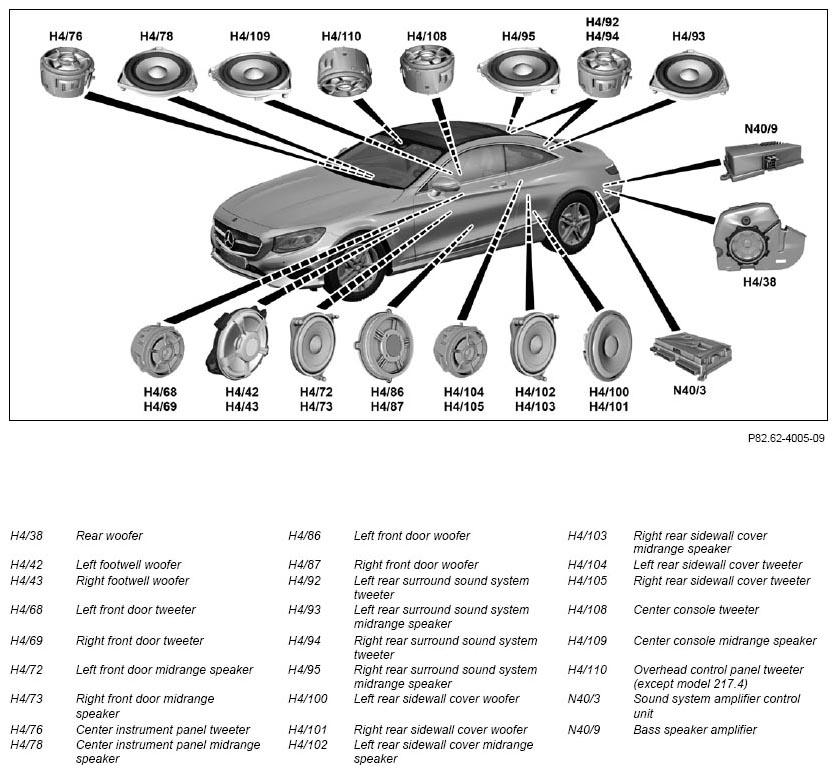

Speaker system with code 811 (Advanced sound system), shown on model 217.3, valid for model 217.3/4

Fig 14: Speaker System Components - Shown On Model 217.3 With Code 811
G11133622Courtesy of MERCEDES-BENZ USA
  Component description for instrument cluster A1 GF54.30-P-6000LF
  Rear entertainment system controller unit, component description Model 222
with code 864 (Rear compartment entertainment package) A26/18
 		 GF82.90-P-4021LF
  Component description for COMAND controller unit A40/3 GF82.85-P-3136LF
  Component description for rear display left/right Model 222
with code 864 (Rear compartment entertainment package)
A40/5, A40/6		 GF82.90-P-4020LF
  Component description for Audio/COMAND display A40/8 GF54.30-P-6150LF
  Tuner unit, component description Model 217, 222
with code 536 (SIRIUS satellite radio)
Model 217, 222
with code 537 (Digital radio (DAB))
Model 217, 222
with code 865 (TV tuner) A90/4		 GF82.60-P-5015LF
  Component description for front SAM control unit N10/6 GF54.21-P-7010LF
  Component description for rear SAM control unit N10/8 GF54.21-P-7030LF
  Component description for Electronic Stability Program control unit Model 222.004/057/104/157/163 N30/4 GF42.45-P-5119LFH
    Model 217, 222 (except 222.004/057/104/157/163) N30/4 GF42.45-P-5119LF
  Component description for sound system amplifier control unit Model 217, 222
with code 810 (Sound system)
except code 811 (Advanced sound system) N40/3		 GF82.62-P-5010LF
    Model 217, 222
with code 811 (Advanced sound system)
except code 810 (Sound system) N40/3		 GF82.62-P-5010LFA
  Component description for left front door control unit N69/1 GF72.29-P-6001LF
  Component description for right front door control unit N69/2 GF72.29-P-6009LF
  Component description for overhead control panel control unit N70 GF82.20-P-5216LF
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001LF
  Component description for steering column tube module control unit N80 GF54.21-P-6051LF
  Telematics services communications module, component description Model 217, 222
up to model year 2017
with code 350 (Ecall emergency call system, Europe)
Model 217, 222
up to model year 2017
with code B54 (Live Traffic Information) N112/2		 GF82.85-P-0220LF
  HERMES control unit, component description Model 217, 222
with code 360 (HERMES UMTS)
Model 217, 222
with code 362 (HERMES LTE) N112/9		 GF82.85-P-0221LF
  Component description for emergency call system control unit Model 217, 222
up to model year 2017
with code 348 (Emergency call/assistant system) N123/4		 GF82.95-P-3212LFU
  Telephone keypad, component description Model 217, 222
except code 448 (Touchpad) A2/7		 GF82.70-P-0101LF
  Component description for Audio/COMAND control panel A40/9 GF54.21-P-4501LF
  Touchpad, component description Model 217, 222
with code 448 (Touchpad) A105		 GF54.21-P-4511LF
  Table of contents for function description, telematics   GF82.85-P-0993LF
