Install Differential - AR27.50-P-0520-02RG

Transmission 700.40 In Model 190

MODIFICATION NOTES

17.03.2020

Special tool 700 589 22 15 00 newly added.

Operation step 2.

HOUSING

Number	Designation		Transmission 700.4 in model 190
BA27.40-P-1003-01F	Bolt, joint flange to transmission housing	Nm	40

HOUSING

Number	Designation		Transmission 700.4 in model 190
BA27.40-P-1007-01F	Bolt, differential housing cover to differential housing	Nm	36

HOUSING

Number	Designation		Transmission 700.4 in model 190
BA27.40-P-1008-01F	Threaded bushing, differential housing to gear set housing	Nm	30

HOUSING

Number	Designation		Transmission 700.4 in model 190
BA27.40-P-1009-01F	Bolt, retaining plate of threaded bushing	Nm	10

HOUSING

Number	Designation		Transmission 700.4 in model 190
BA27.40-P-1010-01F	Banjo bolt, transmission oil line	Nm	8

Fig 1: Identifying Socket Wrench (700 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Centering Pin (700 589 22 15 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1133-02A	Thread locking agent, Loctite 243 (10 ml)	A 613 989 09 71 09

Courtesy of MERCEDES-BENZ USA

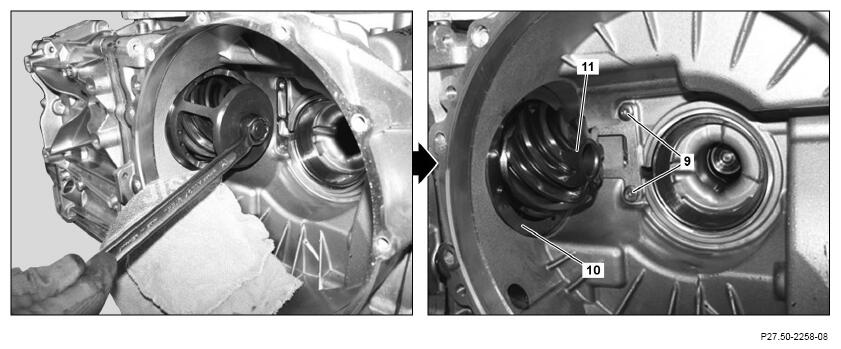

Screw threaded bushing (10) lightly by hand into differential housing.
Transmission 700.40 in model 190.378/379/381/478/479 Attach guide pin of socket wrench to centering pin.
Tighten threaded bushing (10) using socket wrench .
Install retaining plate in differential housing and screw in screws (9) far enough so that the retaining plate can still be moved.
Press retaining plate onto threaded bushing (10) and tighten screws (9) .

Courtesy of MERCEDES-BENZ USA

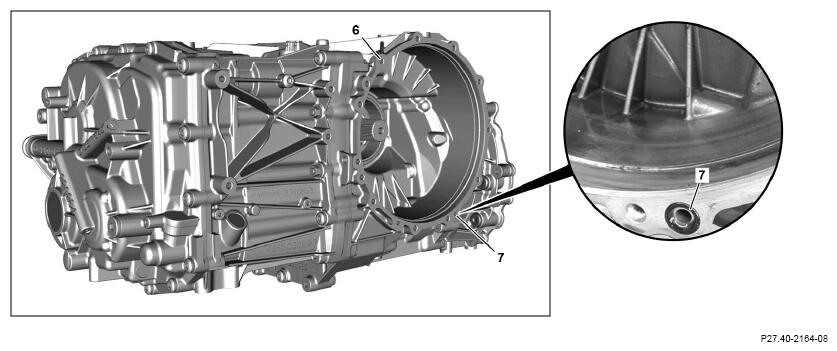

Check pilot bushing (6) for damage.
If problems exist,

↓

Replace pilot bushing (6).
Replace sealing ring (7) of hydraulic oil duct and moisten with oil.
Replace sealing ring (8) of differential housing cover.

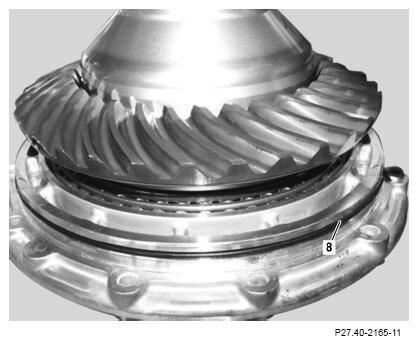

Clean thread on left drive shaft flange.
Insert left drive shaft flange into differential housing.
Insert differential housing cover with differential into differential housing.
The left drive shaft flange serves as an assembly aid for the differential.

Ensure that pilot bushing, sealing ring (8) and sealing ring (7) of hydraulic oil duct are seated correctly.

Courtesy of MERCEDES-BENZ USA
Coat screws (1 to 11) with thread locking agent and tighten lightly by hand.

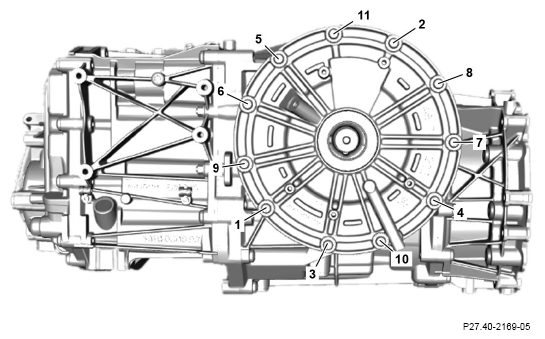

Tighten screws (1 to 11) in numerical sequence .

Courtesy of MERCEDES-BENZ USA

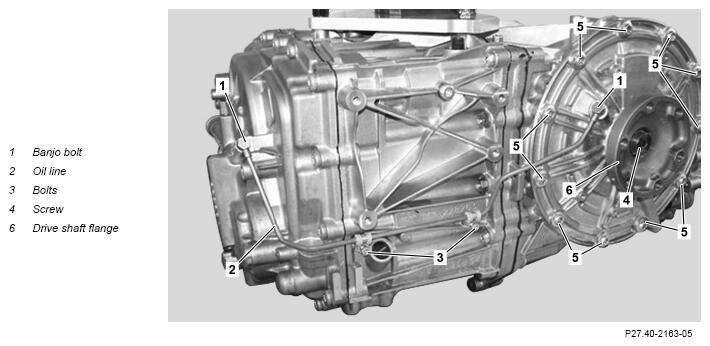

Attach oil line (2) to transmission housing and tighten banjo bolts (1) lightly by hand.
Replace sealing rings of oil line (2).
Tighten bolts (3).
Tighten banjo bolts (1) .
Install drive shaft flange (6) into differential housing and tighten screw (4) .
Replace screw (4).
