Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01RQK

Model 190.381

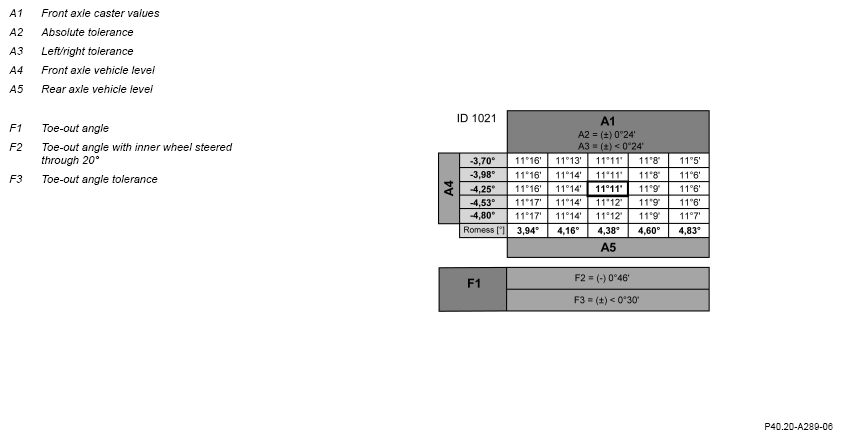

G16677857

Courtesy of MERCEDES-BENZ USA

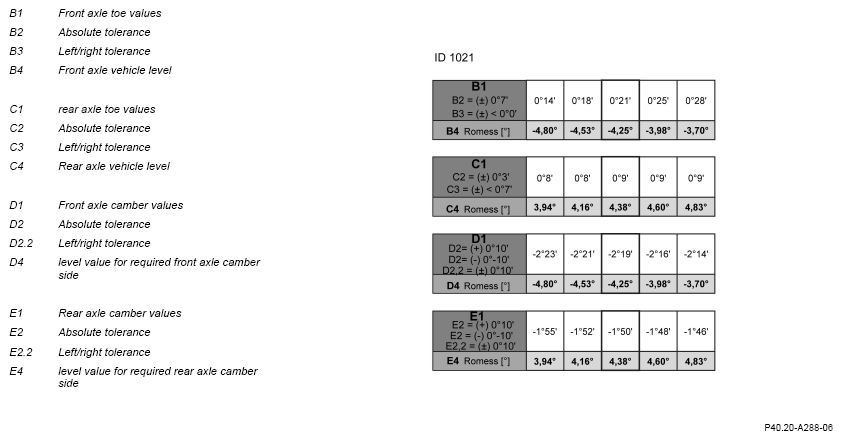

G16677858

Courtesy of MERCEDES-BENZ USA
