Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01RQI

Model 190.380/480

With Code 479 (AMG RIDE CONTROL sports suspension)

With Code P71 (AMG DYNAMIC PLUS package)

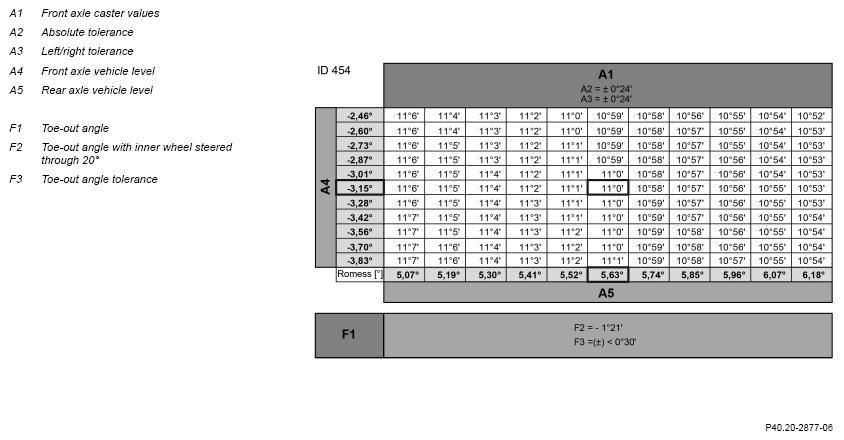

G16677853Courtesy of MERCEDES-BENZ USA

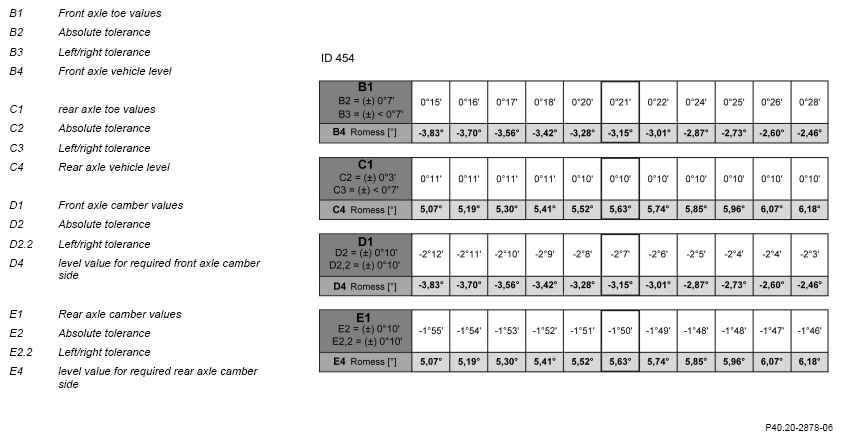

G16677854Courtesy of MERCEDES-BENZ USA
