Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01RQD

Model 190.378/478

With Code 479 (AMG RIDE CONTROL sports suspension)

With Code P71 (AMG DYNAMIC PLUS package)

except code 201 (Rear axle steering)

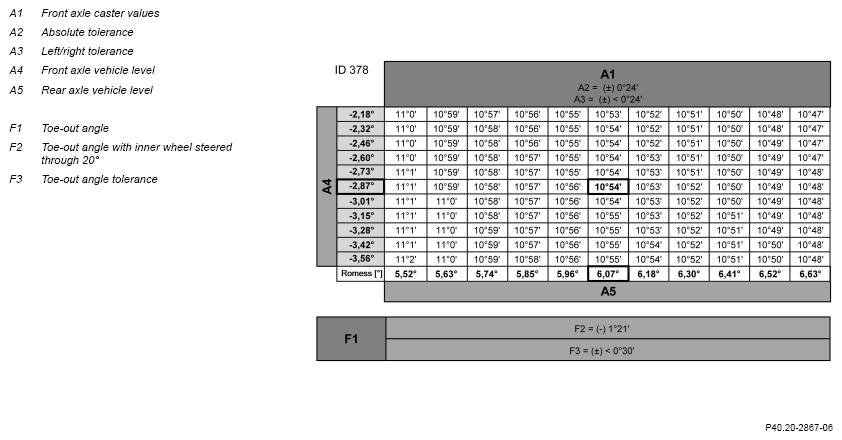

G16677843Courtesy of MERCEDES-BENZ USA

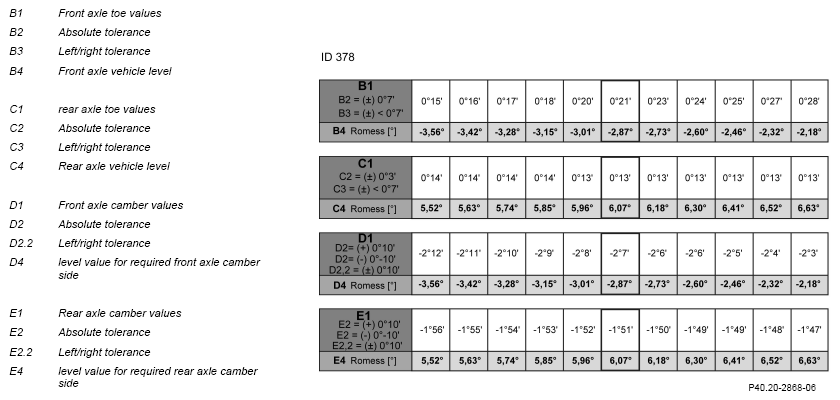

G16677844Courtesy of MERCEDES-BENZ USA
