Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01RQC

Model 190.378/478

With Code 479 (AMG RIDE CONTROL sports suspension)

except code P71 (AMG DYNAMIC PLUS package)

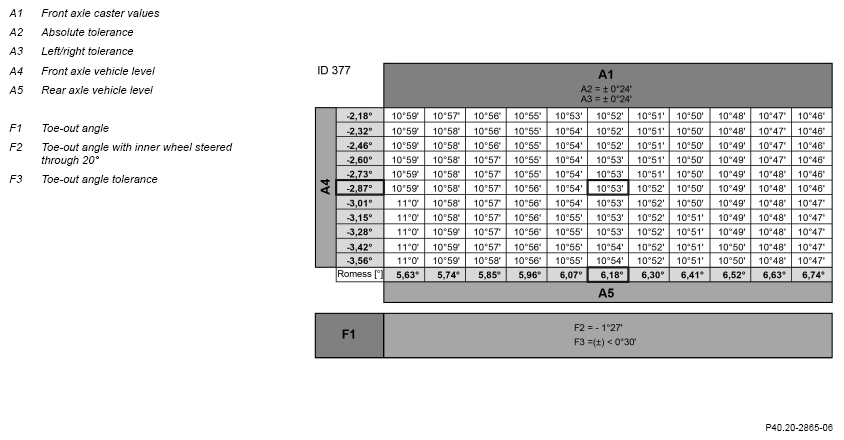

G16677841Courtesy of MERCEDES-BENZ USA

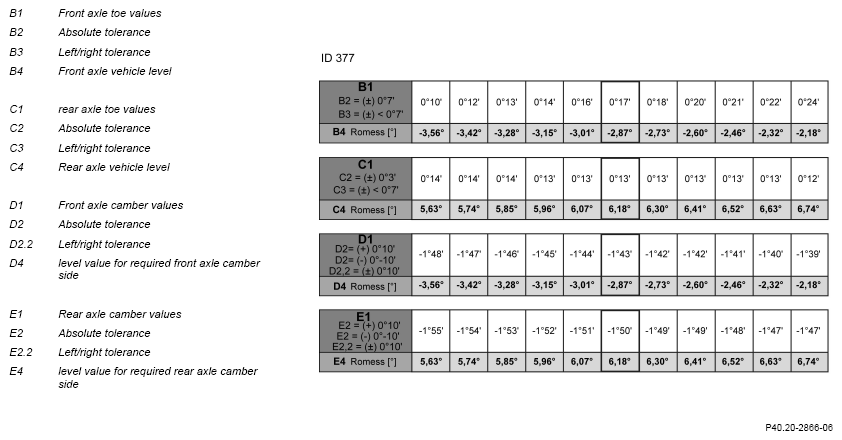

G16677842Courtesy of MERCEDES-BENZ USA
