Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01RQA

Model 190.377/477

except code 479 (AMG RIDE CONTROL sports suspension)

except code P71 (AMG DYNAMIC PLUS package)

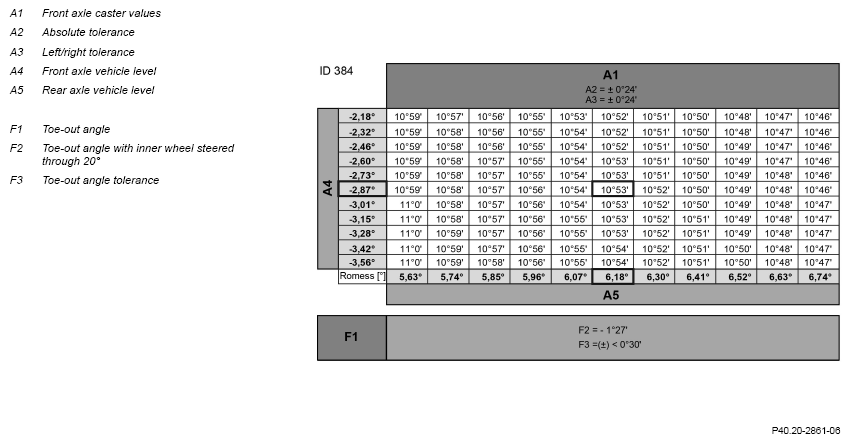

G16677837Courtesy of MERCEDES-BENZ USA

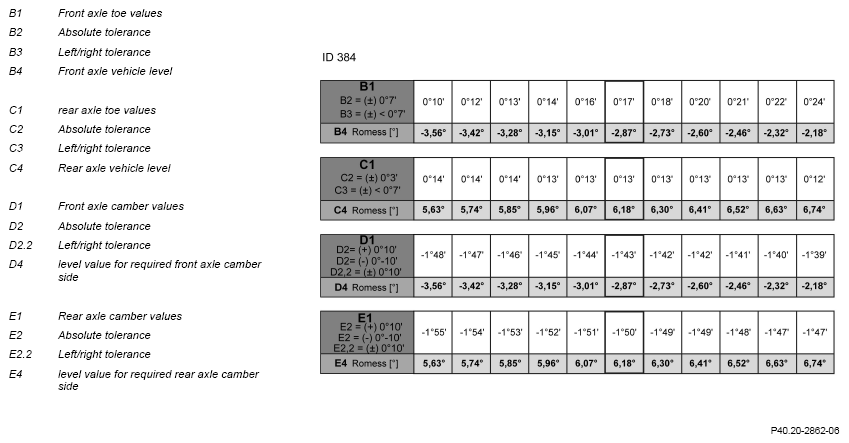

G16677838Courtesy of MERCEDES-BENZ USA
