Check Basic Setting Of Camber On Rear Axle - AR40.20-P-0306-01RQ

Model 190

With Code M032 (Black Series version)

Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
WHEEL CONTROL

Number Designation Model 190
BA35.20-P-1003-07D Nut, lower transverse control arm to wheel carrier Stage 1 Nm 70
Stage 2 ∠° 120
  1. Check basic setting of camber on rear axle.

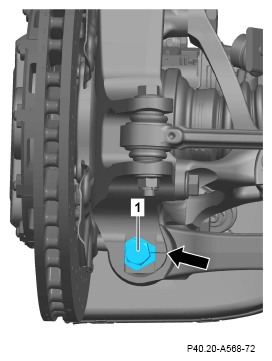

    IMPORTANT The basic setting is present when the groove on the eccentric disk of the screw (1) lines up with the groove (arrow) on the wheel carrier.

    If the basic setting is not present,

    ↓

    perform basic setting. TORQUE SPECIFICATION

    Shown on left side of vehicle

    G16677887Courtesy of MERCEDES-BENZ USA
