Check Basic Setting Of Camber On Front Axle - AR40.20-P-0305-01RQ

Model 190

With Code M032 (Black Series version)

Notice

Notes on self-locking nuts and bolts

AH00.00-P-0001-01KOA

WHEEL CONTROL, HUB

Number	Designation		Model 190
BA33.20-P-1008-01P	Screw, upper transverse control arm holder to steering knuckle	Nm	50

Check basic setting of camber on front axle.

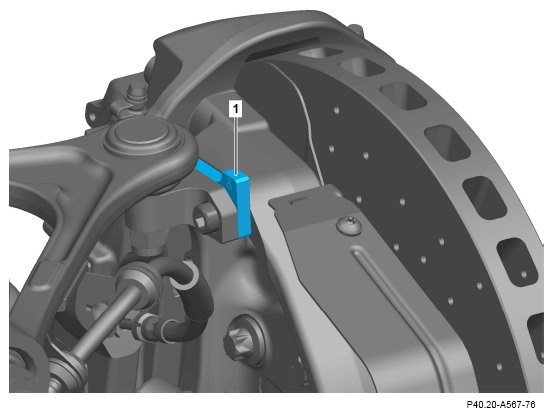

The basic setting is present when adjusting plate "8" (1) is installed

If the basic setting is not present,

↓

perform basic setting by installing adjusting plate "8" (1).

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA
