Expose Rear Suspension Strut - AR32.25-P-1016-01RG

Model 190.4

Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.

No parts of the body or limbs should be within the operating area of mechanical components when moving components.

AS00.00-Z-0009-01A

Courtesy of MERCEDES-BENZ USA

1. Soft top in half open position.

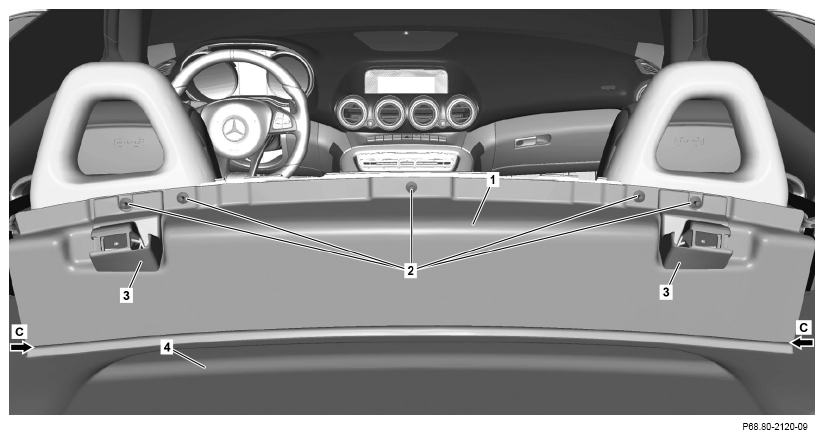

2. Remove left and right cover (3).

   Keep magnetic tool away from soft top put down and locked sensor (S84/24) behind the left cover (3).

   This causes malfunctions to the soft top put down and locked sensor (S84/24).

3. Release lower soft top compartment trim (4).

   Only unfasten lower soft top compartment trim (4), do not fully remove.

   Courtesy of MERCEDES-BENZ USA

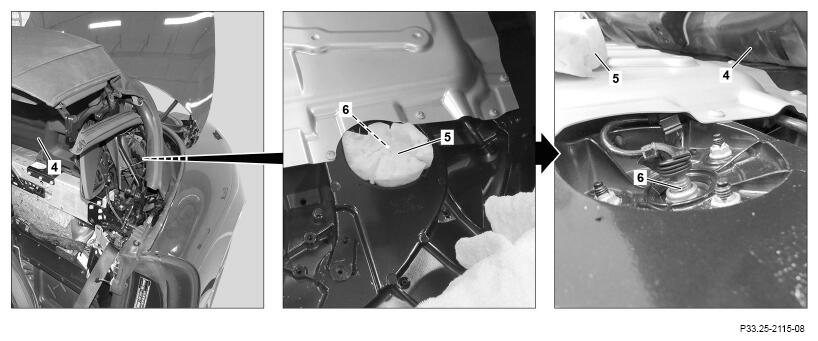

4. Remove insulation (5) over left suspension strut (6) or right suspension strut.

   Ensure that the insulation (5) is seated correctly.
