Remove/Install Adaptive Damping System Control Unit - AR32.32-P-0003RG
Model 190
With Code 479 (AMG RIDE CONTROL sports suspension)
except code M032 (Black Series version)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission adaptive damping system control unit (N51/5). | When replacing the adaptive damping system control unit (N51/5). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove head unit. | AR82.85-P-1100RG | |

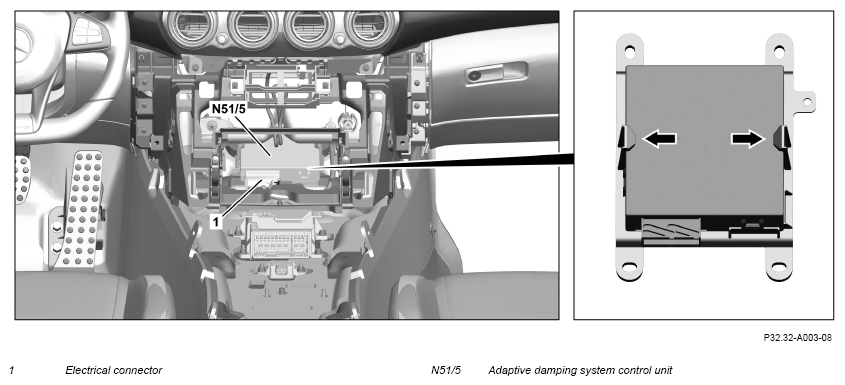

| 4 | Release catch hooks (arrows) and remove adaptive damping system control unit (N51/5) from carrier plate. | ||
| 5 | Disconnect electrical connector (1). | ||
| 6 | Install in the reverse order |
