Adaptive Damping System Control Unit, Basic Function - GF32.32-P-9891A
Vehicles with adjustable damping

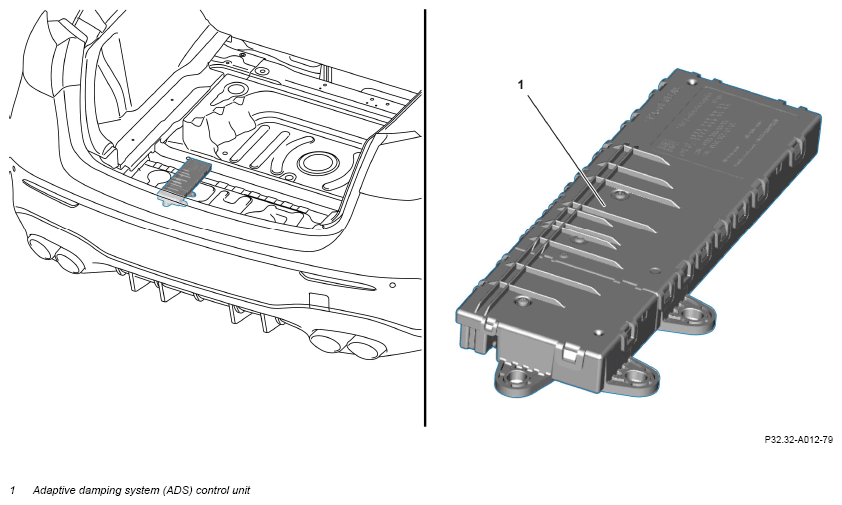

Example illustration of adaptive damping system (ADS) control unit
Overview
This document contains information on:
- General
- Function
General
The Adaptive Damping System (ADS) control unit (1) actuates the damping valve units at the corresponding shock absorbers. This means that dampening can be adapted to the driving style and road surface condition.
Function
For this purpose, the Adaptive Damping System (ADS) control unit (1) reads in signals from the level sensors and information from the Electronic Stability
Program (ESP®) control unit, the instrument cluster control unit and the drivetrain control unit.
To change the damper characteristic, the Adaptive Damping System (ADS) control unit (1) actuates the comfort valves of the damping valve units at the shock absorbers. This means that the flow area in the damper changes according to the situation, and consequently also the amount of oil flow, thereby changing the damping characteristics.
| Additional basic functions | |||
| Level sensor, basic function | All models (cars, 4xWD) | GF32.31-P-2001A | |
| Damping valve unit, basic function | All models (cars, 4xWD) | GF32.32-P-2002A | |
| Component descriptions | |||
| Component description for adaptive damping system control unit | Model 223 | GF32.32-P-1010A | |
| Model 243 | GF32.32-P-1010B | ||
| Model 206 | GF32.32-P-1010C | ||
| Model 297 | GF32.32-P-1010D | ||
| Model 295 | GF32.32-P-1010E | ||
| Model 232 | GF32.32-P-1010F | ||
| Model 296 | GF32.32-P-1010G | ||
| Model 254 | GF32.32-P-1010H | ||
| Model 214 | GF32.32-P-1010K | ||
| Model 118 as of model year 2023, model 177 as of model year 2023, model 247 as of model year 2023 | GF32.32-P-1010L | ||
| Model 167 as of model year 2023 | GF32.32-P-1010M | ||
| Model 294 | GF32.32-P-1010N | ||
| Model 192 | GF32.32-P-1010R |
