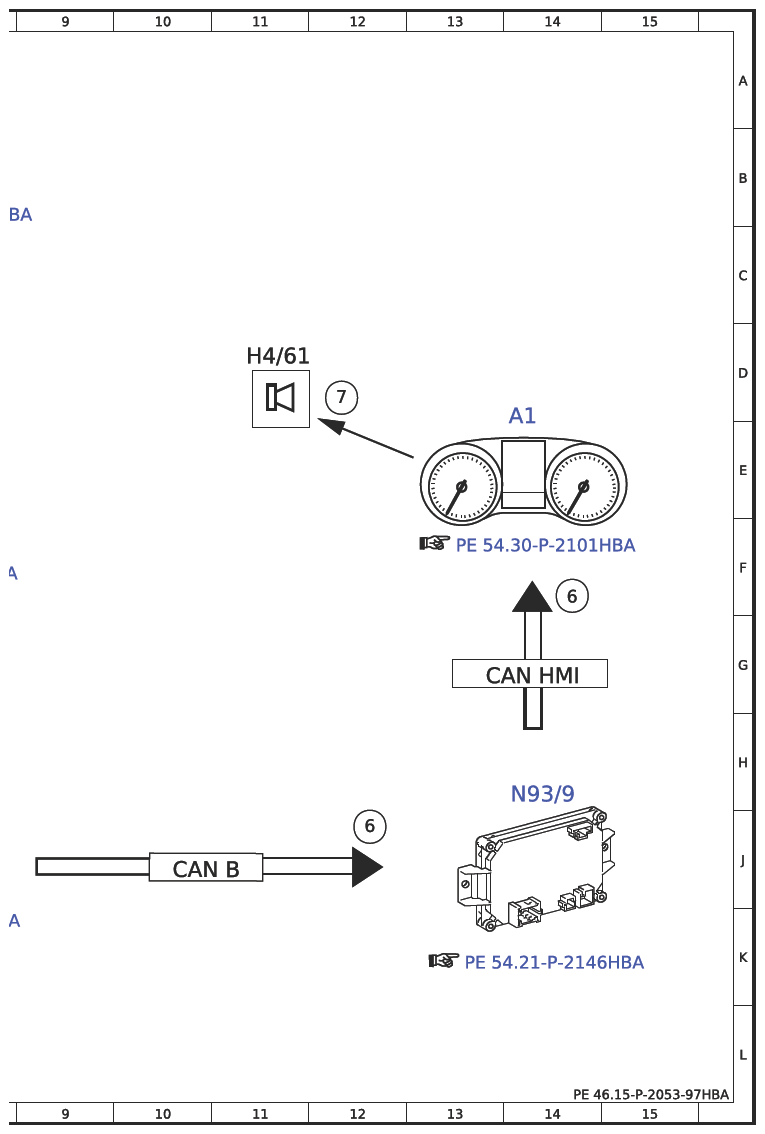

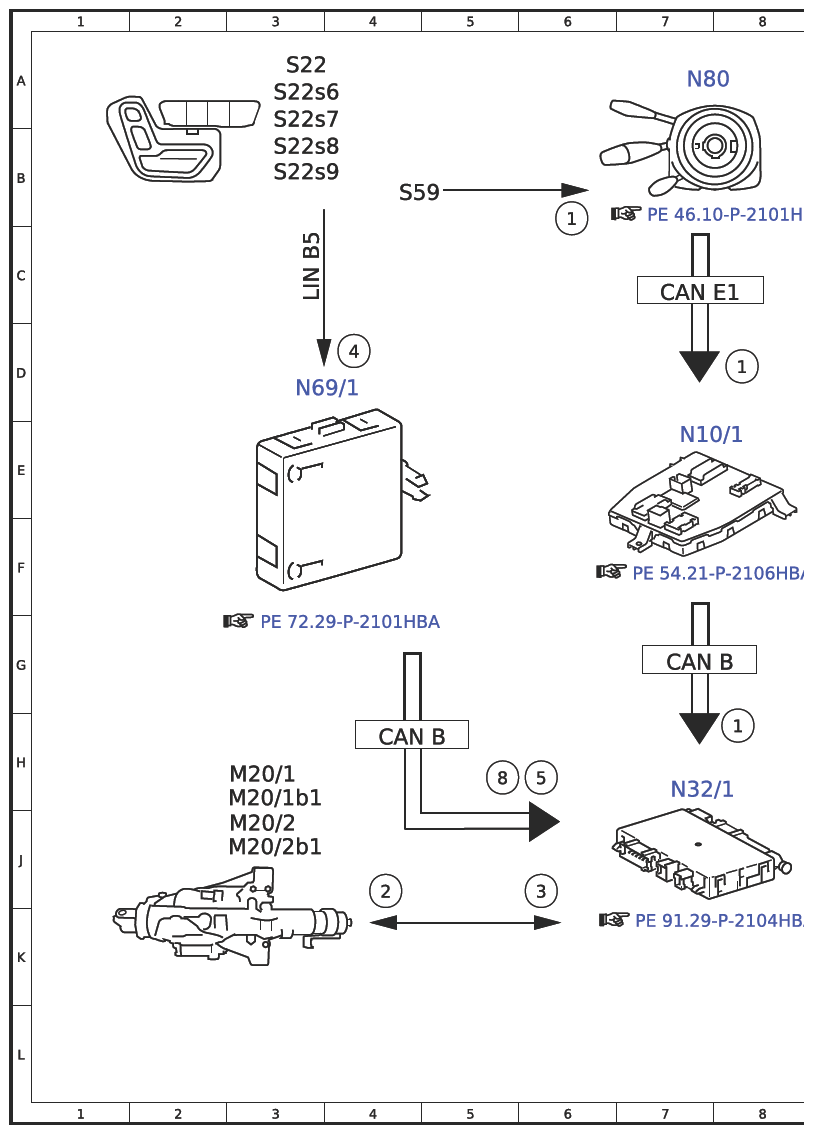

Electrical Function Schematic For Steering Column Adjustment - PE46.15-P-2053-97HBA
Model 190
With Code P64 (Memory package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Steering column adjustment switch, status | 6B |
| 1 | Steering column adjustment switch, status | 8D |
| 1 | Steering column adjustment switch, status | 8H |
| 2 | Steering column adjustment motor, actuation | 4J |
| 3 | Hall sensors, signal | 6J |
| 4 | Seat adjustment switch group, status | 4D |
| 5 | Store memory position, request | 6H |
| 6 | Acknowledgment tone after memory positions stored successfully, request | 14F |
| 6 | Acknowledgment tone after memory positions stored successfully, request | 12J |
| 7 | Speaker, actuation | 12D |
| 8 | Adopt memory position, request | 5H |
| A1 | Instrument cluster | 14E |
| CAN B | Interior CAN | 7G |
| CAN B | Interior CAN | 10J |
| CAN B | Interior CAN | 4H |
| CAN E1 | Chassis CAN 1 | 7C |
| CAN HMI | User interface CAN | 14G |
| H4/61 | Instrument cluster speaker | 11D |
| M20/1 | Steering column in/out adjustment motor | 3H |
| M20/1 b1 | Steering column in/out Hall sensor | 3H |
| M20/2 | Steering column up/down adjustment motor | 3J |
| M20/2b1 | Steering column up/down Hall sensor | 3J |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N32/1 | Driver seat control unit | 7H |
| N69/1 | Left door control unit | 3D |
| N80 | Steering column module control unit | 7A |
| N93/9 | AMG gateway control unit | 14H |
| S22 | Left seat adjustment switch group | 3A |
| S22s6 | Left memory function switch | 3A |
| S22s7 | Left memory switch 1 | 3A |
| S22s8 | Left memory switch 2 | 3B |
| S22s9 | Left memory switch 3 | 3B |
| S59 | Steering column adjustment switch | 4B |
