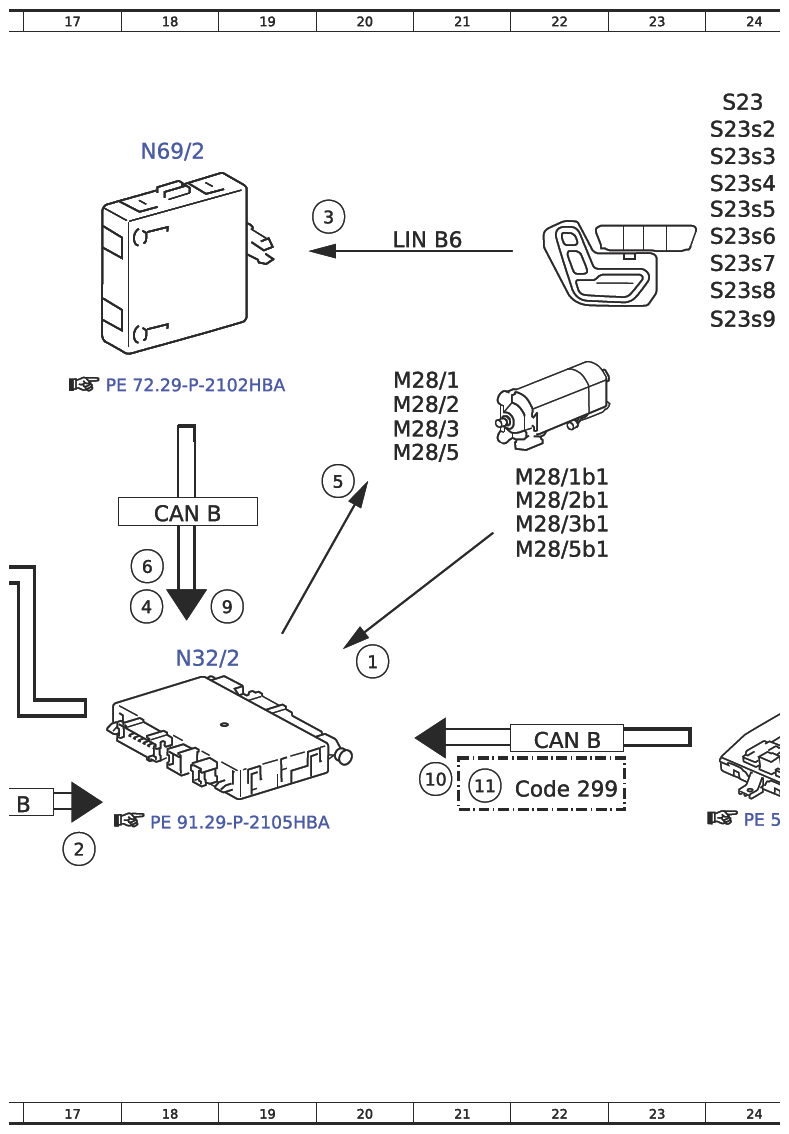

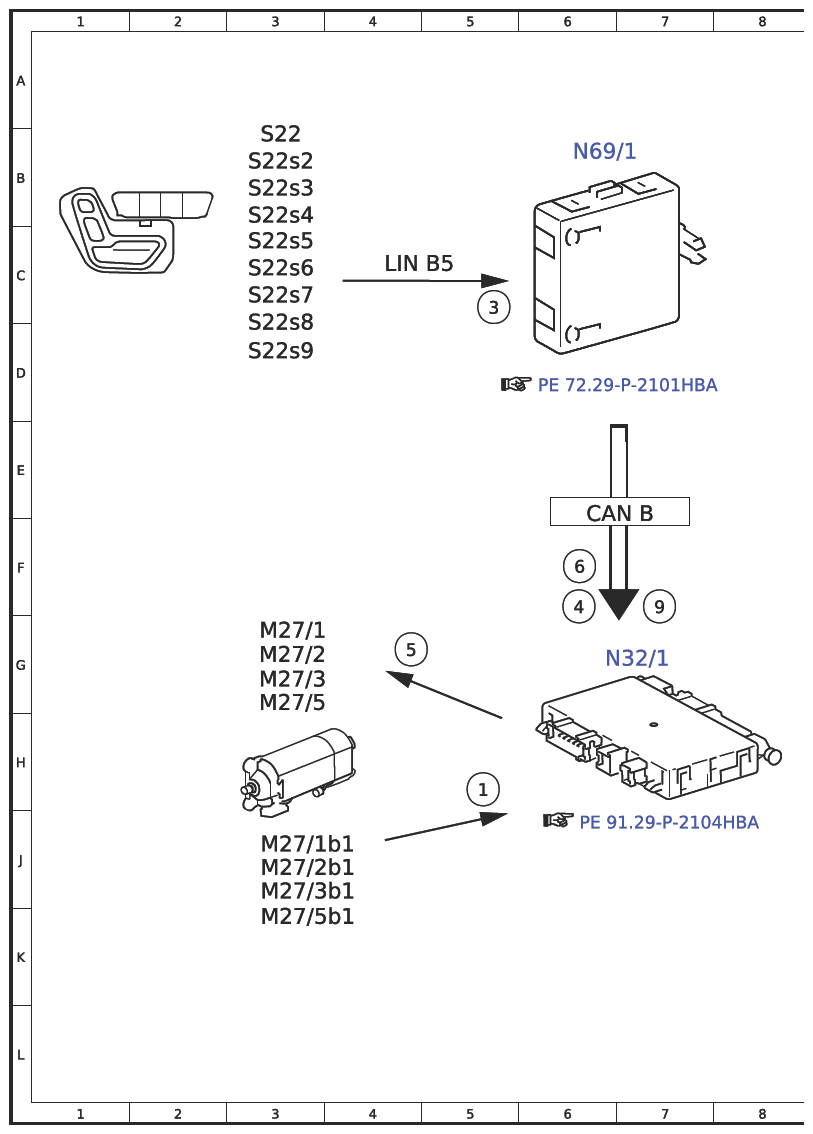

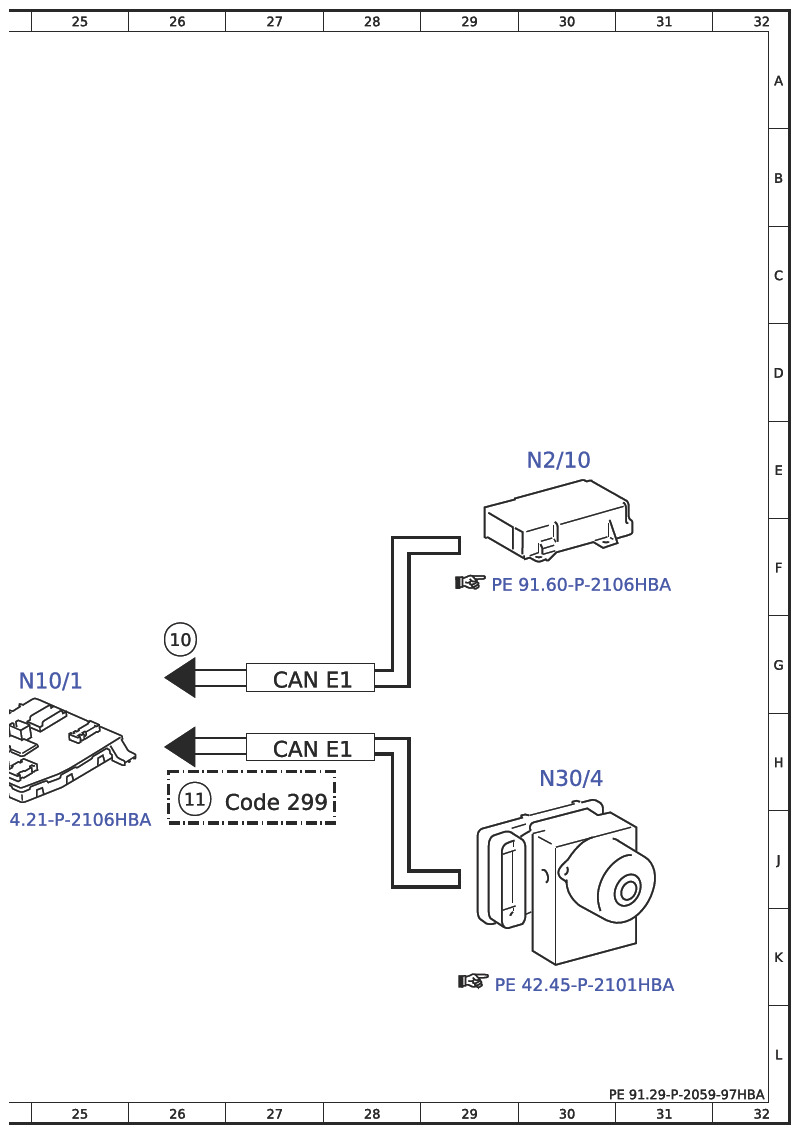

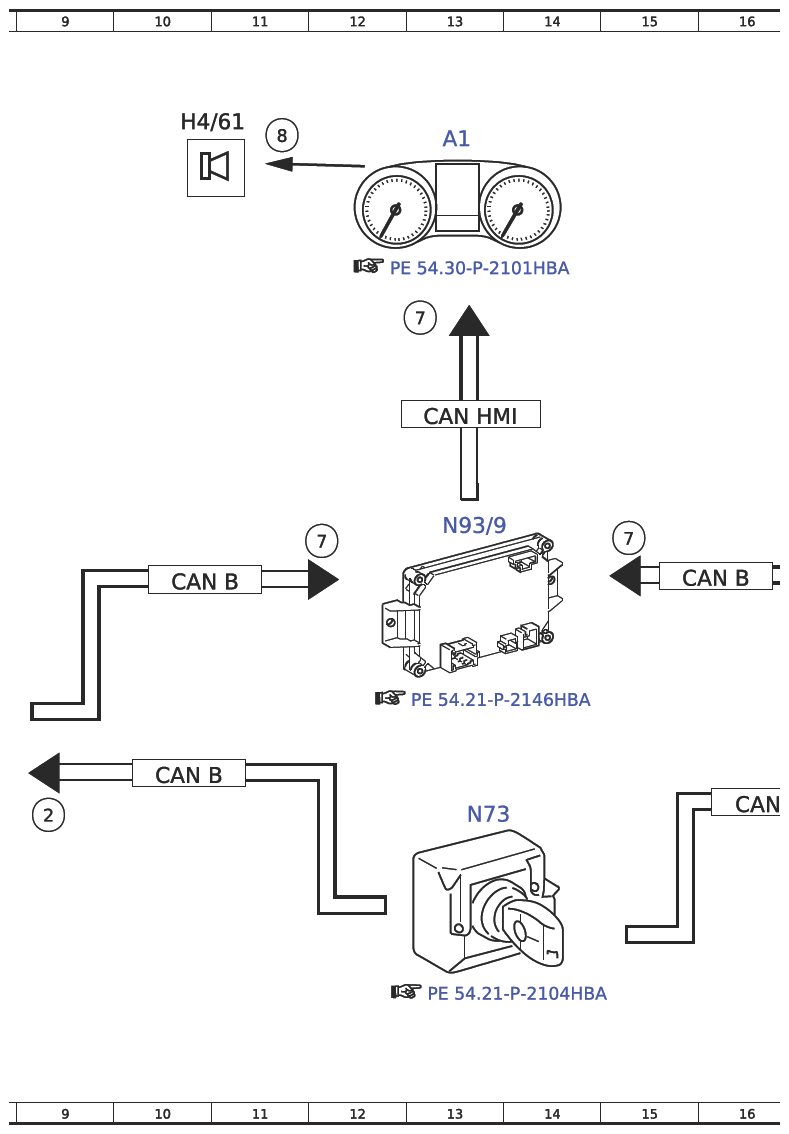

Electrical Function Schematic For Seat Adjustment (ESE) - PE91.29-P-2059-97HBA
Model 190
With Code P64 (Memory package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Hall sensors, signal | 5H |
| 1 | Hall sensors, signal | 20G |
| 10 | Front passenger seat occupied recognition, status | 26G |
| 10 | Front passenger seat occupied recognition, status | 21H |
| 11 | Adjust PRE-SAFE®, request | 21H |
| 11 | Adjust PRE-SAFE®, request | 26H |
| 2 | Circuit 15, status | 9J |
| 2 | Circuit 15, status | 17J |
| 3 | Seat adjustment switch group, status | 5C |
| 3 | Seat adjustment switch group, status | 20B |
| 4 | Manual adjustment, request | 18F |
| 4 | Manual adjustment, request | 6F |
| 5 | Seat adjustment motor, actuation | 4G |
| 5 | Seat adjustment motor, actuation | 20E |
| 6 | Store memory position, request | 18F |
| 6 | Store memory position, request | 6F |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 12F |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 13D |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 15F |
| 8 | Speaker, actuation | 11B |
| 9 | Adopt memory position, request | 19F |
| 9 | Adopt memory position, request | 7F |
| A1 | Instrument cluster | 13B |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 16F |
| CAN B | Interior CAN | 16J |
| CAN B | Interior CAN | 22H |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 6F |
| CAN E1 | Chassis CAN 1 | 27H |
| CAN E1 | Chassis CAN 1 | 27G |
| CAN HMI | User interface CAN | 13E |
| Code 299 | PRE-SAFE® system | 22H |
| Code 299 | PRE-SAFE® system | 26H |
| H4/61 | Instrument cluster speaker | 10B |
| M27/1 | Driver seat fore/aft adjustment motor | 3G |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 3J |
| M27/2 | Driver seat height adjustment motor | 3G |
| M27/2b1 | Height adjustment Hall sensor, driver seat | 3J |
| M27/3 | Driver seat inclination adjustment motor | 3G |
| M27/3b1 | Inclination adjustment Hall sensor, driver seat | 3J |
| M27/5 | Driver seat backrest inclination adjustment motor | 3G |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 3K |
| M28/1 | Front passenger seat fore/aft adjustment motor | 20D |
| M28/1b1 | Seat fore/aft adjustment Hall sensor, front passenger seat | 22E |
| M28/2 | Front passenger seat height adjustment motor | 20D |
| M28/2b1 | Height adjustment Hall sensor, front passenger seat | 22E |
| M28/3 | Front passenger seat inclination adjustment motor | 20E |
| M28/3b1 | Inclination adjustment Hall sensor, front passenger seat | 22F |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 20E |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 22F |
| N10/1 | Front SAM control unit with fuse and relay module | 25G |
| N2/10 | Supplemental restraint system control unit | 30E |
| N30/4 | Electronic Stability Program control unit | 30H |
| N32/1 | Driver seat control unit | 7G |
| N32/2 | Front passenger seat control unit | 18G |
| N69/1 | Left door control unit | 6B |
| N69/2 | Right door control unit | 18B |
| N73 | Electronic ignition switch control unit | 13J |
| N93/9 | AMG gateway control unit | 13F |
| S22 | Left seat adjustment switch group | 3B |
| S22s2 | Left seat inclination adjustment switch | 3B |
| S22s3 | Left seat fore/aft adjustment switch | 3B |
| S22s4 | Left seat height adjustment switch | 3B |
| S22s5 | Left backrest adjustment switch | 3C |
| S22s6 | Left memory function switch | 3C |
| S22s7 | Left memory switch 1 | 3C |
| S22s8 | Left memory switch 2 | 3D |
| S22s9 | Left memory switch 3 | 3D |
| S23 | Right seat adjustment switch group | 24A |
| S23s2 | Right seat inclination adjustment switch | 24B |
| S23s3 | Right seat fore/aft adjustment switch | 24B |
| S23s4 | Right seat height adjustment switch | 24B |
| S23s5 | Right backrest adjustment switch | 24B |
| S23s6 | Right memory function switch | 24C |
| S23S7 | Right memory switch 1 | 24C |
| S23s8 | Right memory switch 2 | 24C |
| S23s9 | Right memory switch 3 | 24D |
