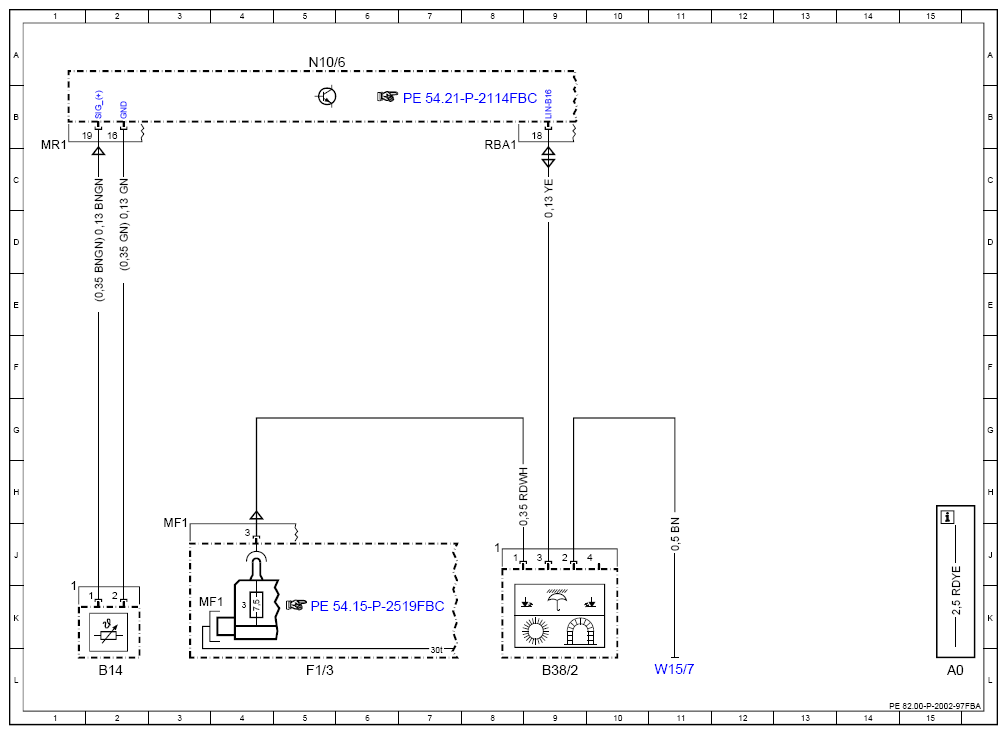

Wiring Diagram for Vehicle Surroundings Sensors - PE82.00-P-2002-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| B14 | Outside temperature sensor | 2L |
| B38/2 | Rain/light sensor with additional functions | 9L |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3MF1 | Multiple fuse 1 | 4K |
| N10/6 | Front SAM control unit | 5A |
| W15/7 | Right front footwell ground point | 11L |
