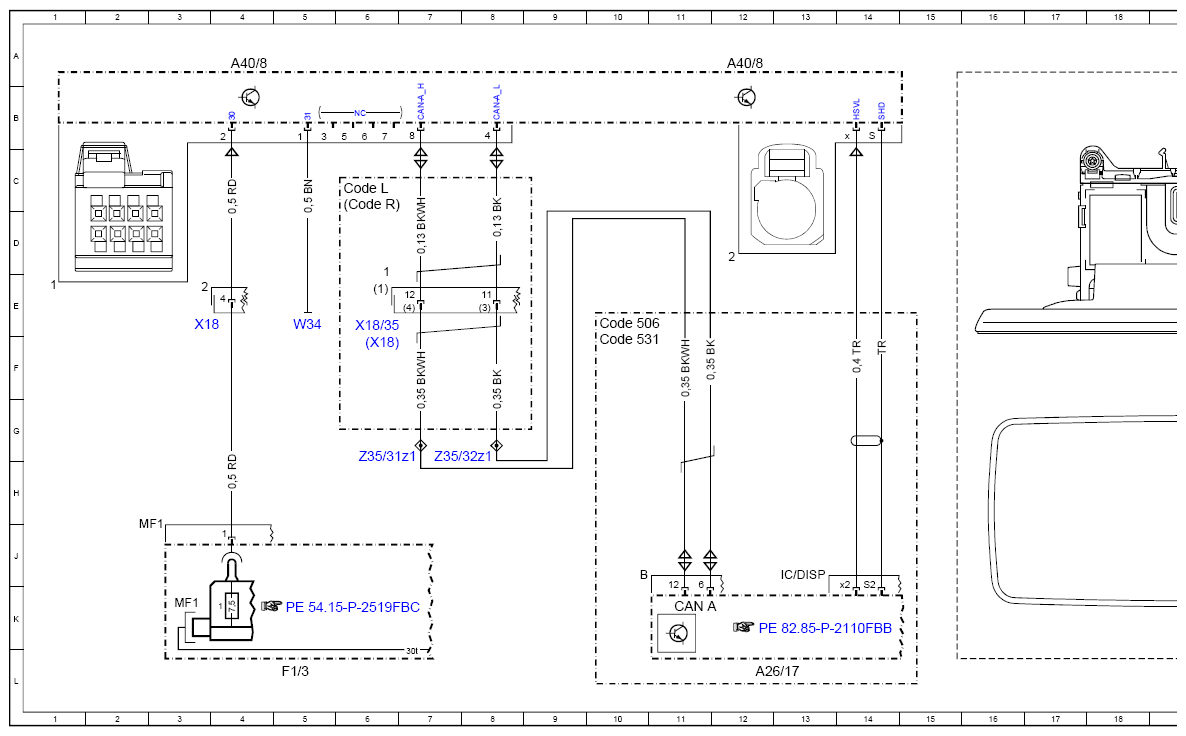

Wiring Diagram for Audio/Comand Display - PE82.00-P-2080-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|

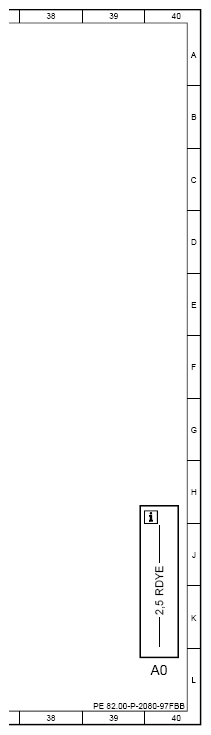

| A0 | Use of wiring diagrams | 40L |
| A26/17 | Head unit | 12L |

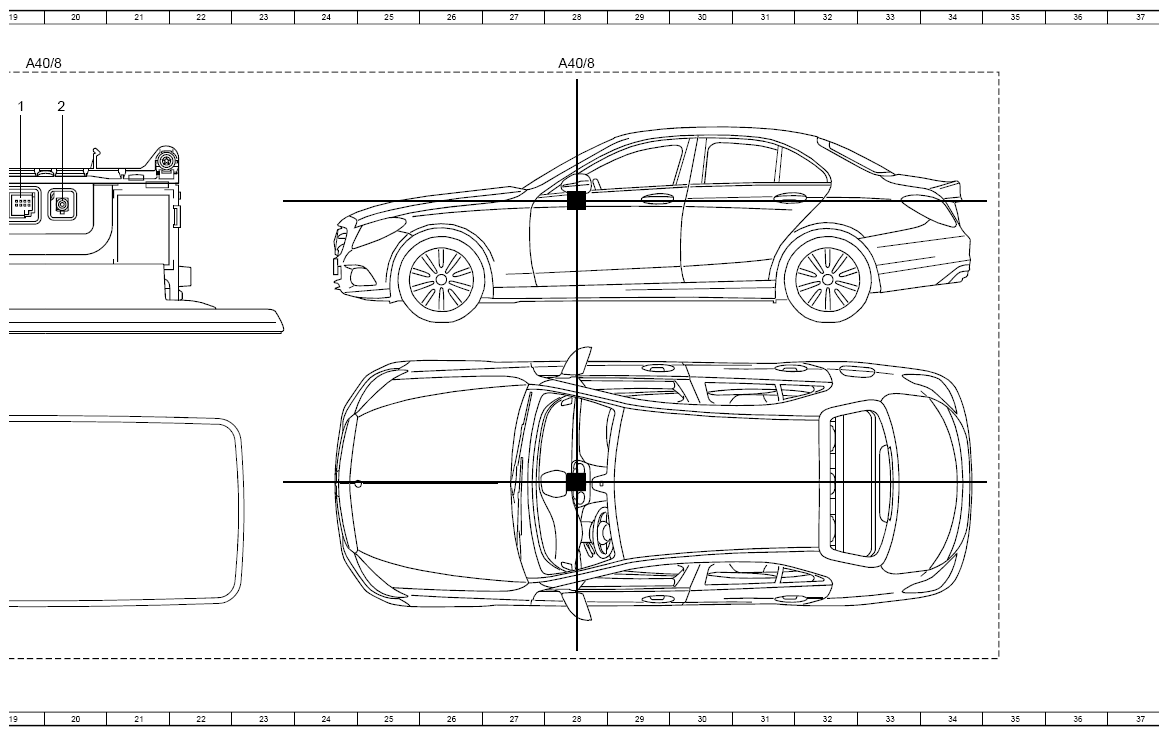

| A40/8 | Audio/COMAND display | 4A |
| A40/8 | Audio/COMAND display | 12A |
| A40/8 | Audio/COMAND display | 19A |
| A40/8 | Audio/COMAND display | 28A |
| CAN A | Telematics CAN | 11K |
| Code 506 | Audio 20 NTG 5.5 radio | 10E |
| Code 531 | COMAND APS | 10F |
| Code L | LEFT-HAND DRIVE | 6C |
| Code R | RIGHT-HAND DRIVE | 6C |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3MF1 | Multiple fuse 1 | 3K |
| W34 | Left footwell ground point | 5E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 3E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 6F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 6E |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 6G |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 8G |
