Wiring Diagram for Audio/Comand Control Panel - PE82.00-P-2063-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
as of model year 2019
with code 448 (Touchpad)
Operating unit A40/9
| Code: | Designation: | Position: |
|---|---|---|

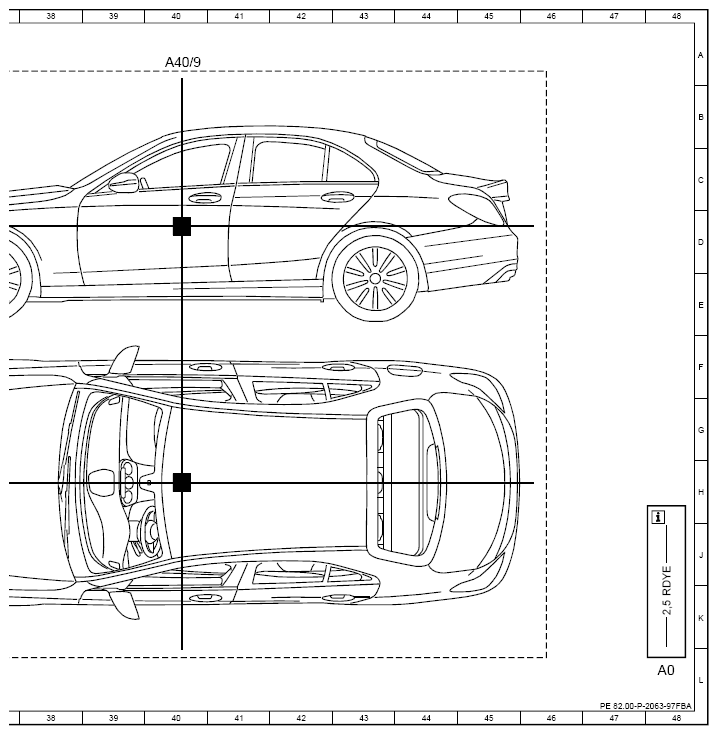

| A0 | Use of wiring diagrams | 48L |
| A26/17 | Head unit | 16L |
| A40/9 | Audio/COMAND control panel | 4A |
| A40/9 | Audio/COMAND control panel | 12A |
| A40/9 | Audio/COMAND control panel | 20A |
| A40/9 | Audio/COMAND control panel | 40A |
| A40/9 | Audio/COMAND control panel | 32A |
| A40/9 | Audio/COMAND control panel | 25A |

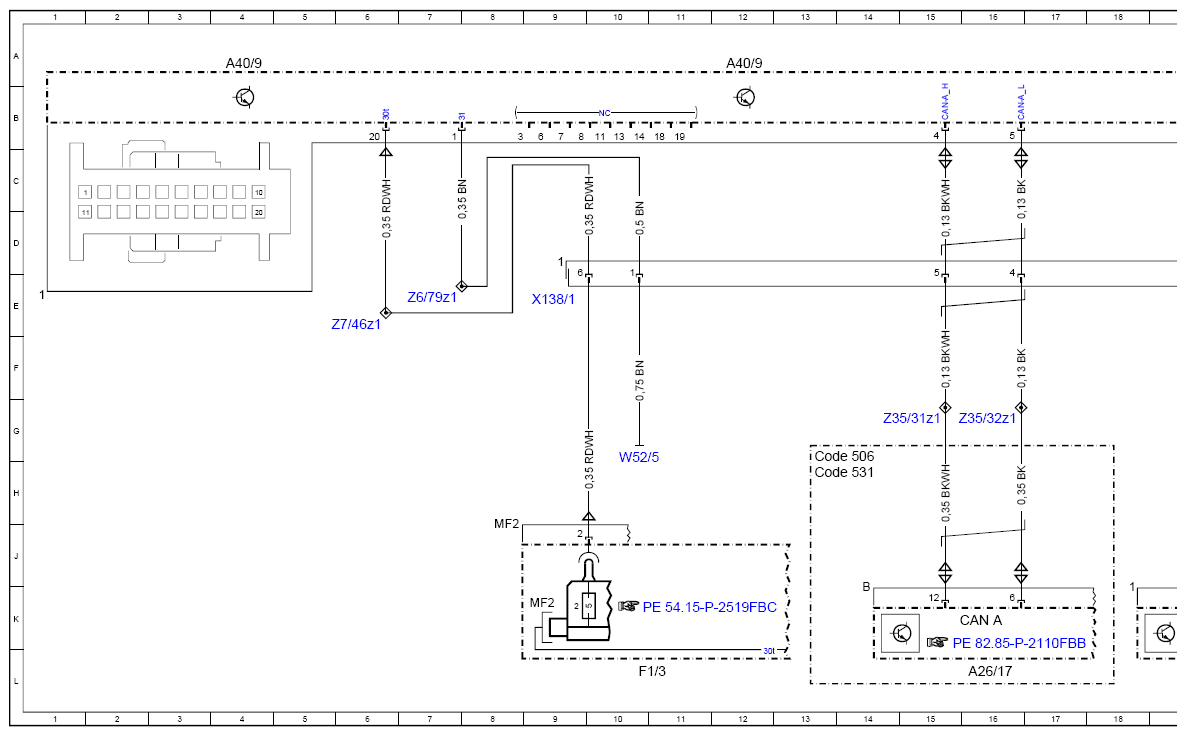

| CAN A | Telematics CAN | 16K |
| Code 506 | Audio 20 NTG 5.5 radio | 13G |
| Code 531 | COMAND APS | 13H |
| F1/3 | Passenger-side A-pillar fuse box | 10L |
| F1/3MF2 | Multiple fuse 2 | 9K |

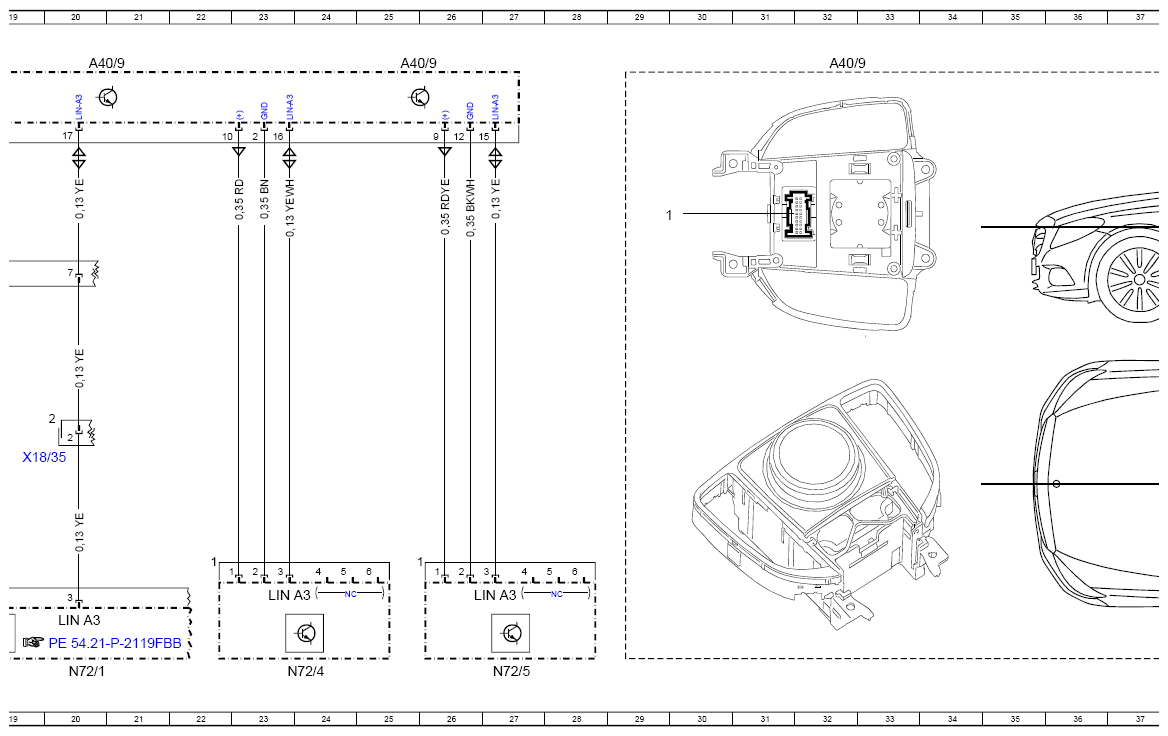

| LIN A3 | LCP LIN | 20K |
| LIN A3 | LCP LIN | 23K |
| LIN A3 | LCP LIN | 27K |
| N72/1 | Upper control panel control unit | 20L |
| N72/4 | Left lower control panel | 24L |
| N72/5 | Right lower control panel | 27L |
| W52/5 | Left center longitudinal member ground point | 10H |
| X138/1 | Front center console electrical connector | 9E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 20H |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 15G |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 16G |
| Z6/79z1 | Circuit 31 connector sleeve | 7E |
| Z7/46z1 | Circuit 30g connector sleeve | 6E |
