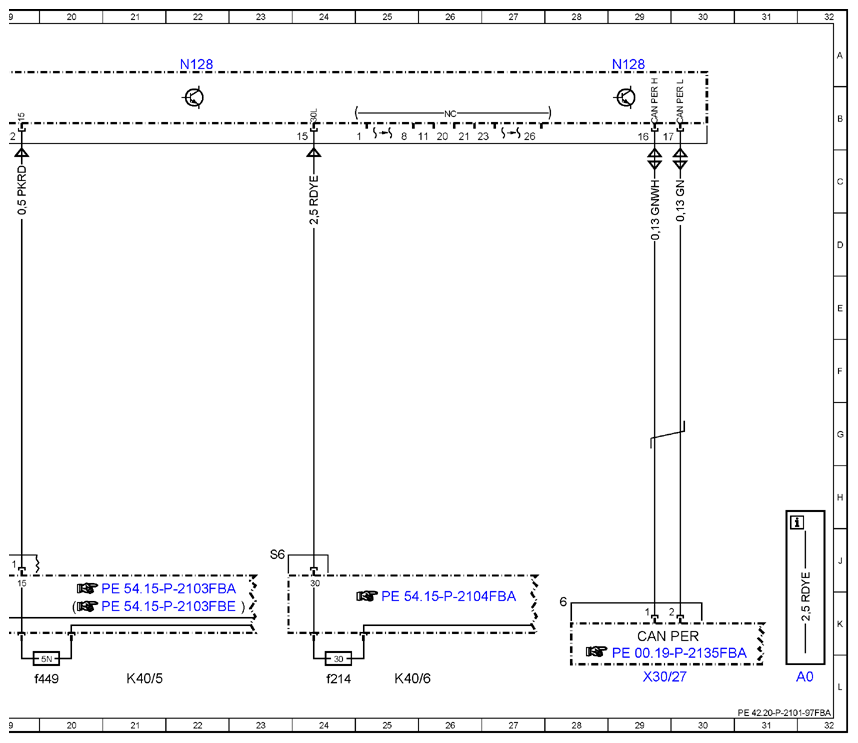

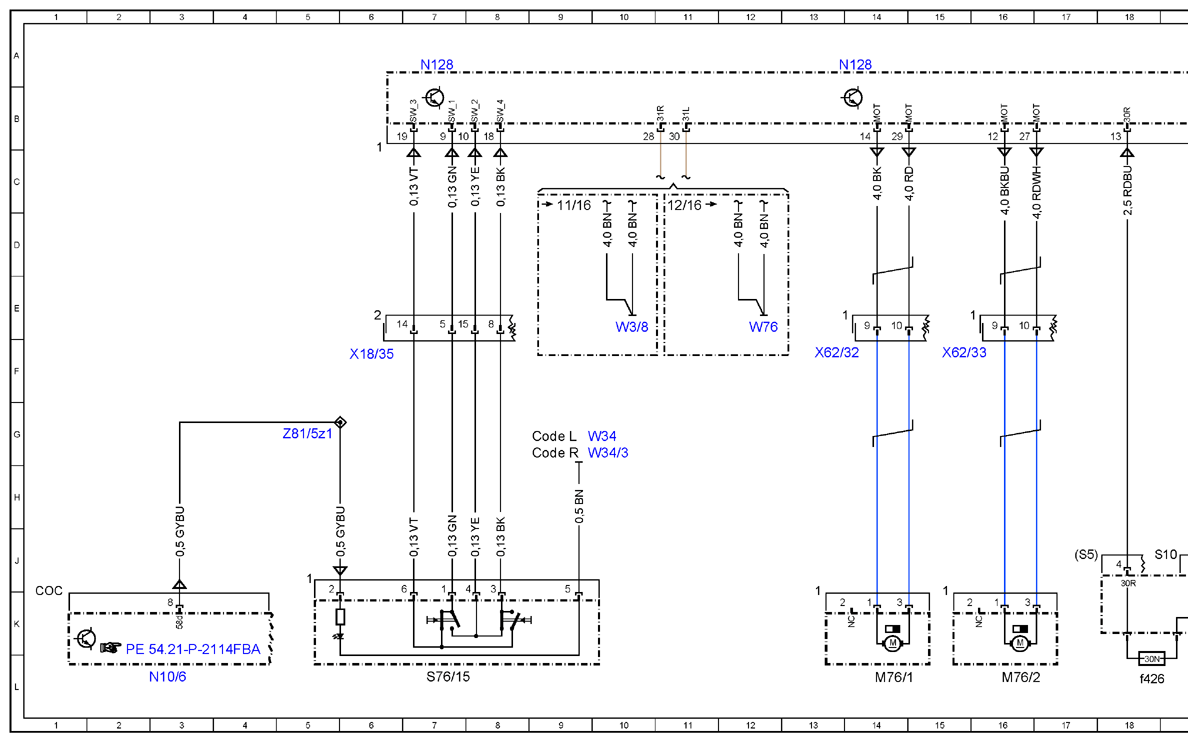

(Wiring Diagram For Electric Parking Brake - PE42.20-P-2101-97FBA)
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 with engine 177
up to model year 2019
Control unit N128
Model 253 (except 253.99) with engine 177
up to model year 2020
Control unit N128
Shown on model 205.0
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| CAN PER | Peripherals CAN | 29K |
| Code L | LEFT-HAND DRIVE | 9G |
| Code R | RIGHT-HAND DRIVE | 9G |
| K40/5 | Rear fuse and relay module | 21L |
| K40/5f426 | Fuse 426 | 18L |
| K40/5f449 | Fuse 449 | 20L |
| K40/6 | Driver-side fuse and relay module | 25L |
| K40/6f214 | Fuse 214 | 24L |
| M76/1 | Left electric parking brake actuator motor | 14L |
| M76/2 | Right electric parking brake actuator motor | 16L |
| N10/6 | Front SAM control unit | 3L |
| N128 | Electric parking brake control unit | 7A |
| N128 | Electric parking brake control unit | 14A |
| N128 | Electric parking brake control unit | 22A |
| N128 | Electric parking brake control unit | 29A |
| S76/15 | Electric parking brake switch | 7L |
| W3/8 | Right rear wheel well ground point | 10E |
| W34 | Left footwell ground point | 9G |
| W34/3 | Right footwell ground point | 9G |
| W76 | Fuel pump ground point | 12E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 6F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 29L |
| X62/32 | Rear axle electrical connector, left distributor | 13F |
| X62/33 | Rear axle electrical connector, right distributor | 15F |
| Z81/5z1 | Circuit 58d connector sleeve | 5G |
