Note On Calculation Of Tightening Torque When Using Insertion Or Socket Tools With Various Effective Lengths - AH00.00-P-0015-01CW
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model all (4xWD, CAR, Heavy transporter, Light transporter, smart)

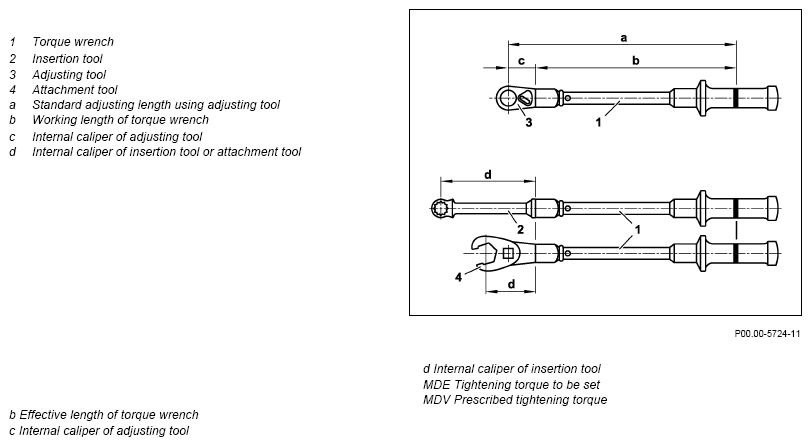

The working length of the insertion tool (2) or attachment tool (4) plugged onto the torque wrench (1) changes the leverage of the torque wrench (1). This in turn alters the actual tightening torque.
Therefore the tightening torque to be set (MDE) has to be calculated as a function of the working length of the insertion tool (2) or attachment tool (4) and the prescribed tightening torque (MDV).
The following formula is used to calculate the tightening torque (MDE) to be set:
MDE = [MDV x (b+c)]: (b+d)
