Removing Rear Head Restraint - AR91.16-P-1770LWR

WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.4

Model 238.4

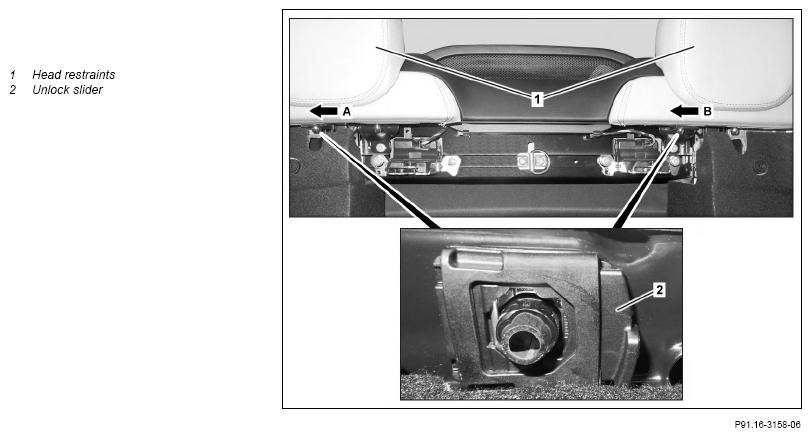

G14815130Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Release left or right backrest and fold forward
2 Slide release slide (2) of right and left head restraint (1) to the right (arrow A and arrow B) and remove relevant head restraint (1) from above INSTALLATION IMPORTANT Push head restraint (1) downwards until it engages.
3 Install in the reverse order
