Remove/Install Tilting/Sliding Roof Motor - AR77.20-P-3010LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.0/1

with code 414 (Sliding sunroof)

Model 213.0/1/2

with code 414 (Sliding sunroof)

Model 253

with code 414 (Sliding sunroof)

Model 293

with code 414 (Sliding sunroof)

Shown on model 205

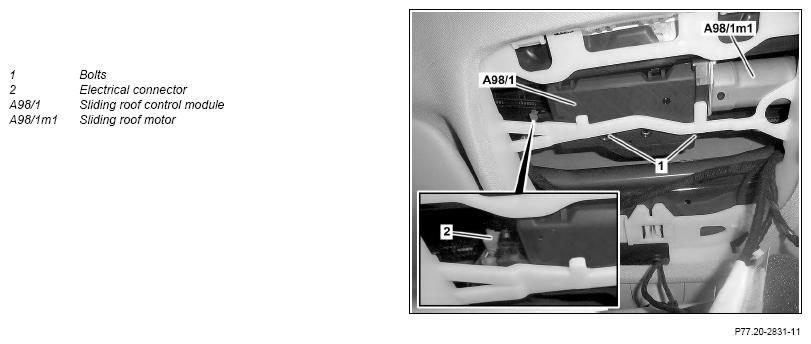

Fig 1: Tilting/Sliding Roof Motor Component Location - Model 205.0 With Code 414

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform commissioning of sliding sunroof control module (A98/1).	When replacing sliding sunroof control module (A98/1).
		Model 293 with code 414 (Sliding sunroof)	AD00.00-P-2000-06FR
		Model 205.0/1 with code 414 (Sliding sunroof) Model 213.0/1/2 with code 414 (Sliding sunroof) Model 253 with code 414 (Sliding sunroof)	AD00.00-P-2000-04B
2	Move sliding sunroof to tilt position.
3	Remove overhead control panel control unit and let hang with connected electric lines.		AR82.20-P-1000LF
4	Remove screws (1).	First screw in bolts (1) by hand and then tighten.
5	Remove sliding sunroof control module (A98/1).
6	Disconnect electrical connector (2) and remove sliding roof control module (A98/1).	The sliding roof motor (A98/1m1) is a component of the sliding roof control module (A98/1).
7	Install in the reverse order.
8	Normalize sliding sunroof.
