Remove/Install Soft Top Lock Limit Switch - AR77.39-P-3687LWR
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4

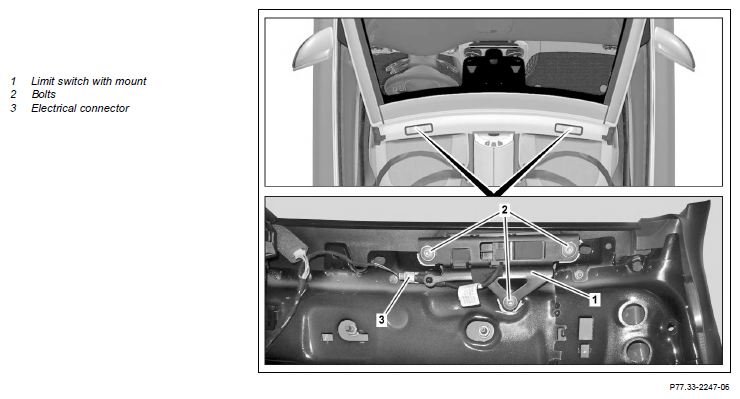

Shown on right side of vehicle on model 205.4
| Remove | |||
| 1 | Remove A-pillar paneling | AR68.30-P-4050LW | |
| 2 | Mark installation position of limit switch with mount (1) on roof frame | ||
| 3 | Unscrew bolts (2) | ||
| 4 | Disconnect electrical connection (3) | ||
| 5 | Remove limit switch with mount (1) | ||
| Install | |||
| 6 | Connect electrical connector (3) and position limit switch with mount (1) on roof frame | ||
| 7 | Tighten screws/bolts (2) | ||
| *BA77.33-P-1003-02B | |||
| *BA77.33-P-1003-02C | |||
| 8 | Fully close soft top and check whether soft top lock properly runs into limit switch with mount (1) and locks | If complaint present → Detach screws (2) and readjust limit switch with mount (1). |
|
| *BA77.33-P-1003-02B | |||
| *BA77.33-P-1003-02C | |||
| 9 | Completely open soft top | ||
| 10 | Install A-pillar paneling | AR68.30-P-4050LW |
MECHANICAL SOFT-TOP COMPONENTS
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1003-02B | Bolt, soft top lock to roof frame | Nm | 10 |
MECHANICAL SOFT-TOP COMPONENTS
| Number | Designation | Model 238.4 | |
|---|---|---|---|
| BA77.33-P-1003-02C | Bolt, soft top lock to roof frame | Nm | 10 |
