Remove/Install Roller Sun Blind Guide Rail - AR77.21-P-0231NKA
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 156, 176
with code 413 (Automatic panoramic sliding sunroof)
Model 205.0/1/2/3
with code 413 (Automatic panoramic sliding sunroof)
Model 238
with code 413 (Automatic panoramic sliding sunroof)
Model 253
with code 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

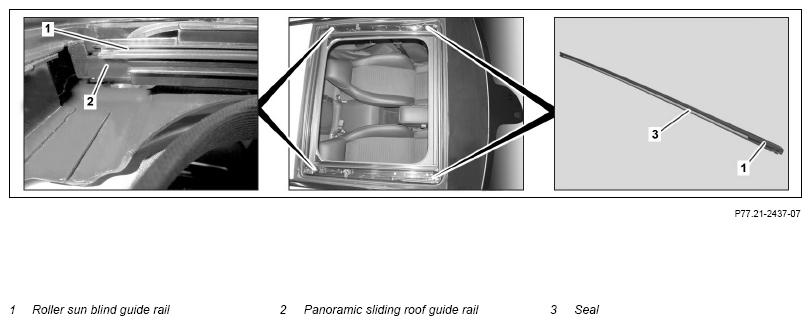

| 1 | Detach left and right panoramic sliding roof guide rail (2) | AR77.21-P-0430NKA | |
| 2 | Carefully raise panoramic roof guide rail (2) at rear and pull roller sun blind guide rail (1) toward rear out of panoramic sliding roof guide rail (2) | ||
| 3 | Install in the reverse order |
