Remove/Install Pop-Up Bracket On Tilting/Sliding Roof - AR77.20-P-1700LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.0/1
with code 414 (Electric sunroof, glass version)
Model 213.0/1/2
with code 414 (Electric sunroof, glass version)
Model 253
with code 414 (Electric sunroof, glass version)
Model 293
with code 414 (Electric sunroof, glass version)

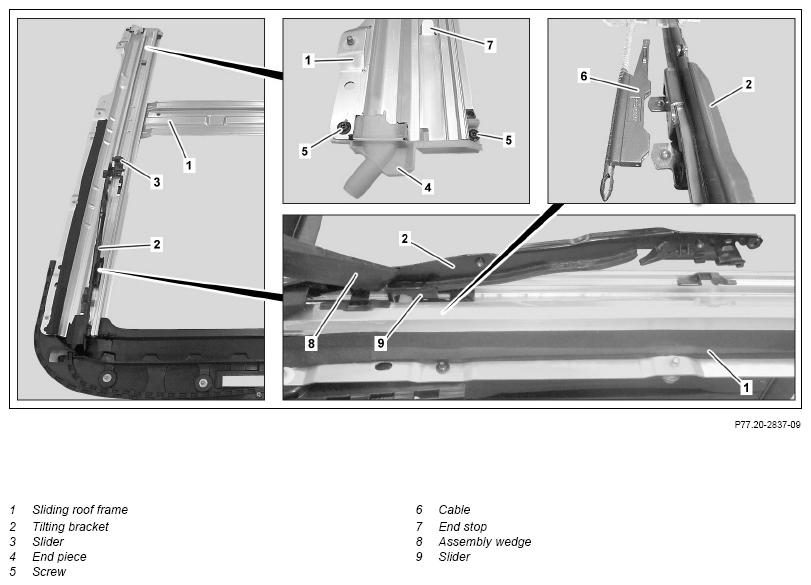

Shown on right side of sliding roof frame (1)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove sliding sunroof frame (1). | Model 205.0/1 with code 414 (Electric sunroof, glass version |
AR77.20-P-3000LWE |
| Model 213.0/1/2 with code 414 (Electric sunroof, glass version Model 253 with code 414 (Electric sunroof, glass version Model 293 with code 414 (Electric sunroof, glass version |
AR77.20-P-3000LW | ||
| 2 | Remove screws (5) on the left and right side of the sliding roof frame (1). | ||
| 3 | Remove end piece (4) on left and right side of sliding roof frame (1). | Otherwise leakage can occur on sliding roof frame (1). |
|
| 4 | Bend end stops (7) on the left and right side downward. | ||
| 5 | Remove sliders (3) from sliding roof frame (1). | ||
| 6 | Remove sliders (9) from sliding roof frame (1) with assembly wedge (8). | ||
| Fig 1 | |||
| 7 | Unclip cable (6) from tilting brackets (2) and remove. | ||
| 8 | Install in the reverse order. |
