Remove/Install Limit Switch For Front Soft Top Lock - AR77.39-P-3679LWR
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4
| Remove/install | |||
| 1 | Remove electric motor for soft top lock | AR77.39-P-5000LCA | |

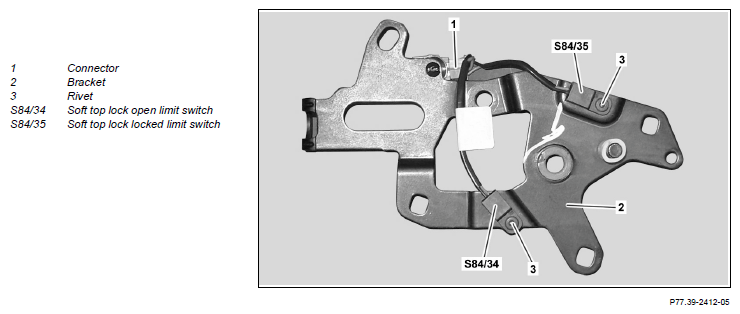

| 2 | Unclip connector (1) from bracket (2) | ||
| 3 | Knock rivets (3) off of bracket (2) and remove rivet residues | ||
| 4 | Remove soft top lock open limit switch (S84/34) with soft top lock locked limit switch (S84/35) | ||
| 5 | Install in the reverse order |
