Remove/Install Guide Tube For Roller Sun Blind Drive Cable - AR77.21-P-0232NKX
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 156
with code 413 (Automatic panoramic sliding sunroof)
Model 205.0/1/2
with code 413 (Automatic panoramic sliding sunroof)
Model 253
with code 413 (Automatic panoramic sliding sunroof)

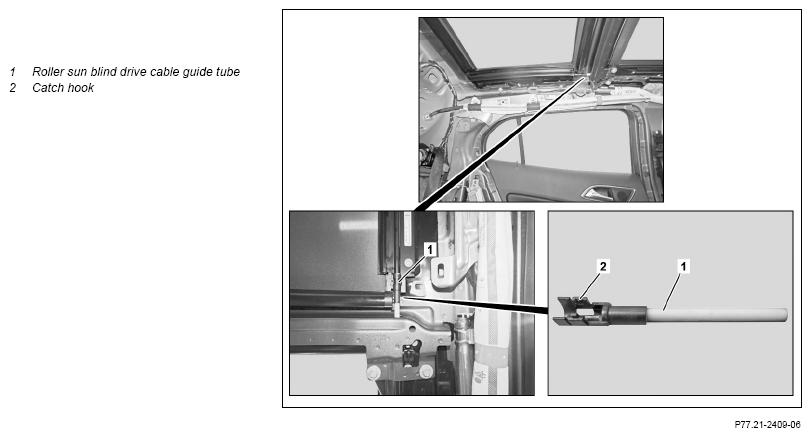

Shown on left side of vehicle on model 156
| Remove/install | |||
| 1 | Completely open rear roller sun blind | ||
| 2 | Remove left and right side headliner until roller sun blind drive cable guide tube (1) is accessible | Model 156 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300NKX |
| Model 205.0/1 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300LW | ||
| Model 205.2 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300LWS | ||
| 3 | Unclip until roller sun blind drive cable guide tube (1) from catch hooks (2) and remove | ||
| 4 | Install in the reverse order |
