Connection Scheme For Pressure Test - AR77.37-P-4205-02LWR

WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.4

Model 217.4

Model 238.4

Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid.

Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.

AS00.00-Z-0013-01A

Fig 1: Identifying Valve Block (230 589 00 91 00)

G13847957

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (171 589 00 91 00)

G13847955

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Tester (126 589 14 21 00)

G10248482

Courtesy of MERCEDES-BENZ USA

The following special tools are required: valve block, adapter and test device.

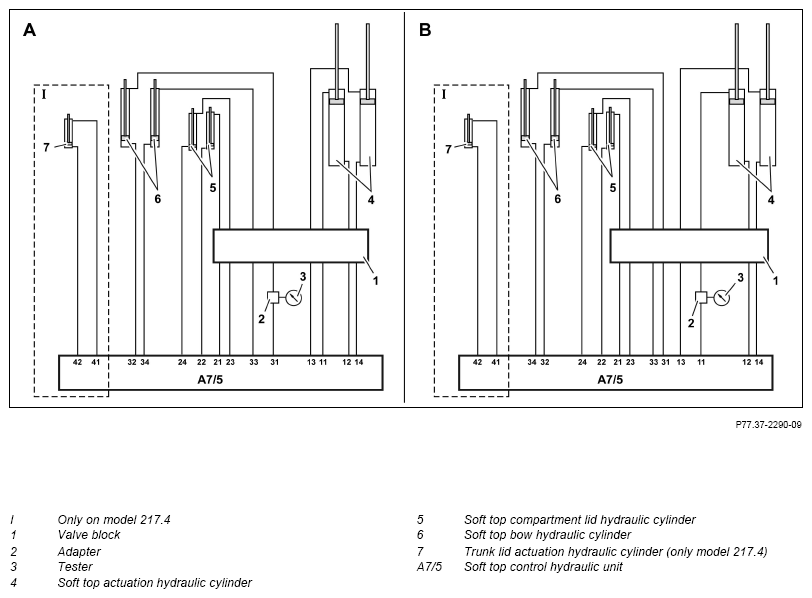

G15041334

Courtesy of MERCEDES-BENZ USA

Connection diagram A and B

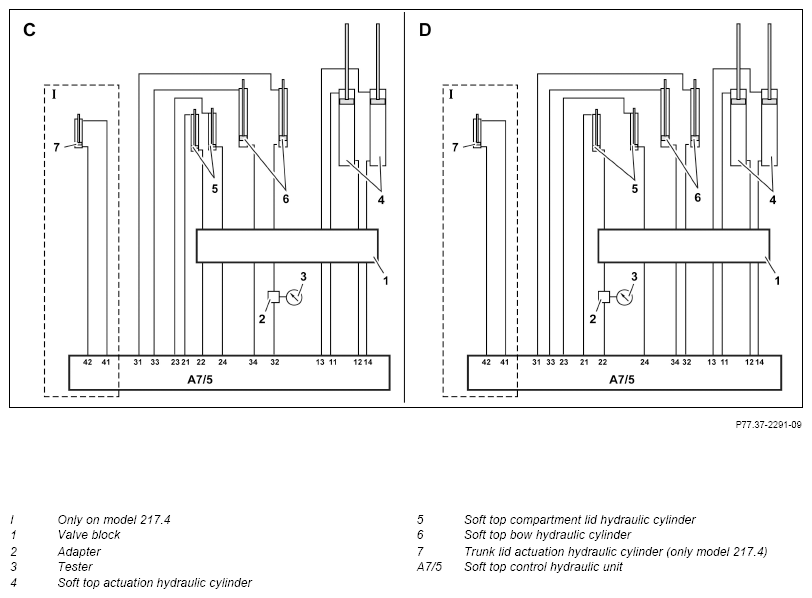

G15041335

Courtesy of MERCEDES-BENZ USA

Connection diagram C and D

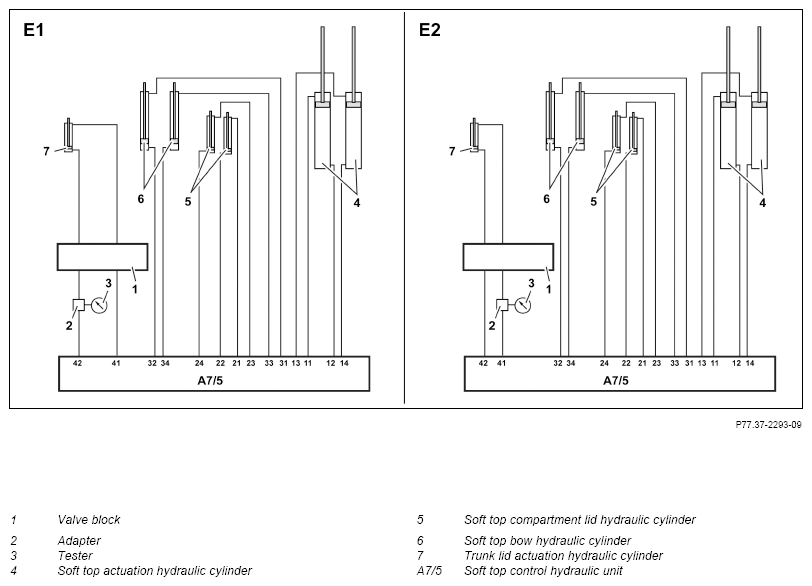

G15041336

Courtesy of MERCEDES-BENZ USA

Model 217.4, connection diagram E1 and E2
