Adjust Cables For Header Bows - AR77.33-P-1051LWP
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4
MODIFICATION NOTES
| 02.08.2017 | Moving soft top to repair position R4 added. | Operation step 12 |

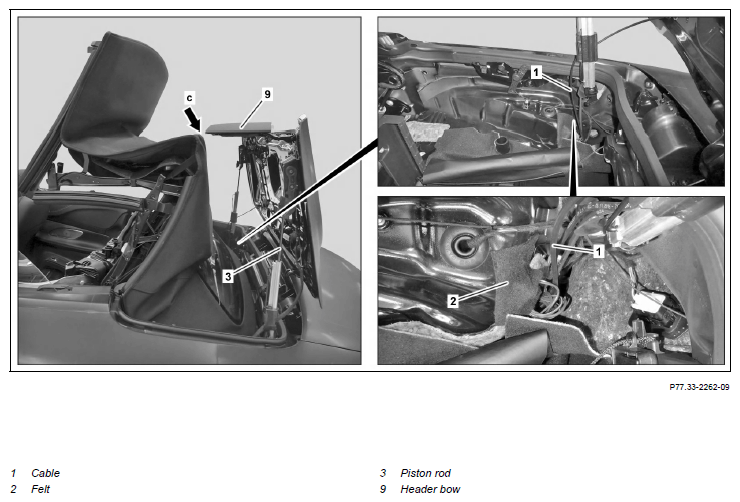

Shown on left side of vehicle

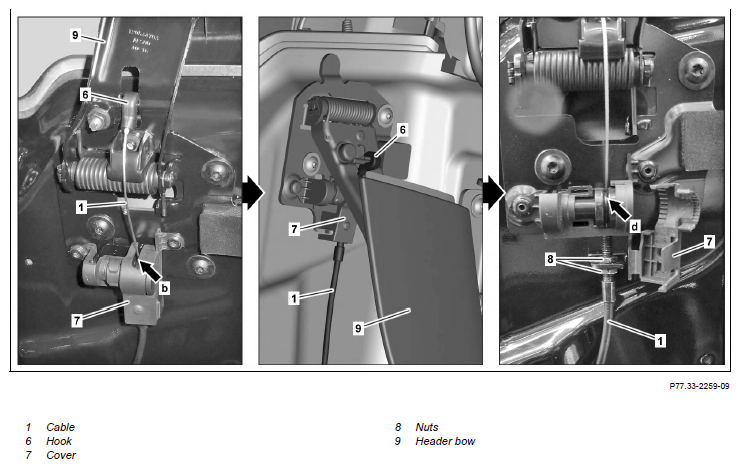

Shown on left side of vehicle
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Preparation | |||
| 1 | Move soft top to repair position R4 | AR77.30-P-1030LWR | |
Soft top, header bows (9) or cables (1) can otherwise be damaged. If a collision occurs between soft top and header bows (9). → Immediately stop the move soft top to repair position process R4. |
|||
| 2 | Fold in relevant header bow (9) by hand, secure with cable tie and move soft top to repair position R4 | Only in case of collision between soft top and header bows (9). | |
| AR77.30-P-1030LWR | |||
| 3 | Unclip covers (7) and fold to side | ||
| Check | |||
| 4 | Check whether hooks (6) are attached with opening facing toward rear | In case of attached hooks (6) with opening facing forward. → Detach hooks (6) and attach again with opening facing backward. |
|
| 5 | Move soft top to repair position R5 | AR77.30-P-1030LWR | |
| 6 | Check whether felt (2) on right side of vehicle is attached over ground point | Where felt (2) is missing. → Attach felt (2) as chafe protection over ground point. |
|
| Felt strip | *BR00.45-Z-1183-02A | ||
| Adjust | |||
| 7 | Remove cable tie from relevant header bow (9) | After collision between soft top and header bows (9). | |
| 8 | Detach nuts (8) from cables (1) | ||

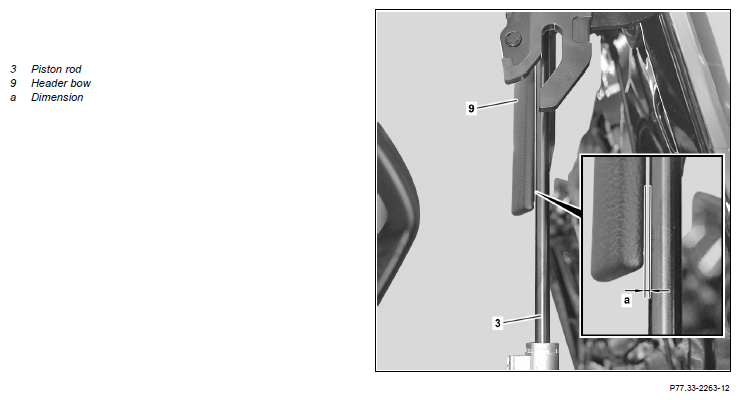

| 9 | Adjust header bows (9) parallel to piston rod (3) by adjusting cables (1) | Header bows (9) must be in the direction of travel in front of piston rod (3). |
|
| Distance of header bow to piston rod for hydraulic cylinder of soft top compartment cover | *BE77.33-P-1001-02B | ||
| 10 | Tighten nuts (8) on cables (1) | ||
| 11 | Press header bows (9) once toward rear and release again | In the case of complaints. → Adjust cables (1) again. |
|
| Distance of header bow to piston rod for hydraulic cylinder of soft top compartment cover | *BE77.33-P-1001-02B | ||
| 12 | Move soft top to repair position R4 | AR77.30-P-1030LWR | |
| 13 | Close covers (7) | ||
| 14 | Close soft top |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | Model 238.4 | ||
|---|---|---|---|---|---|
| BE77.33-P-1001-02B | Distance of header bow to piston rod for hydraulic cylinder of soft top compartment cover | Dimension "a" | mm | 0...6 | 0...6 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1183-02A | Felt strip | A 001 983 50 10 |
