Overview Of System Components For Soft Top, Component Description - GF77.30-P-9997RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4

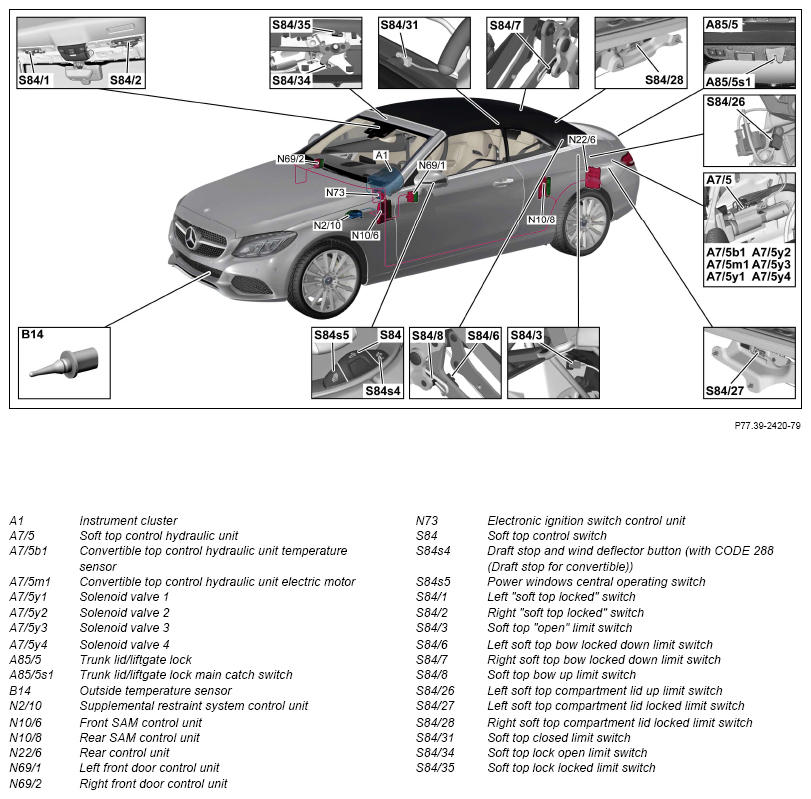

Soft top control

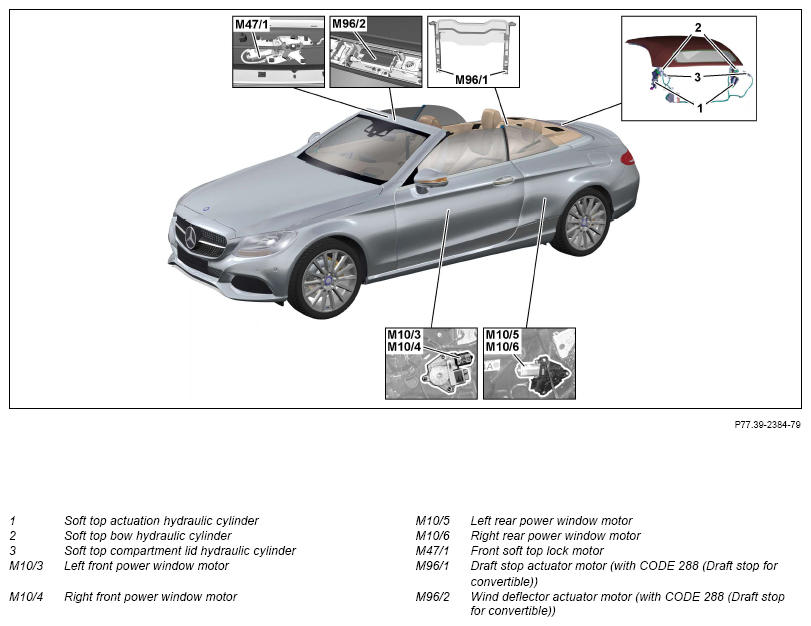

Soft top control, power window

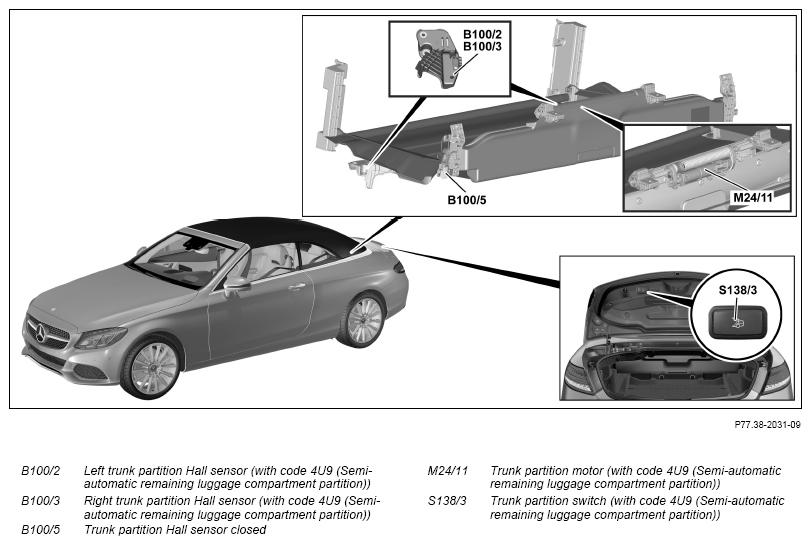

Trunk partition
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Rear control unit, component description | N22/6 | GF54.21-P-4134RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for the electronic ignition lock control unit | Model 205.4 up to model year 2019 N73 |
GF80.57-P-6001RF | |
| Model 205.4 as of model year 2019 N73 |
GF80.57-P-6001RFM | ||
| Table of contents for function description of soft top | GF77.30-P-0999RF |
