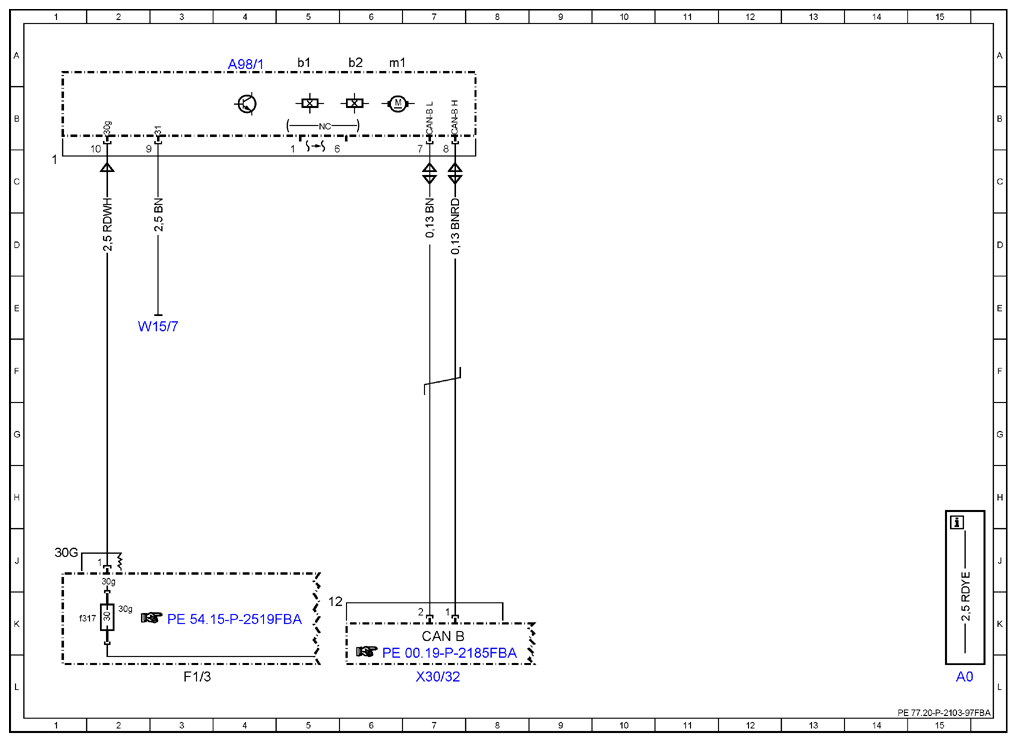

(Wiring Diagram For Sliding Roof Control Module - PE77.20-P-2103-97FBA)
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 with code 414 (Sliding sunroof) Control unit A98/1
Model 253 (except 253.99) up to model year 2020 with code 414 (Sliding sunroof) Control unit A98/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A98/1 | Sliding roof control module | 4A |
| A98/1b1 | Hall sensor 1, sliding roof | 5A |
| A98/1b2 | Hall sensor 2, sliding roof | 6A |
| A98/1m1 | Sliding roof motor | 6A |
| CAN B | Interior CAN | 7K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f317 | Fuse 317 | 1K |
| W15/7 | Right front footwell ground point | 2E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 7L |
