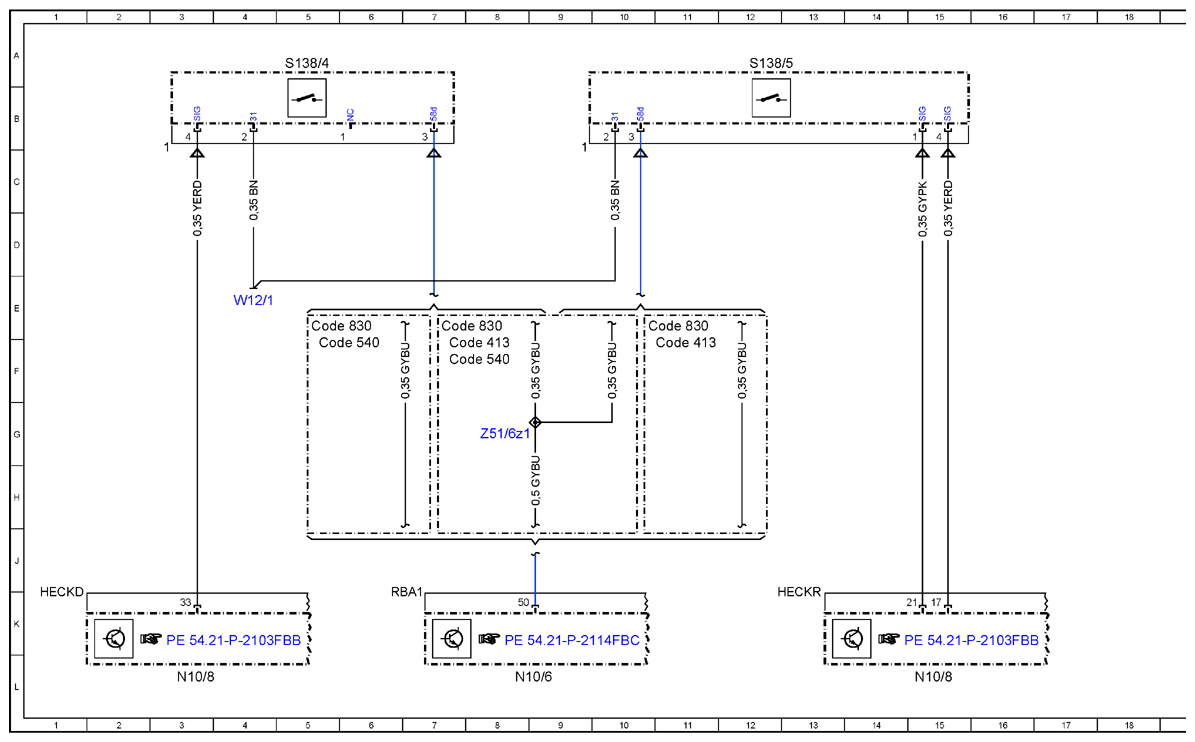

Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97FBC
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 As Of Model Year 2019 With Code 413 (Panoramic Sliding Sunroof/Glass Roof) With Code 540 (Electric Roller Blind For Rear Window) With Code 830 (China Version)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code 413 | Panoramic sliding sunroof | 7F |
| Code 413 | Panoramic sliding sunroof | 11F |
| Code 540 | Electric roller sun blind for rear window | 5F |
| Code 540 | Electric roller sun blind for rear window | 7F |
| Code 830 | Additional parts for China vehicles | 5E |
| Code 830 | Additional parts for China vehicles | 7E |
| Code 830 | Additional parts for China vehicles | 10E |
| N10/6 | Front SAM control unit | 8L |
| N10/8 | Rear SAM control unit | 3L |
| N10/8 | Rear SAM control unit | 15L |
| S138/4 | Rear window roller sun blind button | 5A |
| S138/5 | Panoramic sliding sunroof roller sun blind button | 12A |
| W12/1 | Right center console ground point | 4E |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 8G |
