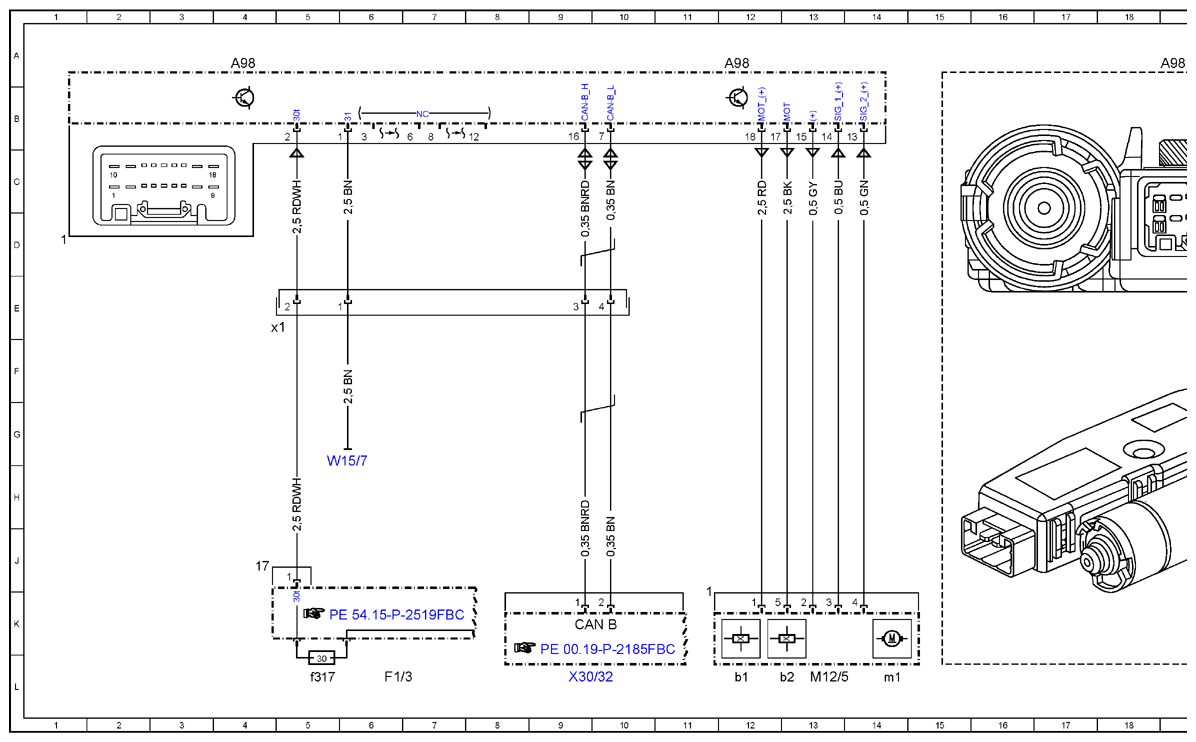

Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 As Of Model Year 2019 With Code 413 (Panoramic Sliding Sunroof/Glass Roof) Except Code 540 (Electric Roller Blind For Rear Window) Except Code 830 (China Version) Control Module 98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |

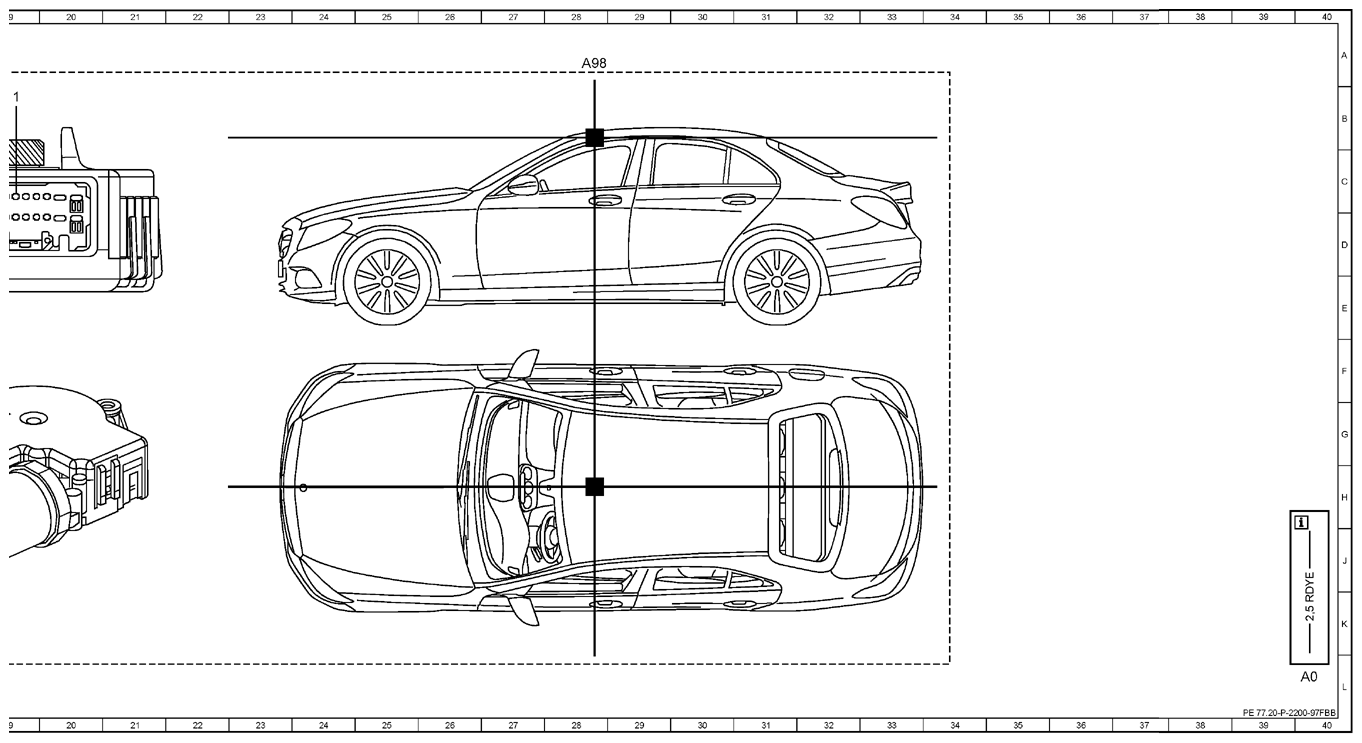

| A98 | Panoramic sliding roof control module | 4A |
| A98 | Panoramic sliding roof control module | 12A |
| A98 | Panoramic sliding roof control module | 19A |
| A98 | Panoramic sliding roof control module | 28A |
| A98x1 | Panoramic sliding sunroof control module electrical connector | 5E |
| CAN B | Interior CAN | 9K |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| F1/3f317 | Fuse 317 | 5L |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 13L |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 12L |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 13L |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 14L |
| W15/7 | Right front footwell ground point | 5H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 9L |
