Panoramic Sliding Roof - Clean And Lubricate Guide Mechanism - AP77.20-P-7732CW
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 117, 156, 176, 204, 205, 242, 246
with CODE 413 (Panoramic glass roof with top sliding roof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Clean and lubricate | |||

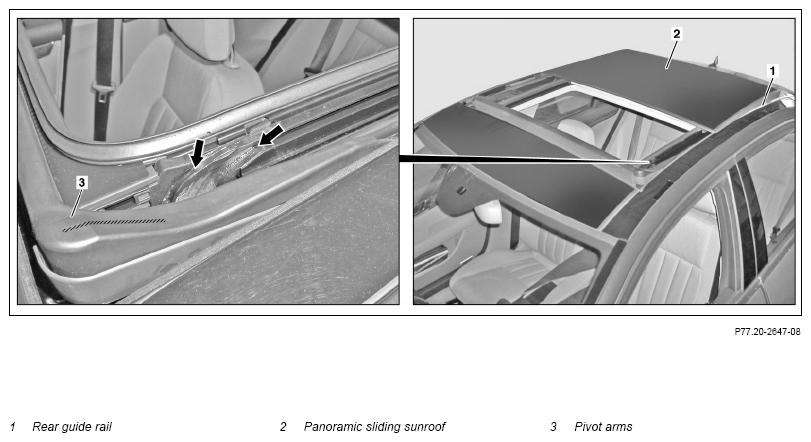

| 1 | Drip three drops of special sliding roof antifriction agent into each rear guide rail (1) | Special lubricant | *BR00.45-Z-1055-06A |
| 2 | Switch on ignition and open panoramic sliding roof (2) | ||
| 3 | Use rag to clean crosshatched area of wind deflector pivot arms (3) | ||
| 4 | Clean the upper and lower guide rails (arrows) over the entire length with rags | ||
| 5 | Apply thin coating of grease to crosshatched area of wind deflector pivot arms (3) | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | *BR00.45-Z-1004-06A |
| 6 | Coat contact surfaces of upper and lower guide rails (arrows) over the entire length with a thin coating of grease | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | *BR00.45-Z-1004-06A |
| 7 | Perform function test on panoramic sliding roof (2) | ||
| 8 | Remove excess grease | ||
| 9 | Close panoramic sliding roof (2) and switch off ignition |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | A 001 989 46 51 |
| BR00.45-Z-1055-06A | Special lubricant | A 000 989 36 60 |
