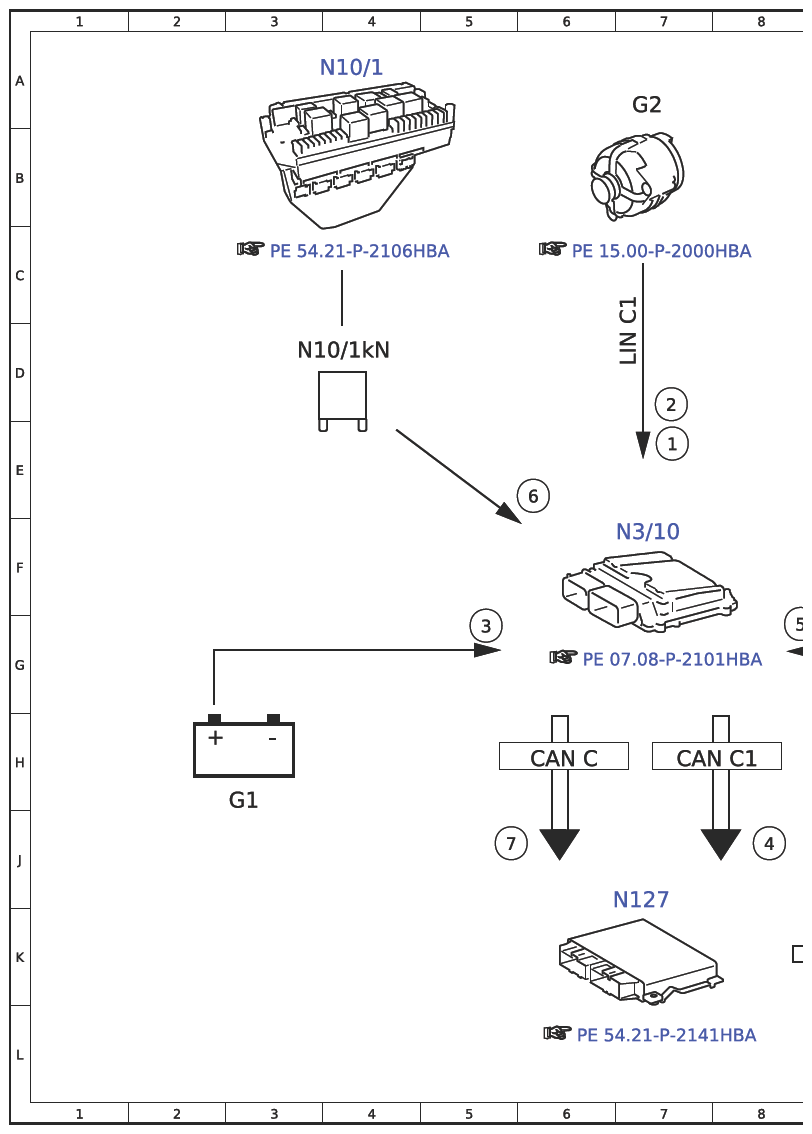

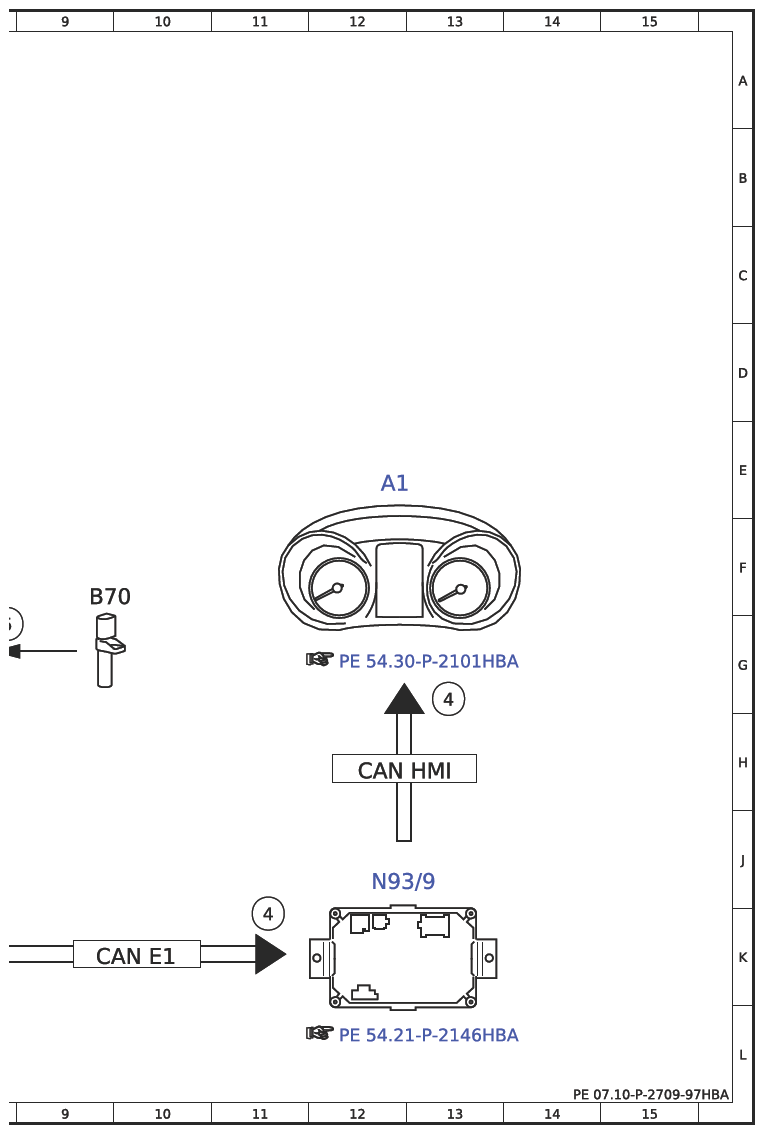

Electrical Function Schematic, Alternator Interface - PE07.10-P-2709-97HBA
Engine 178.9 In Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Alternator, status | 7E |
| 2 | Circuit 61, status | 7D |
| 3 | Circuit 30, status | 5G |
| 4 | Instrument cluster, message | 13G |
| 4 | Instrument cluster, message | 11K |
| 4 | Instrument cluster, message | 8J |
| 5 | Engine speed, signal | 8G |
| 6 | Circuit 87, status | 6E |
| 7 | Engine running, signal | 5J |
| A1 | Instrument cluster | 12E |
| B70 | Crankshaft Hall sensor | 9F |
| CAN C | Engine CAN | 6H |
| CAN C1 | Drive train CAN | 7H |
| CAN E1 | Chassis CAN 1 | 10K |
| CAN HMI | User interface CAN | 12H |
| G1 | On-board electrical system battery | 3H |
| G2 | Alternator | 7A |
| LIN C1 | Drive train LIN | 7D |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1kN | Engine circuit 87 relay | 4D |
| N127 | Drivetrain control unit | 7J |
| N3/10 | ME-SFI [ME] control unit | 7F |
| N93/9 | AMG gateway control unit | 12J |
