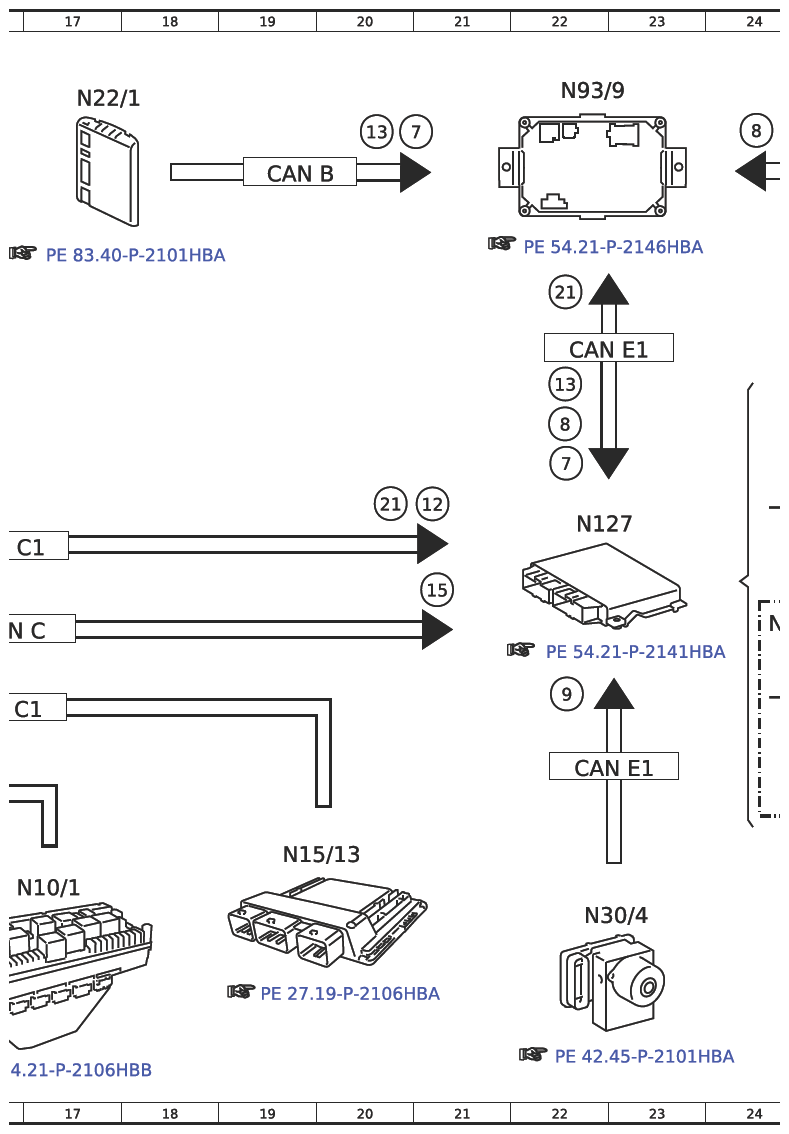

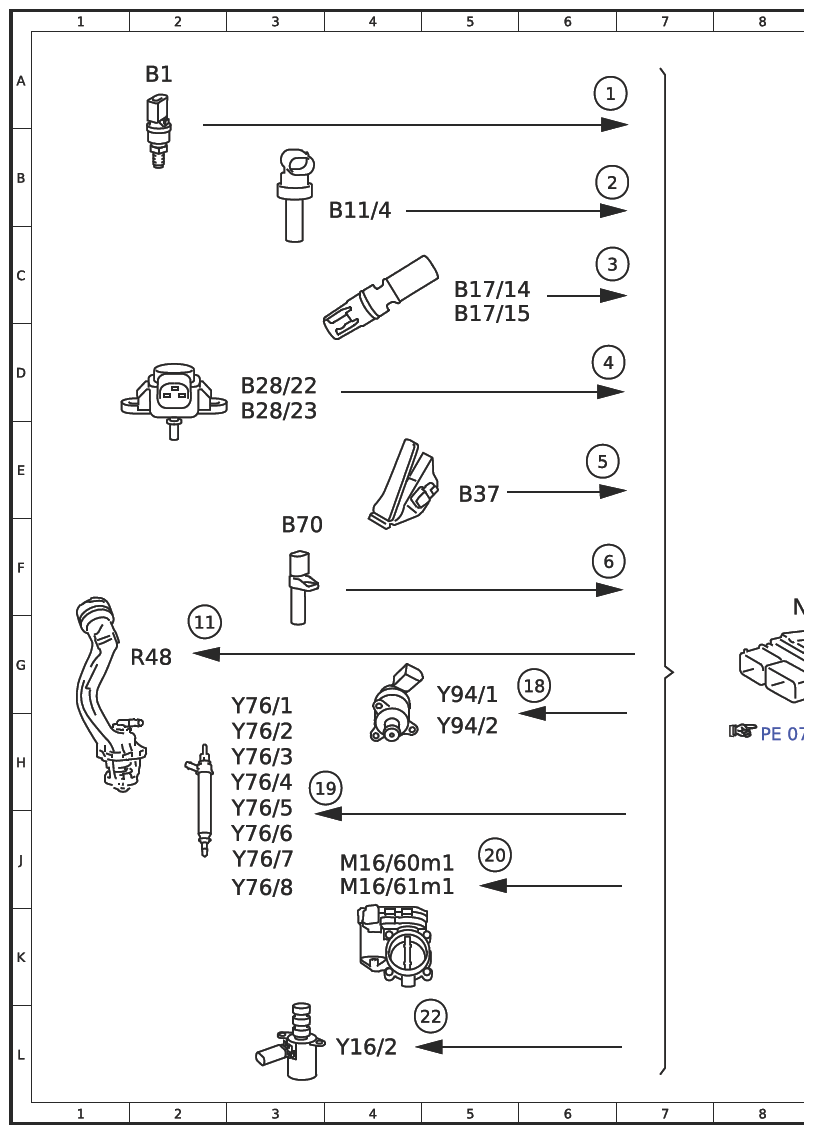

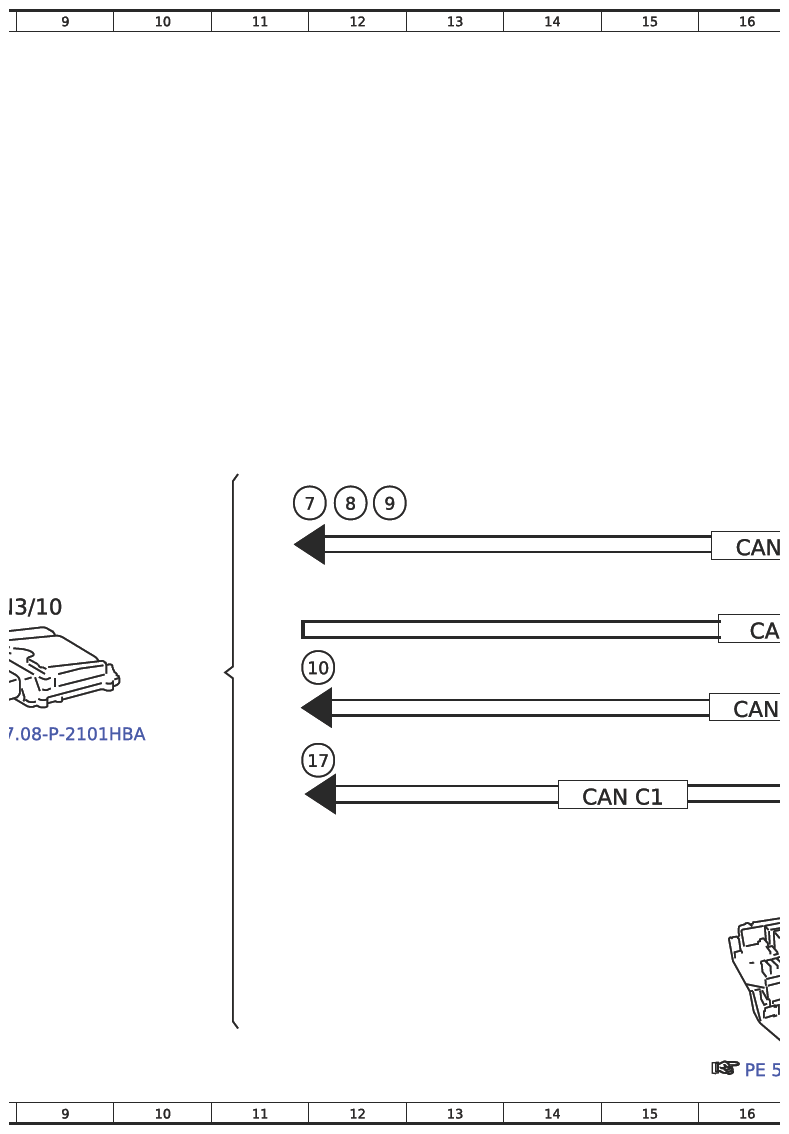

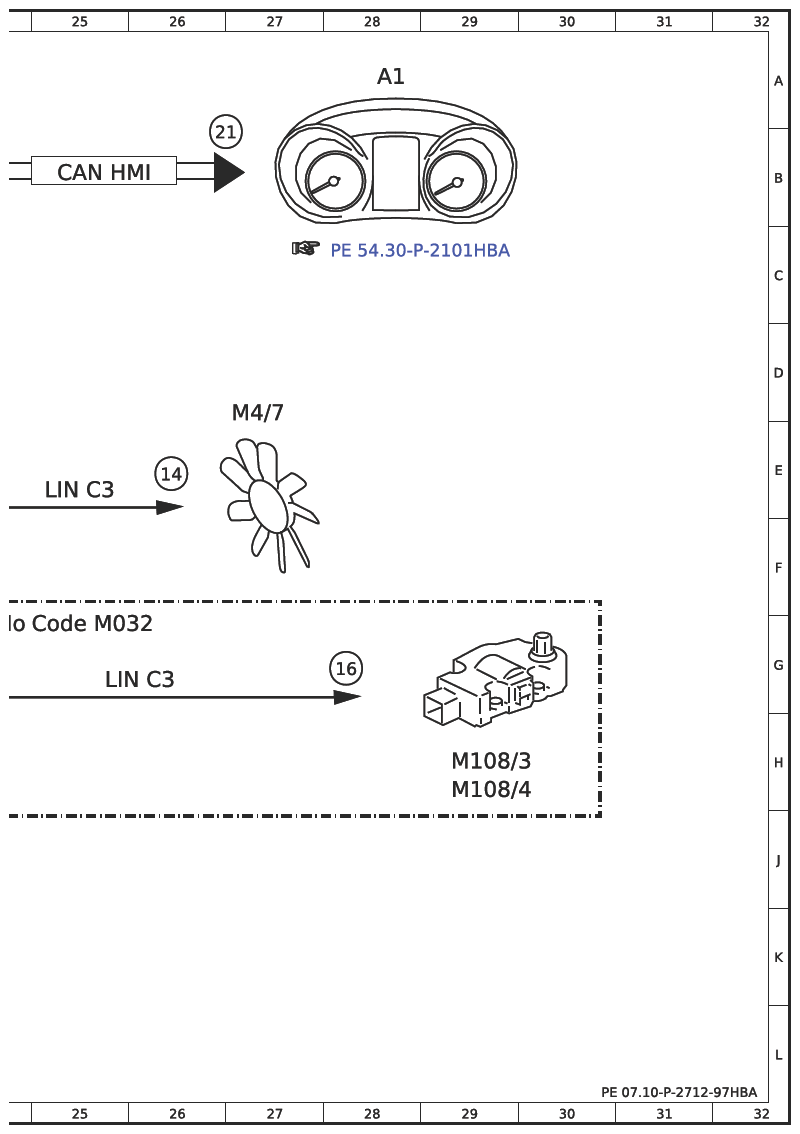

Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97HBA
Engine 178.9 In Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Oil temperature sensor, signal | 6A |
| 10 | Transmission oil temperature sensor, signal | 12G |
| 11 | Coolant thermostat heating element, actuation | 2G |
| 12 | Fan motor, specified RPM request | 21E |
| 13 | Fan motor, request | 20B |
| 13 | Fan motor, request | 22D |
| 14 | Fan motor, actuation | 26E |
| 15 | Air regulation system actuator motor, request | 21F |
| 16 | Air regulation system actuator motor, actuation | 28G |
| 17 | Outside temperature, signal | 12H |
| 18 | Quantity control valve, actuation | 6G |
| 19 | Fuel injectors, actuation | 3H |
| 2 | Coolant temperature sensor, signal | 6B |
| 20 | Throttle valve actuator motor, actuation | 5J |
| 21 | Instrument cluster, request | 26B |
| 21 | Instrument cluster, request | 20E |
| 21 | Instrument cluster, request | 22C |
| 22 | Heating system shutoff valve, actuation | 5L |
| 3 | Charge air temperature sensor, signal | 6C |
| 4 | Pressure sensor downstream of throttle valve, signal | 6D |
| 5 | Accelerator pedal sensor, signal | 6E |
| 6 | Crankshaft Hall sensor, signal | 6F |
| 7 | Air conditioning, status | 21B |
| 7 | Air conditioning, status | 22E |
| 7 | Air conditioning, status | 11E |
| 8 | Vehicle speed, signal | 24B |
| 8 | Vehicle speed, signal | 22E |
| 8 | Vehicle speed, signal | 12E |
| 9 | Wheel speed, signal | 22G |
| 9 | Wheel speed, signal | 12E |
| A1 | Instrument cluster | 28A |
| B1 | Engine oil temperature sensor | 2A |
| B11/4 | Coolant temperature sensor | 4B |
| B17/14 | Left charge air temperature sensor | 5C |
| B17/15 | Right charge air temperature sensor | 5C |
| B28/22 | Left pressure sensor downstream of throttle valve | 3D |
| B28/23 | Right pressure sensor downstream of throttle valve | 3D |
| B37 | Accelerator pedal sensor | 5E |
| B70 | Crankshaft Hall sensor | 3F |
| CAN B | Interior CAN | 19B |
| CAN C | Engine CAN | 16G |
| CAN C1 | Drive train CAN | 16F |
| CAN C1 | Drive train CAN | 16H |
| CAN C1 | Drive train CAN | 15H |
| CAN E1 | Chassis CAN 1 | 22D |
| CAN E1 | Chassis CAN 1 | 22H |
| CAN HMI | User interface CAN | 25B |
| Code M032 | Black Series version | 25G |
| LIN C3 | Drivetrain LIN | 25E |
| LIN C3 | Drivetrain LIN | 25G |
| M108/3 | Left air regulation system actuator motor | 29H |
| M108/4 | Right air regulation system actuator motor | 29H |
| M16/60m1 | Left throttle valve actuator motor | 4J |
| M16/61m1 | Right throttle valve actuator motor | 4J |
| M4/7 | Fan motor | 27D |
| N10/1 | Front SAM control unit with fuse and relay module | 17J |
| N127 | Drivetrain control unit | 22F |
| N15/13 | Double clutch transmission control unit | 19J |
| N22/1 | Climate control control unit | 17A |
| N3/10 | ME-SFI [ME] control unit | 9F |
| N30/4 | Electronic Stability Program control unit | 22K |
| N93/9 | AMG gateway control unit | 22A |
| R48 | Coolant thermostat heating element | 2G |
| Y16/2 | Heating system shutoff valve | 4L |
| Y76/1 | Cylinder 1 fuel injector | 3G |
| Y76/2 | Cylinder 2 fuel injector | 3H |
| Y76/3 | Cylinder 3 fuel injector | 3H |
| Y76/4 | Cylinder 4 fuel injector | 3H |
| Y76/5 | Cylinder 5 fuel injector | 3J |
| Y76/6 | Cylinder 6 fuel injector | 3J |
| Y76/7 | Cylinder 7 fuel injector | 3J |
| Y76/8 | Cylinder 8 fuel injector | 3J |
| Y94/1 | Left quantity control valve | 5G |
| Y94/2 | Right quantity control valve | 5H |
