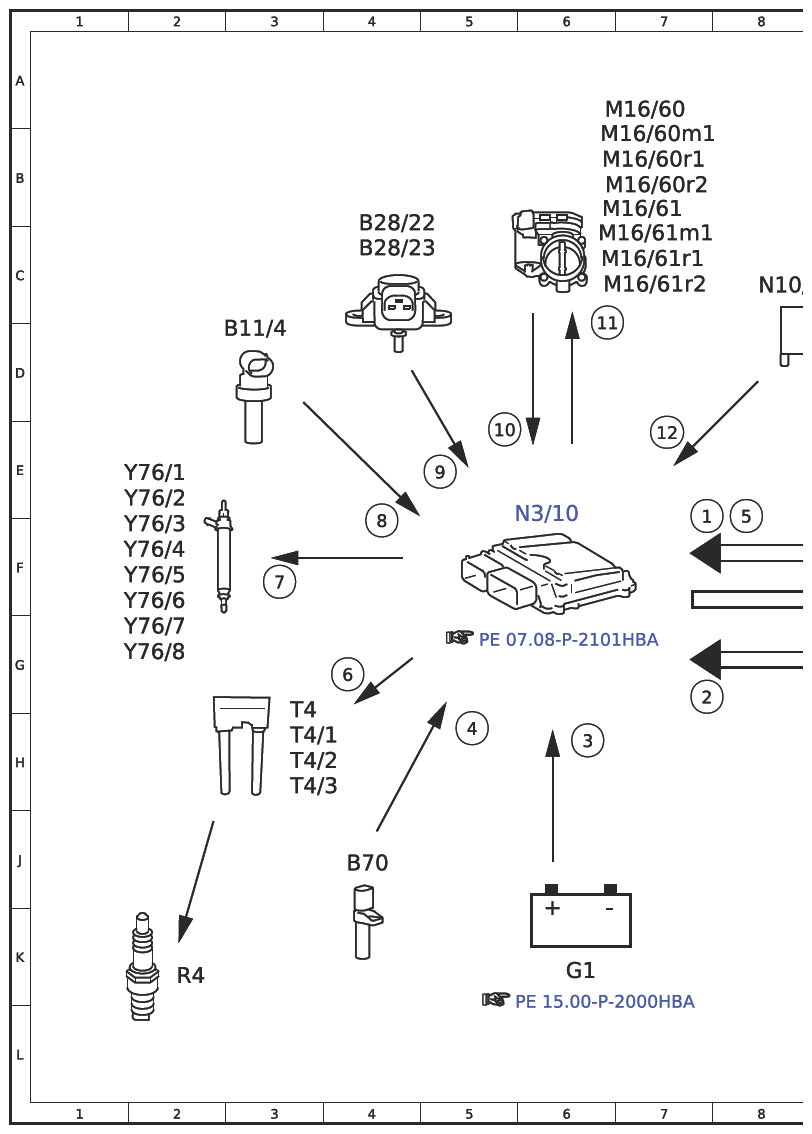

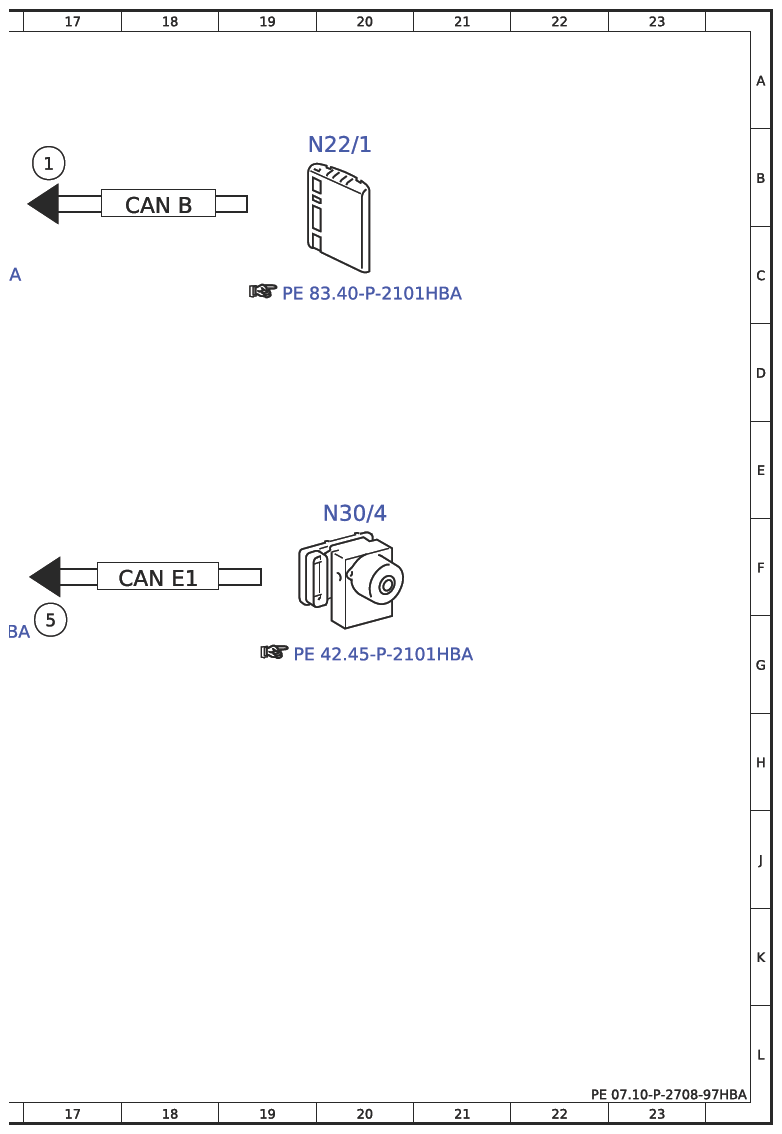

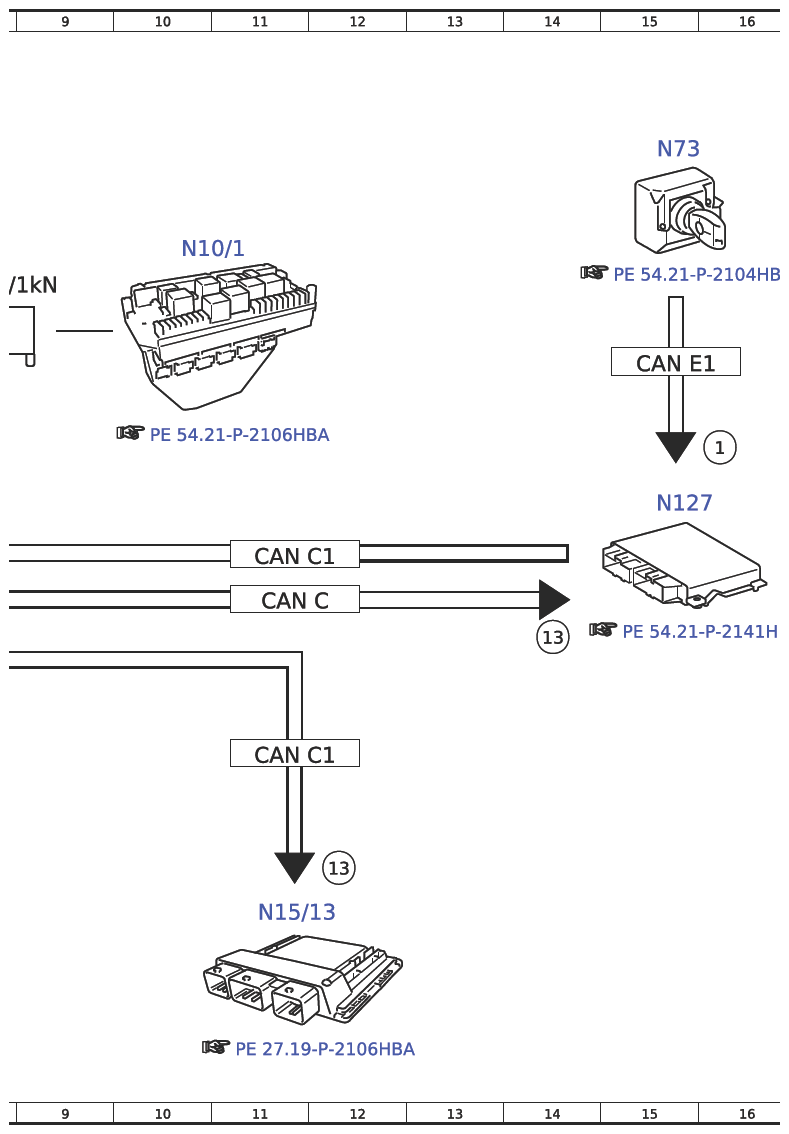

Electrical Function Schematic For RPM Control - PE07.10-P-2708-97HBA
Engine 178.9 In Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 7F |
| 1 | Air conditioning, status | 16E |
| 1 | Air conditioning, status | 17B |
| 10 | Throttle valve position, signal | 5E |
| 11 | Throttle valve actuator motor, actuation | 6D |
| 12 | Circuit 87, status | 7E |
| 13 | Engine running, signal | 12J |
| 13 | Engine running, signal | 14G |
| 2 | Gear range, status | 7G |
| 3 | Circuit 30, status | 6H |
| 4 | Engine speed, signal | 5H |
| 5 | Wheel speed, signal | 8F |
| 5 | Wheel speed, signal | 17G |
| 6 | Ignition coils, actuation | 4G |
| 7 | Fuel injectors, actuation | 3F |
| 8 | Coolant temperature sensor, signal | 4F |
| 9 | Engine load, signal | 5E |
| B11/4 | Coolant temperature sensor | 3D |
| B28/22 | Left pressure sensor downstream of throttle valve | 4C |
| B28/23 | Right pressure sensor downstream of throttle valve | 4C |
| B70 | Crankshaft Hall sensor | 4J |
| CAN B | Interior CAN | 18B |
| CAN C | Engine CAN | 11F |
| CAN C1 | Drive train CAN | 11F |
| CAN C1 | Drive train CAN | 11H |
| CAN E1 | Chassis CAN 1 | 15D |
| CAN E1 | Chassis CAN 1 | 18F |
| G1 | On-board electrical system battery | 6K |
| M16/60 | Left throttle valve actuator | 7A |
| M16/60m1 | Left throttle valve actuator motor | 7B |
| M16/60r1 | Left actual value potentiometer 1 | 7B |
| M16/60r2 | Left actual value potentiometer 2 | 7B |
| M16/61 | Right throttle valve actuator | 7B |
| M16/61m1 | Right throttle valve actuator motor | 7C |
| M16/61r1 | Right actual value potentiometer 1 | 7C |
| M16/61r2 | Right actual value potentiometer 2 | 7C |
| N10/1 | Front SAM control unit with fuse and relay module | 10C |
| N10/1kN | Engine circuit 87 relay | 8C |
| N127 | Drivetrain control unit | 15E |
| N15/13 | Double clutch transmission control unit | 11K |
| N22/1 | Climate control control unit | 20B |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N30/4 | Electronic Stability Program control unit | 20F |
| N73 | Electronic ignition switch control unit | 15B |
| R4 | Spark plugs | 2K |
| T4 | Cylinder 1+2 ignition coil | 3H |
| T4/1 | Cylinder 3+4 ignition coil | 3H |
| T4/2 | Cylinders 5+6 ignition coil | 3H |
| T4/3 | Cylinders 7+8 ignition coil | 3H |
| Y76/1 | Cylinder 1 fuel injector | 1E |
| Y76/2 | Cylinder 2 fuel injector | 1E |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
| Y76/5 | Cylinder 5 fuel injector | 1F |
| Y76/6 | Cylinder 6 fuel injector | 1F |
| Y76/7 | Cylinder 7 fuel injector | 1G |
| Y76/8 | Cylinder 8 fuel injector | 1G |
