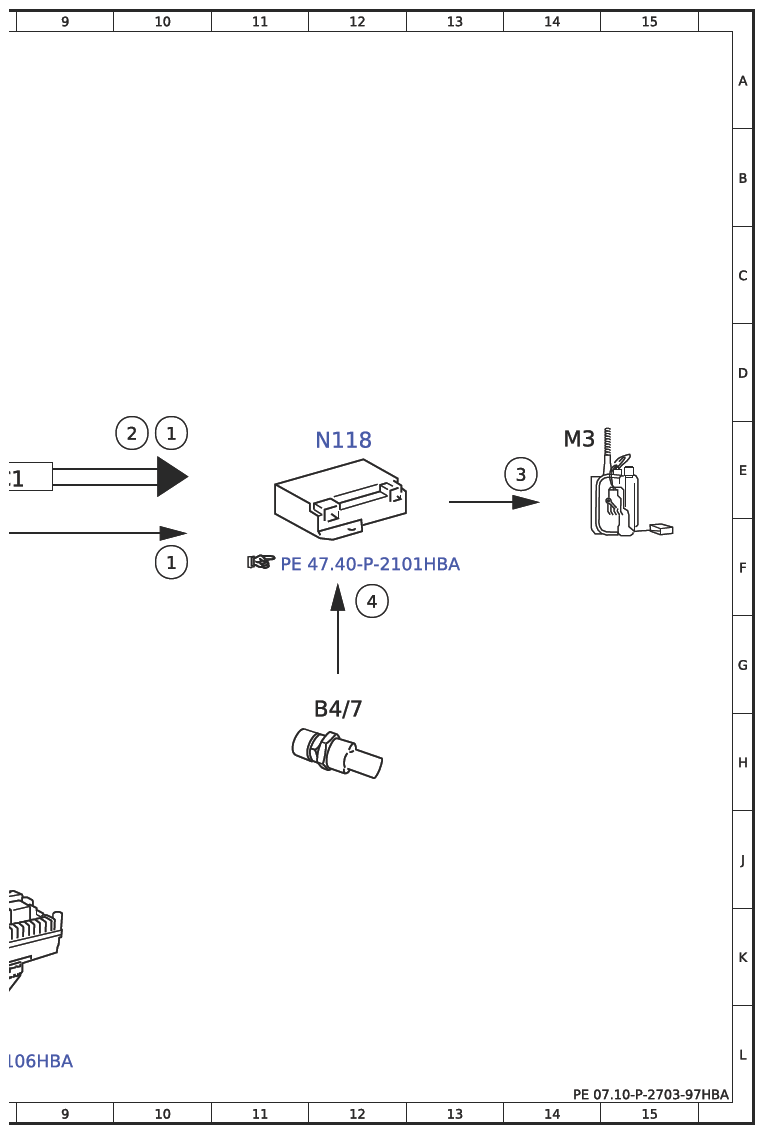

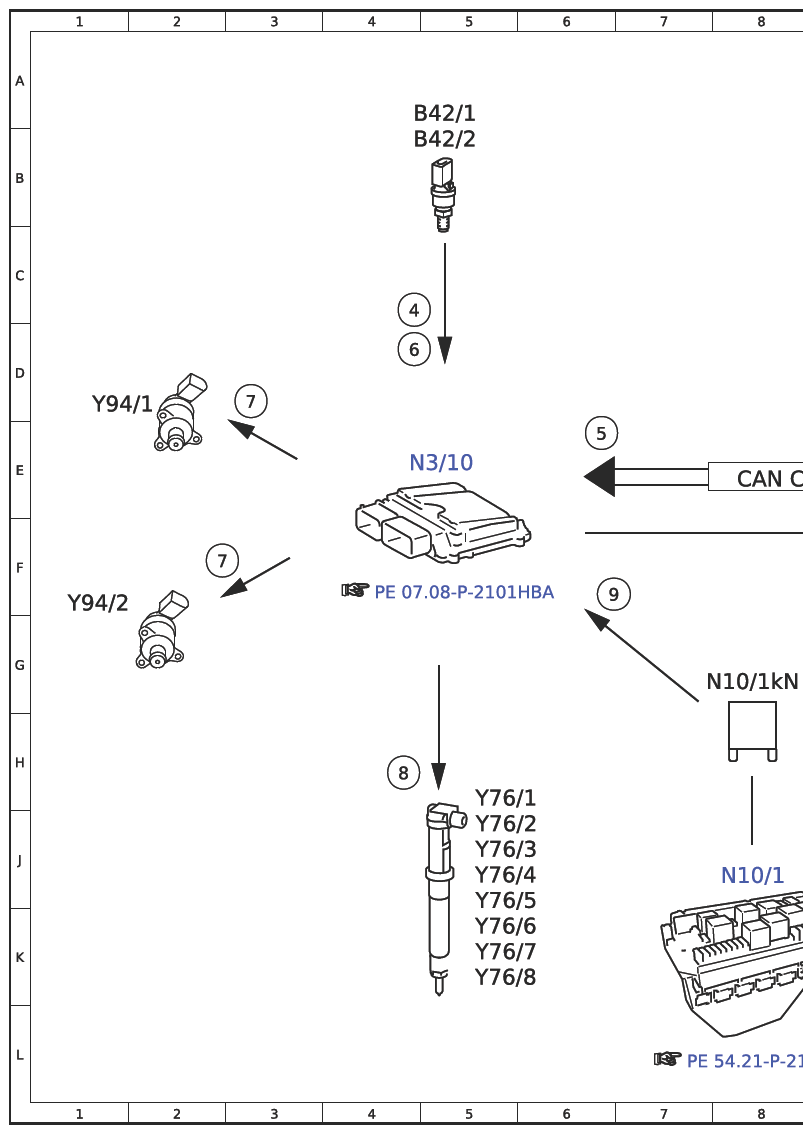

Electrical Function Schematic For Fuel Supply - PE07.10-P-2703-97HBA
Engine 178.9 In Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel pump, request ON | 10E |
| 1 | Fuel pump, request ON | 10F |
| 2 | Fuel pump, specified pressure request | 10E |
| 3 | Fuel pump, actuation | 14E |
| 4 | Fuel pressure, signal | 12F |
| 4 | Fuel pressure, signal | 4C |
| 5 | Fuel pressure, status | 6E |
| 6 | Fuel temperature, signal | 4D |
| 7 | Quantity control valve, actuation | 3D |
| 7 | Quantity control valve, actuation | 2F |
| 8 | Fuel injectors, actuation | 4H |
| 9 | Circuit 87, status | 6F |
| B4/7 | Fuel pressure sensor | 12H |
| B42/1 | Right fuel pressure and temperature sensor | 4A |
| B42/2 | Left fuel pressure and temperature sensor | 4B |
| CAN C1 | Drive train CAN | 8E |
| M3 | Fuel pump (FP) | 14E |
| N10/1 | Front SAM control unit with fuse and relay module | 8J |
| N10/1kN | Engine circuit 87 relay | 8G |
| N118 | Fuel pump control unit | 12E |
| N3/10 | ME-SFI [ME] control unit | 5E |
| Y76/1 | Cylinder 1 fuel injector | 5H |
| Y76/2 | Cylinder 2 fuel injector | 5J |
| Y76/3 | Cylinder 3 fuel injector | 5J |
| Y76/4 | Cylinder 4 fuel injector | 5J |
| Y76/5 | Cylinder 5 fuel injector | 5J |
| Y76/6 | Cylinder 6 fuel injector | 5K |
| Y76/7 | Cylinder 7 fuel injector | 5K |
| Y76/8 | Cylinder 8 fuel injector | 5K |
| Y94/1 | Left quantity control valve | 1D |
| Y94/2 | Right quantity control valve | 1F |
