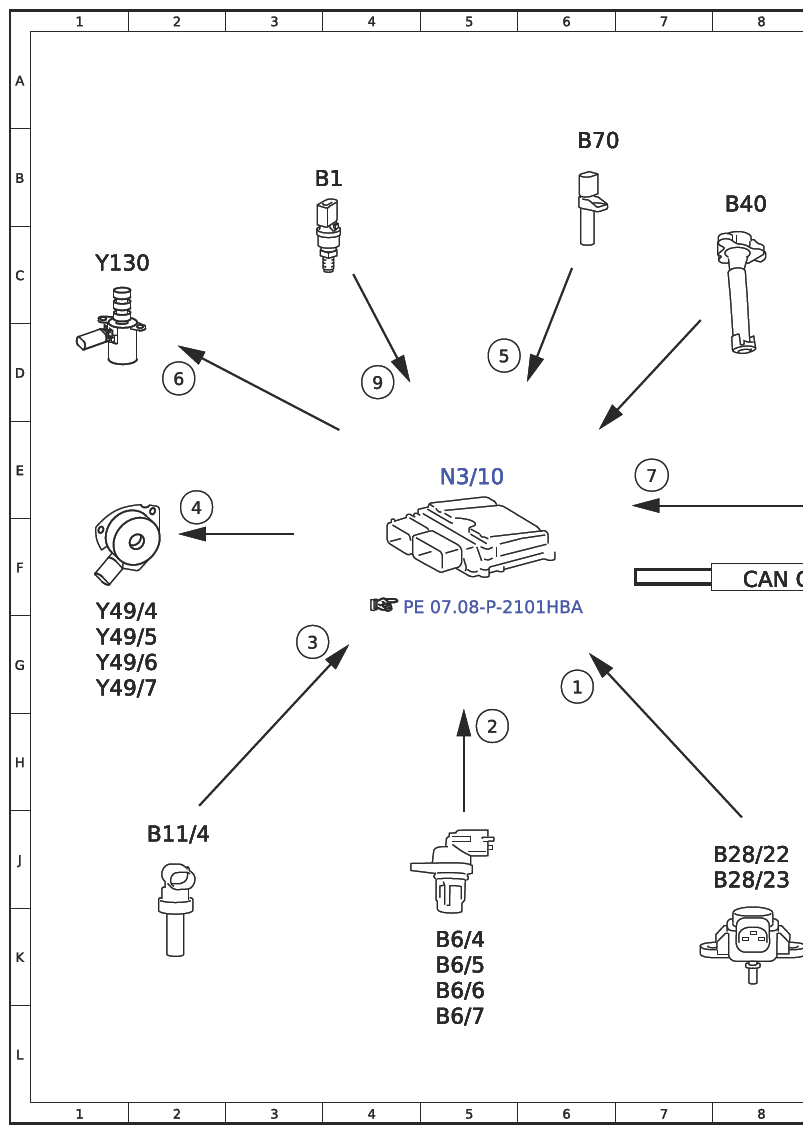

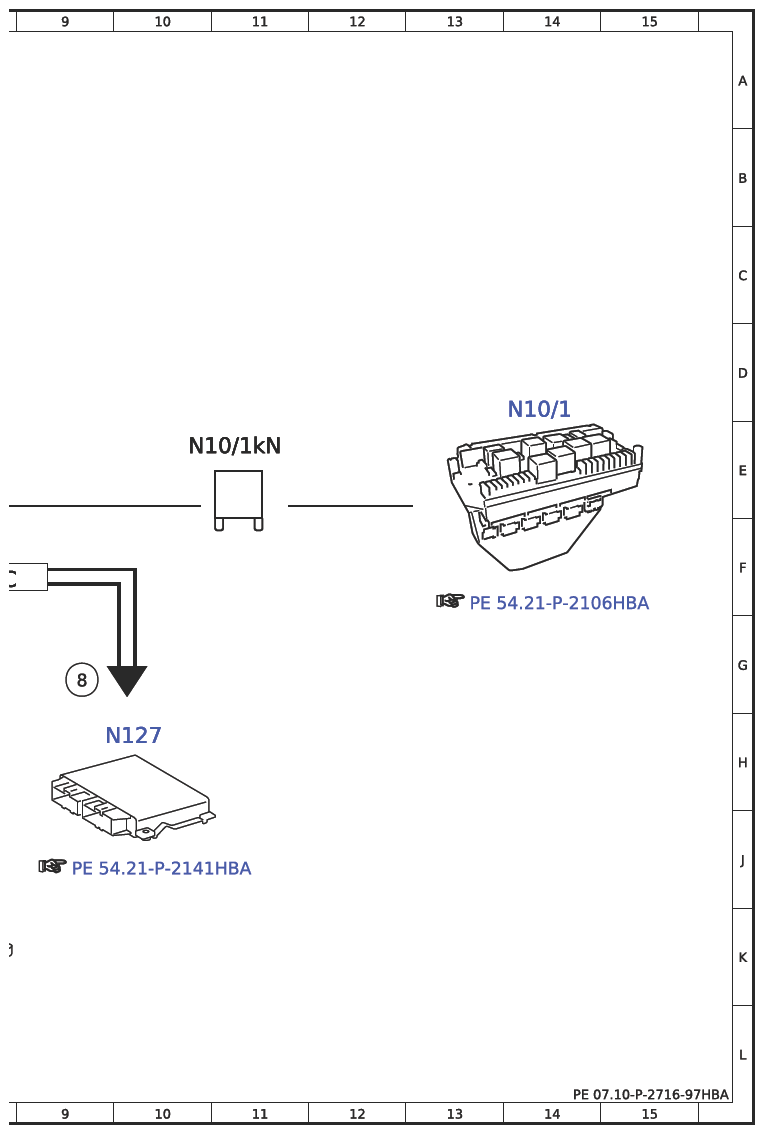

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97HBA
Engine 178.9 In Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 6G |
| 2 | Camshaft Hall sensor, signal | 5H |
| 3 | Coolant temperature sensor, signal | 3G |
| 4 | Camshaft solenoids, actuation | 2E |
| 5 | Engine speed, signal | 5D |
| 6 | Engine oil pump valve, actuation | 2D |
| 7 | Circuit 87, status | 7E |
| 8 | Engine running, signal | 9G |
| 9 | Oil temperature, signal | 4D |
| B1 | Engine oil temperature sensor | 4B |
| B11/4 | Coolant temperature sensor | 2J |
| B28/22 | Left pressure sensor downstream of throttle valve | 8J |
| B28/23 | Right pressure sensor downstream of throttle valve | 8J |
| B40 | Oil sensor (oil level, temperature and quality) | 8B |
| B6/4 | Left intake camshaft Hall sensor | 5K |
| B6/5 | Right intake camshaft Hall sensor | 5K |
| B6/6 | Left exhaust camshaft Hall sensor | 5K |
| B6/7 | Right exhaust camshaft Hall sensor | 5L |
| B70 | Crankshaft Hall sensor | 6B |
| CAN C | Engine CAN | 8F |
| N10/1 | Front SAM control unit with fuse and relay module | 14D |
| N10/1kN | Engine circuit 87 relay | 11E |
| N127 | Drivetrain control unit | 10H |
| N3/10 | ME-SFI [ME] control unit | 5E |
| Y130 | Engine oil pump valve | 1C |
| Y49/4 | Left intake camshaft solenoid | 1G |
| Y49/5 | Right intake camshaft solenoid | 1G |
| Y49/6 | Left exhaust camshaft solenoid | 1G |
| Y49/7 | Right exhaust camshaft solenoid | 1G |
