Attach/Remove Retaining Lock For Engine - AR03.30-P-1600-06MNB

Engine 178 in model 190

Fig 1: Identifying Ring Wrench (177 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Retaining Lock (112 589 03 40 00)

Courtesy of MERCEDES-BENZ USA

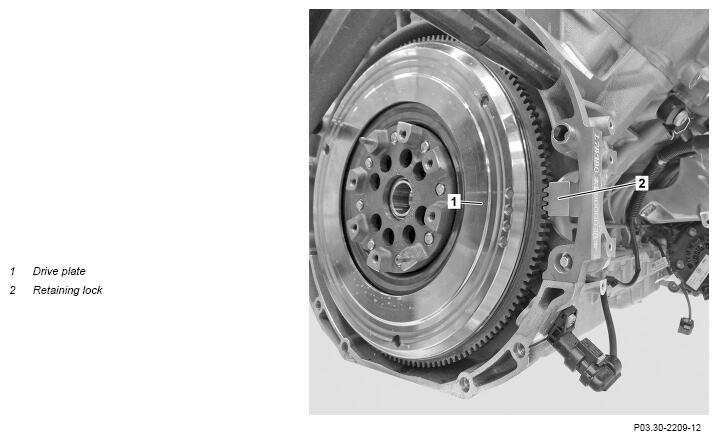

1. Turn engine at center bolt of crankshaft with the box wrench in direction of engine rotation and, in doing so, check the toothing of the ring gear of clutch plate (1) for damage.

   Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench.

   Otherwise, damage to the engine or even failure of the engine may occur.

   If damage is present:

   ↓

   Install new drive plate (1).

2. Insert retaining lock (2) into starter opening.

   If necessary, continue turning engine at center bolt of crankshaft with the box wrench in direction of engine rotation until retaining lock (2) engages.

3. Remove in the reverse order.
