Remove/Install Turbochargers Oil Circuit Feed Line - AR09.40-P-6040MNJ
Engine 178.9 in model 190.381
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. | AS20.00-Z-0001-01A | |
| Wear protective gloves, protective clothing and safety glasses. | |||
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||

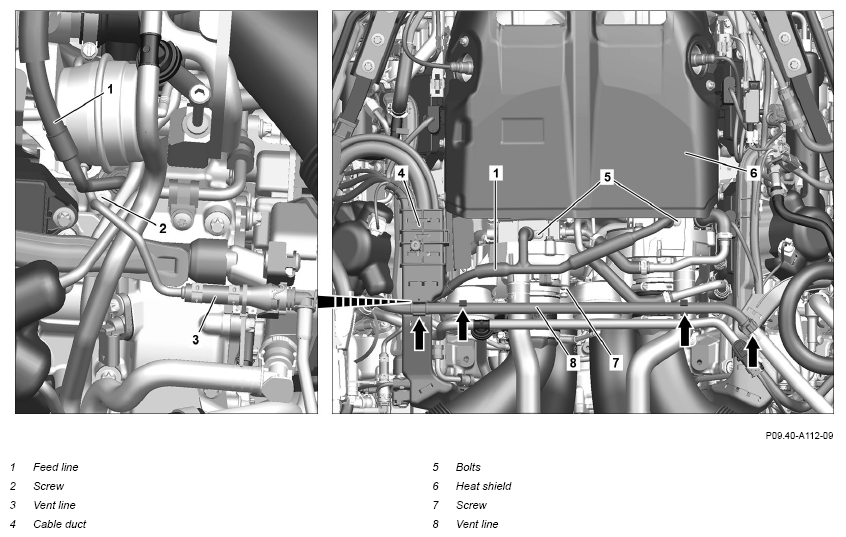

| 1 | Remove heat shield (6). | AR09.40-P-6044MNJ | |
| 2 | Remove bleed line (8) (arrows). | ||
| 3 | Remove cable duct (4). | *BA15.18-P-1001-01G | |
| 4 | Remove screw (7) at right exhaust gas turbocharger. | *BA09.40-P-1002-01ZA | |
| 5 | Remove screws (5). | *BA09.40-P-1002-01ZA | |
| 6 | Remove bleed line (3) and place to one side. | AR20.20-P-7441-01RQ | |
| 7 | Remove screw (2). | *BA09.40-P-1002-01ZA | |
| 8 | Remove feed line (1) and seal openings with suitable stop plugs. | ||
| Specified Engine oils for Cars, Vans (service) - Overview | BB00.40-P-0223-02A | ||
| Fig 2 | |||
| Fig 1 | |||
| 9 | Install in the reverse order. | ||
| Check | |||
| 10 | Check Engine oil level and correct if necessary. | ||
| AP18.00-P-1811MP | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform Engine test run. While doing so, check Engine for proper operation and leak tightness. |
TURBOCHARGER
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA09.40-P-1002-01ZA | Bolt, oil pressure line to turbocharger/cylinder head | Nm | 9 |
ENGINE WIRING HARNESS
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA15.18-P-1001-01G | Bolt, Engine wiring harness to cylinder head cover | Nm | 9 |
