Remove/Install Cooling System Fan Unit - AR20.40-P-5050MNB
Engine 178 in model 190 (except 190.381)
| Remove/install | |||
| 1 | Open engine hood | AR88.40-P-1000RG | |
| 2 | Remove upper engine cover | ||

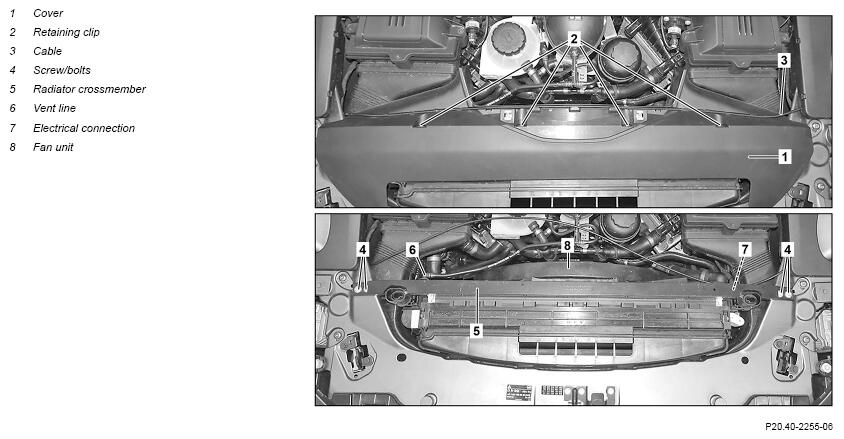

| 3 | Unclip cable (3) of engine hood at cover (1) | ||
| 4 | Unclip retaining clips (2) and remove cover (1) | ||
| 5 | Remove screws/bolts (4) and remove radiator crossmembers (5) | *BA62.30-P-1001-04C | |
| 6 | Disconnect electrical connection (7) | ||
| 7 | Detach vent line (6) on cooler | AR20.20-P-7441-01RQ | |
| 8 | Remove fan unit (8) upwards | ||
| 9 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check engine cooling system for proper operation |
RADIATOR SUPPORT
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA62.30-P-1001-04C | Bolt, radiator support to longitudinal member | Nm | 20 |
