Check Main Circuit Coolant Level - AP20.30-P-2050A

Engine 178 in model 190

Shown on model 190.378

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Preparatory activity
1	Open hood.
			AR88.40-P-1000RG
	Remove
2	Remove engine compartment lining.
	Check

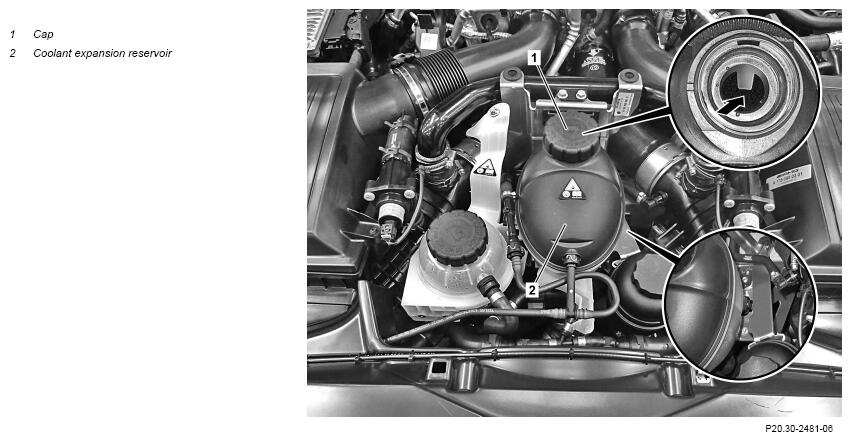

3	Check coolant level in light-dark boundary area of coolant expansion reservoir (2).	For coolant expansion reservoirs (2) with transparent tank lower part.
		If the coolant level is above the light-dark boundary, ↓ Coolant level correct, check completed, continue with operation step 7.
		If the coolant level is below the light-dark boundary, ↓ check coolant level in coolant expansion reservoir (2), continue with operation step 4.
	Remove
4	Unscrew the cap (1) of the coolant expansion reservoir (2).	If the coolant level is below the light-dark boundary.
	Check
5	Check coolant level.	If the coolant level is below the light-dark boundary.
		With a cold engine, the coolant level must reach the marking (arrow) in the coolant expansion reservoir (2). When coolant is warm: approx. 1 cm (0.39 inch) above marking.
		If the coolant level is too low, ↓ Check cooling system for leak tightness and coolant for antifreeze content.
		Coolant specifications	BB00.40-P-0310-01A
		Anticorrosion/antifreeze agents (Sheet 325.0)	BB00.40-P-0325-00A
		After obtaining special order.
		Engine 178 in model 190 except code M032 (Black Series version) Coolant mixing ratio	*BF20.00-P-1001-04A
		Engine 178 in model 190.381 Cooling system	*BF20.00-P-1001-02U
	Install
6	Seal coolant expansion reservoir (2) with cap (1).	If the coolant level is below the light-dark boundary.
7	Install engine compartment lining.
	Finishing activity
8	Close hood.
			AR88.40-P-1000RG

COOLING SYSTEM

Number	Designation				Engine 178 in model 190.381
BF20.00-P-1001-02U	Cooling system	Workshop replacement amount	Main circuit	Liter	≈ 12, 6
			Low-temperature circuit	Liter	≈ 9, 1
		Antifreeze/water	Down to -37°C
			-38°C and below
			Specifications for Operating Fluids, sheet		-
			Specifications for Operating Fluids, sheet		-
			Specifications for Operating Fluids, sheet		-
			-25_°C		40/60
			Specifications for Operating Fluids, sheet		BB00.40-P-0325-06A
			Specifications for Operating Fluids, sheet		BB00.40-P-0326-06A

COOLANT MIXING RATIO

Number	Designation				Engine 178 in model 190.381	All engines, except engine 178 in model 190.381
BF20.00-P-1001-04A	Coolant mixing ratio	Antifreeze/water	Up to -25°C	%	40/60	-
			Up to -37°C	%	-	50/50
			As of -38°C	%	-	55/45
			Overview and specifications sheet		BB00.40-P-0310-01A	BB00.40-P-0310-01A
			References to sheet specification		BB00.40-P-0310ZZ	BB00.40-P-0310ZZ
